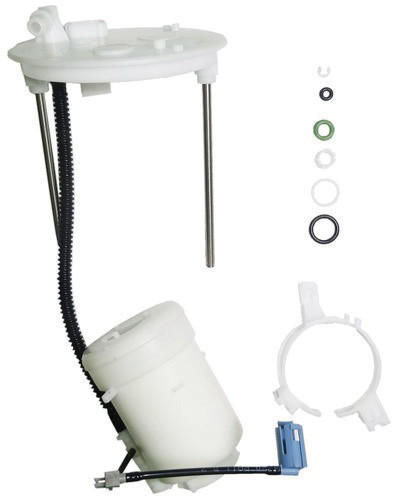

FUEL FILTER (IN-TANK) » FS7091
Feedback information
Specification
Length 1/ Length 2
260
Outer Diameter 1/ Outer Diameter 2
118.5
Diameter 1/ Diameter 2 [mm]
73.5
Inner Diameter[mm]
44.4
Cross reference
SUZUKI
15100-63J02
SUZUKI
15100-63J20
SUZUKI
15100-71L00
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
SUZUKI » Swift
SUZUKI » Swift III
| 05.07~09.10 | 1200 | K12B | ZC71S JPN | C932J | A964J | FS7091 | AC933J | JT21003K |
| 11.04~12.10 | 1300 | M13A | EZC11S RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.04~04.08 | 1300 | M13A | RS413-2 | C933J | A971JA9505 | FS7091 | AC933J | |
| 03.04~04.08 | 1300 | M13A | RS413-3 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 03.08~01.11 | 1300 | M13A | RS413-4 | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~12.10 | 1300 | M13A | ZC11S JPN | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~09.10 | 1300 | M13A | ZD11S | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.05~12.07 | 1500 | M15A | JS2ZC21S RS415-2 RHD | C933J | A971J | FS7091 | AC933J | |
| 01.04~03.08 | 1500 | M15A | RS415-1 LHD | C933J | A971JA9505 | FS7091 | AC933J | JT516K |
| 01.04~03.08 | 1500 | M15A | RS415-3 LHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 03.08~01.11 | 1500 | M15A | RS415-4 LHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~09.10 | 1500 | M15A | ZC21S | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.03~12.07 | 1500 | M15A | ZC21S RS415-1 LHD | C933J | A971J | FS7091 | AC933J | |
| 01.03~12.07 | 1500 | M15A | ZC21S RS415-1 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 12.07~01.11 | 1500 | M15A | ZC21S RS415-3.4 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~09.10 | 1500 | M15A | ZD21S | C933J | A971J | FS7091 | AC933J | |
| 01.05~09.10 | 1600 | M16A | EZC31S | C933J | A971J | FS7091 | AC933J | JT516K |
| 09.05~09.10 | 1600 | M16A | ZC31S JPN | C933J | A971J | FS7091 | AC933J | JT516K |
SUZUKI » Swift IV
| 09.10~11.16 | 1200 | K12B | ZC72S JPN | C932J | A29001 | FS7090FS7091 | AC29001 | JT29001K |
| 03.10~ | 1400 | K14B | AZG414 | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.10~ | 1400 | K14B | ZC82S LHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.10~03.13 | 1400 | K14B | ZC82S RHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.13~02.17 | 1400 | K14B | ZC82S RHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 12.11~ | 1600 | M16A | EZC32S | C933J | A243PU | FS7091 | AC29001 | JT516K |
| 12.11~ | 1600 | M16A | ZC3B | C933J | A243PU | FS7091 | AC29001 | JT516K |
