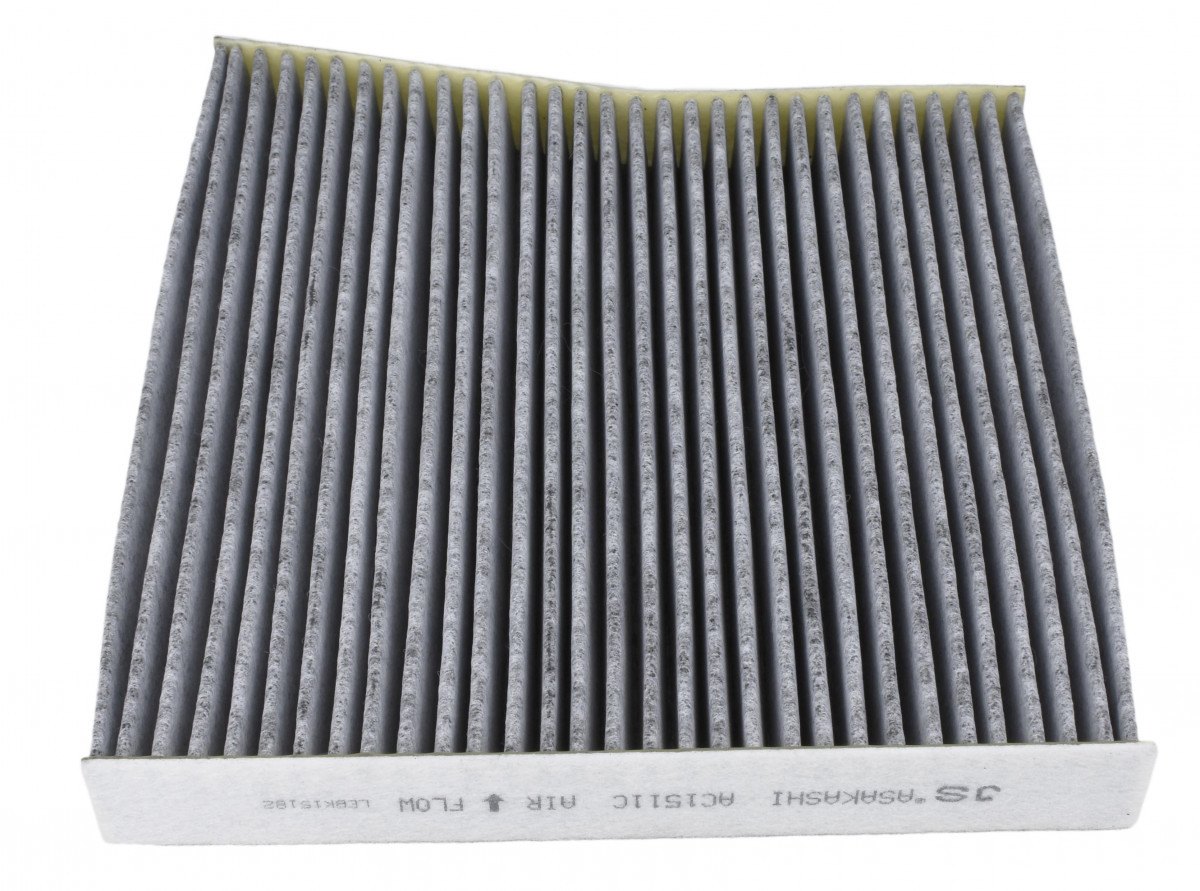

CABIN FILTER » AC1511C

Feedback information

Specification

Length
218
Width
215
Structure Material
Activated Carbon
Thickness
28
Width2
188

Variation

AC1511[JS]

Cross reference

TOYOTA
014520-2650
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

TOYOTA   »   Hiace

01.05~02.14 2500 2KD-FTV KDH200R C111T A184J FE193J AC1511 JT436K
01.05~ 2500 2KD-FTV KDH222L C111T A184JA1530 FE193JFE0053 AC1511 JT436K
08.04~05.12 2500 2KD-FTV KDH222R C111T A184J FE193J AC1511 JT436K
02.06~01.14 2500 2KD-FTV KDS200 C111T A184J FE193J AC1511AC108J
01.05~ 3000 1KD-FTV KDH201R C111T A1514 FE193J AC109JAC1511 JT436K
01.05~02.14 3000 1KD-FTV KDH223R C111T A1514 FE193J AC1511AC109J

TOYOTA   »   Hiace Commuter

01.05~ 2500 2KD-FTV KDH222R C111T A184J FE0053FE193J AC1511 JT436K
07.04~08.10 2500 2KD-FTV KDH227B C111T A184J FE193J AC109JAC1511

TOYOTA   »   Hiace Regius

08.04~08.07 2500 2KD-FTV KDH200K C111T A184J FE193J AC1511 JT436K
08.04~08.07 2500 2KD-FTV KDH200V C115J A184J FE193J AC1511 JT436K
01.05~09.07 2500 2KD-FTV KDH220K C111T A184J FE193J AC1511 JT436K
01.05~09.07 2500 2KD-FTV KDH222B C111T A184J FE193J AC1511 JT436K
09.07~ 3000 1KD-FTV KDH201K C111T A1514 FE193J AC1511 JT436K
09.07~11.17 3000 1KD-FTV KDH221K C111T A1514 FE193J AC1511

TOYOTA   »   Hiace Van

01.05~02.14 3000 1KD-FTV KDH221R C111T A1514 FE193J AC1511AC109J

TOYOTA   »   Hilux

05.15~ 2400 2GD-FTV GUN112 C111T A1531 FE0067 AC1511
05.15~ 2800 1GD-FTV GUN136L C111T A1531 FE0067 AC1511AC111C

Exemption from liability: the catalog data is advisory and can be used for reference only
