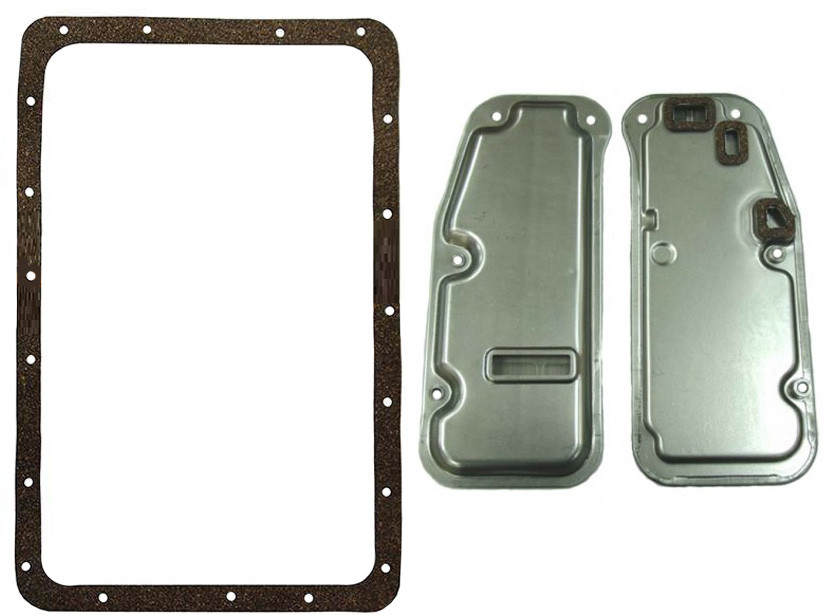

TRANSMISSION FILTER » JT436K
Feedback information
Specification
Height (mm)
26
Size A
305
Size B
135
Transmission Numbers
A341E
Cross reference
HYUNDAI
46306-4A110
TOYOTA
35330-30060
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HYUNDAI » H1 Starex
| 09.04~05.07 | 2500 | D4CB A1 | WAGON LONG - 12P | C109J | A9307 | FC9303 | AC9303 | JT436K |
| 06.00~09.04 | 2500 | D4CB A1 | WAGON SHORT - 9P | C109J | A9307 | FC9301 | JT436K |
HYUNDAI » H1 Starex [H1 Cargo] 07
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P LHD | C304J | A9613 | PI1023FS9308 | AC9405SET | JT436K |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P RHD | C304J | A9613 | PI1023FS9308 | AC9405SET | JT436K |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 9P LHD | C304J | A9613 | PI1023FS9308 | AC9405SET | JT436K |
TOYOTA » Crown Comfort
| 10.02~08.08 | 2000 | 1G-FE | GBS12 | C111T | A192J | FR1023PI1004FS6042 | AC108C | JT436K |
| 09.07~01.18 | 2000 | 1TR-FE | TSS13Y | OE116J | A173J | FS6042FR21001PI1009 | JT436K | |
| 08.08~01.18 | 2000 | 1TR-FPE | TSS10 | OE116J | A173J | JT436K | ||
| 08.08~01.18 | 2000 | 1TR-FPE | TSS11 | OE116J | A173J | AC108C | JT436K |
TOYOTA » Dyna
| 08.04~09.07 | 2500 | 2KD-FTV | KDY220 | C111T | A147J | FC158HSF2103 | JT436K | |
| 08.04~09.07 | 2500 | 2KD-FTV | KDY280 | C111T | A147J | FC158HSF2103 | JT436K | |
| 09.07~ | 3000 | 1KD-FTV | KDY221 | C111T | A147J | SF2103FC158H | AC933JAC1510 | JT436K |
| 07.10~ | 3000 | 1KD-FTV | KDY231 | C111T | A147J | SF2103FC158H | AC933JAC1510 | JT436K |
| 01.07~ | 3000 | 1KD-FTV | KDY281 | C111T | A147J | FC158JSF2103 | JT436K |
TOYOTA » Hiace
| 01.05~02.14 | 2500 | 2KD-FTV | KDH200R | C111T | A184J | FE193J | AC1511 | JT436K |
| 01.05~09.13 | 2500 | 2KD-FTV | KDH202L | C111T | A184J | FE193J | JT436K | |
| 01.05~ | 2500 | 2KD-FTV | KDH222L | C111T | A184JA1530 | FE193JFE0053 | AC1511 | JT436K |
| 08.04~05.12 | 2500 | 2KD-FTV | KDH222R | C111T | A184J | FE193J | AC1511 | JT436K |
| 01.05~01.21 | 2700 | 2TR-FE | TRH201R | C111TOE116J | A1530A170JA1514 | FS2128FS2104 | AC109J | JT436K |
| 01.05~ | 2700 | 2TR-FE | TRH203L | C111T | A1514A170J | FS2104FS2128 | AC109J | JT436K |
| 01.05~ | 2700 | 2TR-FE | TRH221L | C111T | A170JA1514 | FS2104 | JT436K | |
| 01.05~02.14 | 2700 | 2TR-FE | TRH221L | C111T | A170J | FS2104 | JT436K | |
| 01.05~02.14 | 2700 | 2TR-FE | TRH221R | C111T | A170J | FS2104 | JT436K | |
| 08.04~08.10 | 2700 | 2TR-FE | TRH221W | OE116J | A170J | FS2104 | JT436K | |
| 01.05~ | 2700 | 2TR-FE | TRH223B | C111T | A170JA1514 | FS2104FS2128 | AC109J | JT541KJT436K |
| 08.05~ | 2700 | 2TR-FE | TRH223L | C111T | A1514A170J | FS2104 | AC109J | JT436K |
| 08.04~ | 2700 | 2TR-FE | TRH229W | OE116J | A170JA1530A1514 | FS2104FS2128 | AC108J | JT541KJT436K |
| 01.05~ | 3000 | 1KD-FTV | KDH201R | C111T | A1514 | FE193J | AC109JAC1511 | JT436K |
TOYOTA » Hiace Commuter
| 01.05~ | 2500 | 2KD-FTV | KDH222R | C111T | A184J | FE193JFE0053 | AC1511 | JT436K |
| 01.05~12.16 | 2700 | 2TR-FE | TRH213L | C111T | A170J | FS2104 | AC109J | JT436K |
| 01.06~12.13 | 2700 | 2TR-FE | TRH213R | C111T | A170J | FS2104 | AC109J | JT436K |
| 09.07~ | 3000 | 1KD-FTV | KDH223B | C111T | A1514 | FE193J | AC109J | JT436K |
TOYOTA » Hiace Regius
| 08.04~08.07 | 2500 | 2KD-FTV | KDH200K | C111T | A184J | FE193J | AC1511 | JT436K |
| 08.04~08.07 | 2500 | 2KD-FTV | KDH200V | C115J | A184J | FE193J | AC1511 | JT436K |
| 08.03~12.13 | 2500 | 2KD-FTV | KDH205V | C111T | A184J | FE193J | AC108J | JT436K |
| 01.05~09.07 | 2500 | 2KD-FTV | KDH220K | C111T | A184J | FE193J | AC1511 | JT436K |
| 01.05~09.07 | 2500 | 2KD-FTV | KDH222B | C111T | A184J | FE193J | AC1511 | JT436K |
| 01.05~08.07 | 2500 | 2KD-FTV | KDH225K | C111T | A184J | FE193J | JT436K | |
| 01.05~08.10 | 2500 | 2KD-FTV | KDH227B | C111T | A184J | FE193J | JT436K | |
| 09.07~ | 2700 | 2TR-FE | TRH211K | OE116J | A170JA1514 | FS2104 | AC108J | JT541KJT436K |
| 08.04~ | 2700 | 2TR-FE | TRH214W | OE116J | A1514A170J | FS2104 | AC108J | JT436KJT541K |
| 09.07~ | 2700 | 2TR-FE | TRH216K | OE116J | A170JA1514 | FS2104 | AC108J | JT541KJT436K |
| 08.04~12.13 | 2700 | 2TR-FE | TRH219W | OE116J | A1514A170J | FS2104 | AC108J | JT436K |
| 01.05~ | 2700 | 2TR-FE | TRH221K | OE116J | A1514A170J | FS2128FS2104 | JT436KJT541K | |
| 01.05~ | 2700 | 2TR-FE | TRH224W | OE116J | A170JA1514A1530 | FS2104 | JT436KJT541K | |
| 01.05~ | 2700 | 2TR-FE | TRH226 | OE116J | A170JA1514A1530 | FS2104FS6303A | AC108J | JT541KJT436K |
| 01.05~ | 2700 | 2TR-FE | TRH228B | OE116J | A1514A170J | FS2104 | AC108J | JT541KJT436K |
| 09.07~ | 3000 | 1KD-FTV | KDH201K | C111T | A1514 | FE193J | AC1511 | JT436K |
| 09.07~10.17 | 3000 | 1KD-FTV | KDH201V | C111T | A1514 | FE193JFE0053 | AC108J | JT436K |
| 09.07~ | 3000 | 1KD-FTV | KDH206K | C111T | A1514 | FE193J | AC108J | JT436K |
| 07.10~ | 3000 | 1KD-FTV | KDH206V | C111T | A1514 | FE193J | AC108J | JT436K |
| 08.09~ | 3000 | 1KD-FTV | KDH211K | C111T | A1514 | FE193J | AC108J | JT436K |
