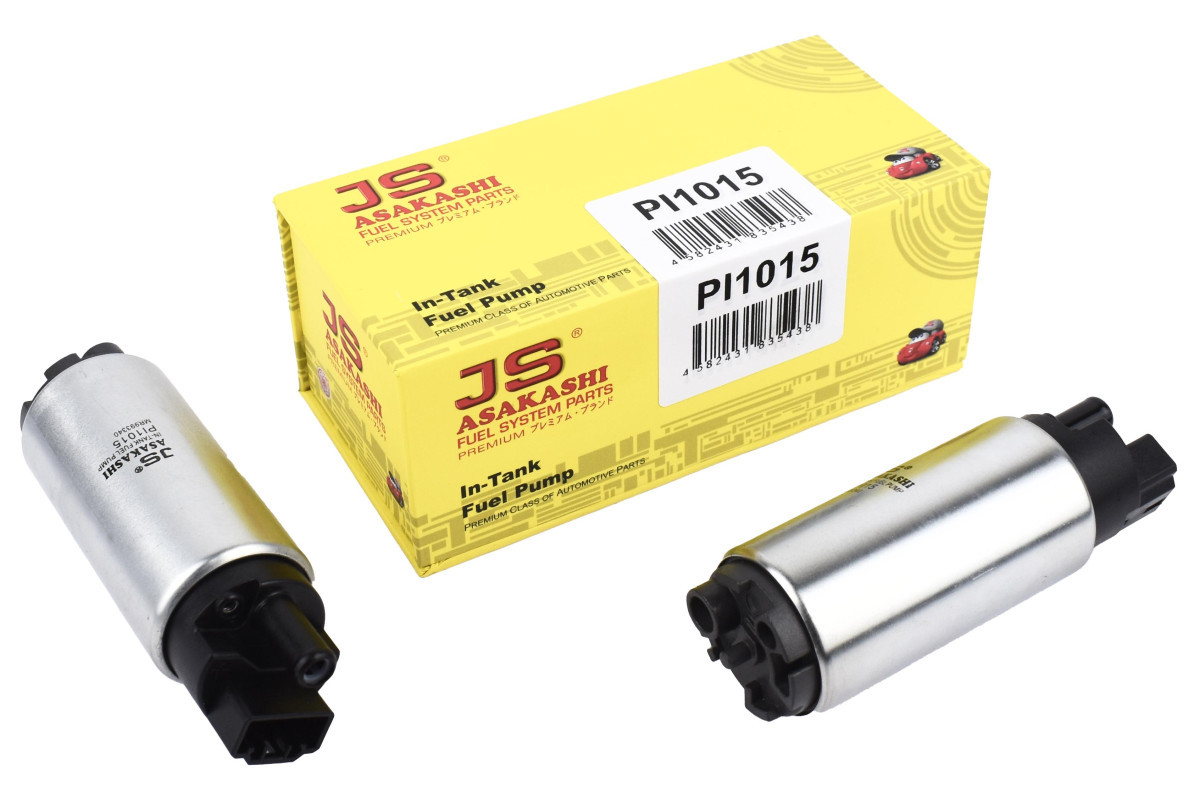

IN-TANK FUEL PUMP » PI1015

Feedback information
PI1015

Specification

Length 1/ Length 2
115
Diameter 1[mm]
38
Diameter 2[mm]
32
Pressure [Bar]
3
Flow [L/h]
95

Cross reference

MITSUBISHI
MR993340
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

MITSUBISHI   »   Colt

10.02~10.04 1300 4G19 Z26A C415J A3021 PI1015FS6508 AC302JAC303J JT217K

MITSUBISHI   »   Montero

02.00~12.06 3000 6G72 V73W GCC C307J A3017 FS6500PI1015   JT208K

MITSUBISHI   »   Pajero

08.00~09.06 3000 6G72 V63W C307J A3017 PI1015FS6500   JT208K
08.00~09.06 3000 6G72 V73W C307J A3017 PI1015FS6500 AC3504R JT208K

MITSUBISHI   »   Pajero / Montero

05.03~01.07 3000 6G72 V63W GL C307J A3017 FS6500PI1015   JT208K
02.00~12.06 3000 6G72 V73W C307J A3017 FS6500PI1015 AC3504R JT208K
01.99~11.05 3500 6G74 V65W C307J A3017 FS6500PI1015 AC3504R JT210K1
01.99~11.05 3500 6G74 V75W C307J A3017 FS6500PI1015   JT208KJT210K1

MITSUBISHI   »   Shogun

01.99~11.05 3500 6G74 V75W C307J A3017 FS6500PI1015   JT210K1JT208K
