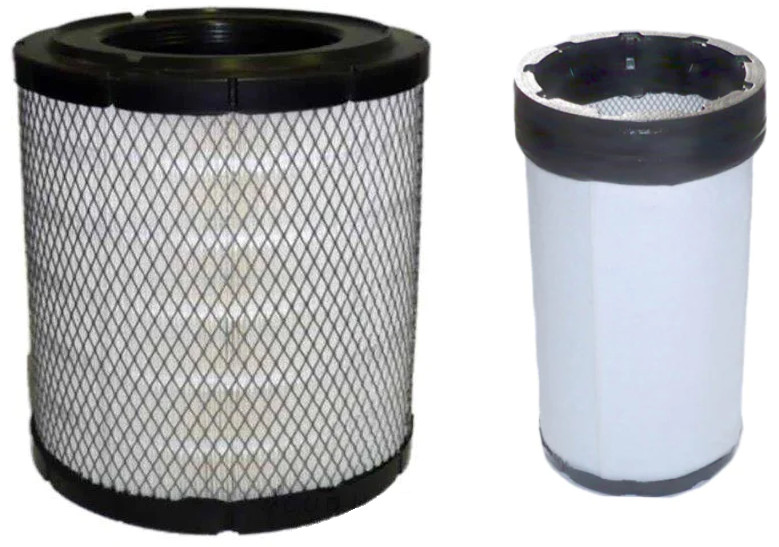

AIR FILTER » A1004SET

Feedback information
A1004SET

Specification

Internal Diameter 1
132
Internal Diameter 2
110
External Diameter 1
235
External Diameter 2
135
Height 1 (mm)
260
Height 2 (mm)
250

Variation

A1004[JS] A1004IN[JS]

Cross reference

HINO
17801-0U020
HINO
17801-78020
HINO
17801-78030
TOYOTA
17801-0U020
TOYOTA
17801-78020
TOYOTA
17801-78030
TOYOTA
17801-78060
TOYOTA
SUJ17T0100
TOYOTA
SUJ17T0101
TOYOTA
SUJ17T0101+SUJ17T0100
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

DAIHATSU   »   Delta

08.99~06.04 4100 15B-FTE BU420 C115J A1004 FC158J
05.99~06.04 4600 S05C XZU382 C607JC519U A190JA1004 FC158H
05.99~06.04 4600 S05C XZU412 C607JC519U A1004 FC158H
05.99~06.04 4900 S05D XZU411 C607JC519U A190JA1004 FC158H
05.99~06.04 4900 S05D XZU421 C607JC519U A190JA1004 FC158H
05.99~06.03 5300 J05C XZU400A C519UC607J A1004 FC174J
05.99~06.04 5300 J05C XZU410 C519UC607J A1004 FC707J
05.99~06.04 5300 J05C XZU420 C519UC607J A1004 FC174J
05.99~06.04 5300 J05C XZU430 C607JC519U A1004 FC174JFC707J

HINO   »   DUTRO

10.03~10.06 4000 N04C-T XKU414M C519U A1004
10.03~10.06 4000 N04C-T XKU424M C519U A1004
06.04~10.06 4000 N04C-T XZU388M C607J A1004A1009 FE0020
06.04~10.06 4000 N04C-T XZU404M C607J A1004 FE0020
06.04~10.06 4000 N04C-T XZU404X C607J A1004 FE0020
10.03~10.06 4000 N04C-T XZU414M C607J A1004 FE0020
06.04~10.06 4000 N04C-T XZU424M C607J A1004 FE0020
10.06~01.08 4000 N04C-TJ XZU414M C608J A1004 FE0020
10.06~01.08 4000 N04C-TJ XZU424M C608J A1004 FE0020
10.06~07.11 4000 N04C-TJ XZU434M C608J A1004 FE0020
10.06~03.10 4000 N04C-TK XZU404M C608J A1004 FE0020
10.06~06.11 4000 W04D WU422L C608J A1004 FC607JFE26034
11.00~ 4100 15B-FNE XZU412M C115J A1004
06.02~ 4100 15B-FP XZU412M C115J A1004
05.99~07.01 4100 15B-FTE BU400M C115J A1004 FC158H
05.99~07.01 4100 15B-FTE BU410M C115J A1004 FC158H
05.99~07.01 4100 15B-FTE BU420M C115J A1004 FC158H
05.99~07.01 4100 15B-FTE BU426M C115J A1004 FC158H
05.99~07.01 4100 15B-FTE BU430M C115J A1004 FC158H
06.03~05.07 4100 1BZ-FPE BZU410M C115J A1004
05.99~12.07 4600 S05C XZU302E C519UC607J A190JA1004 FC158H
05.99~12.07 4600 S05C XZU382M C519UC607J A1004A190J FC158H
05.99~12.07 4600 S05C XZU402M C519UC607J A1004 FC158H
05.99~12.07 4600 S05C XZU412M C519UC607J A1004 FC158H
10.06~ 4700 J05D-T XZU413 C607J A1004 FE21001
06.04~10.06 4700 J05D-T XZU413M C602J A1004 FE0020
10.06~ 4700 J05D-T XZU423 C607J A1004 FE21001
01.05~10.06 4700 J05D-T XZU423M C607J A1004 FE21001FE0020
01.05~10.06 4700 J05D-T XZU433M C607J A1004 FE0020
05.99~06.04 4900 S05D XZU301E C519UC607J A190JA1004 FC158H
05.99~10.06 4900 S05D XZU401M C519UC607J A1004 FE0020FC158H
05.99~06.04 4900 S05D XZU411M C519UC607J A1004 FC158JFC158HFE0020
06.02~06.04 4900 S05D XZU421 C607J A1004 FC158J
05.99~10.06 4900 S05D XZU421M C519UC607J A1004 FC158HFE0020FC158J
05.99~06.04 5300 J05C XZU400M C519UC607J A1004 FC174JFC707J
05.99~06.04 5300 J05C XZU400X C519UC607J A1004 FC174JFC707J
05.99~06.04 5300 J05C XZU410M C519UC607J A1004 FC707JFC174J
05.99~06.04 5300 J05C XZU420M C519UC607J A1004 FC707JFC174J
05.99~06.04 5300 J05C XZU430M C519UC607J A1004 FC707J

TOYOTA   »   Dyna

10.03~06.11 4000 N04C XKU414 C608JC607J A1004 FE0020
10.03~06.11 4000 N04C XKU424 C607JC608J A1004 FE0020
06.04~06.11 4000 N04C XZU414 C608JC607J A1004 FE0020
06.04~10.06 4000 N04C XZU423L C608J A1004 FE0020
06.04~ 4000 N04C-T XZU424 C608J A1004 FE0020
10.01~02.08 4000 W04D WU410 C608J A1004 FE26034FC707J
10.01~02.08 4000 W04D WU410R C608J A1004 FC707JFE26034
11.00~06.02 4100 15B-CNG XZU412 C115J A1004
05.99~05.07 4100 15B-FTE BU400 C115J A1004 FC158JSF2103
05.99~06.04 4100 15B-FTE BU410 C115J A1004 FC158JSF2103   JT410K
05.99~06.04 4100 15B-FTE BU420 C115J A1004 FC158JSF2103   JT410K
05.99~06.04 4100 15B-FTE BU430 C115J A1004 SF2103FC158H   JT410K
07.99~10.06 4100 15B-FTE XZU320L C115J A1004 SF2103FC158H
05.99~06.04 4100 15BLPG XZU412 C115J A1004
06.03~05.07 4100 1BZ-FNE BZU410 C115J A1004
06.03~05.07 4100 1BZ-FPE BZU410 C115J A1004
06.04~06.11 4100 N04C XZU404 C607JC608J A1004 FE0020
06.04~06.11 4100 N04C XZU404A C608JC607J A1004 FE0020
10.06~ 4100 N04C XZU434 C608J A1004 FE0020
10.04~ 4100 N04C-TK XZU454 C608J A1004 FE0020
10.04~ 4100 N04C-TK XZU488 C608J A1004 FE0020
05.99~06.04 4600 S05C XZU382 C607JC519U A190JA1004 FC158HSF2103
05.99~06.04 4600 S05C XZU402 C607JC519U A1004 SF2103FC158H
05.99~06.04 4600 S05C XZU412 C519U A1004 SF2103FC158H
10.01~10.06 4600 S05C-TB XZU414L C602J A1004 FE26034
10.01~10.06 4600 S05C-TB XZU414R C608J A1004 FE0020FE26034
06.04~10.06 4700 J05D XZU423 C602J A1004 FE0020
06.04~10.06 4700 J05D-T XZU413 C602J A1004 FE0020
06.04~10.06 4700 J05D-T XZU433 C602J A1004 FE0020
05.99~10.06 4900 S05D XZU401 C607JC519U A1004 FC158HFE0020SF2103
05.99~10.06 4900 S05D XZU411 C607JC519U A1004 FC158HSF2103
05.99~10.06 4900 S05D XZU421 C519UC607J A1004 SF2103FC158HFE0020
05.99~06.04 5300 J05C XZU400 C519UC607J A1004 FC707J
05.99~06.04 5300 J05C XZU400A C607JC519U A1004 FC707J
05.99~06.04 5300 J05C XZU410 C607JC519U A1004 FC174J
05.99~06.04 5300 J05C XZU420 C519UC607J A1004 FC707J
10.00~02.08 5300 J05C XZU420R C607J A1004 FC707JFE26034
05.99~02.08 5300 J05C XZU430 C519U A1004 FC707J
05.99~06.04 5300 J05C XZU430R C519UC607J A1004 FC707J
