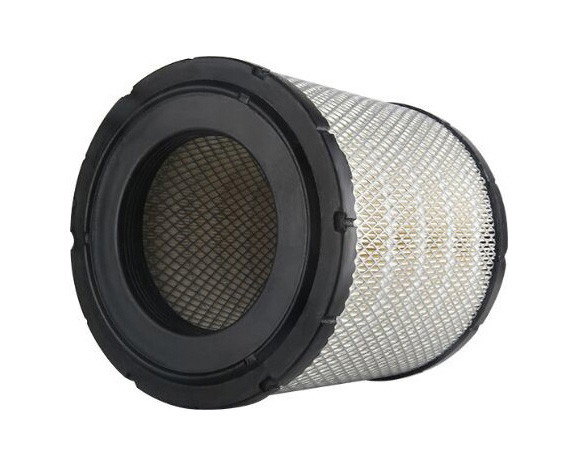

AIR FILTER » A1004
Feedback information
Specification
Height 1 (mm)
260
External Diameter 1
235
Internal Diameter 1
132
Height 2 (mm)
250
Variation
Cross reference
HINO
17801-0U020
HINO
17801-78020
HINO
17801-78030
TOYOTA
17801-0U020
TOYOTA
17801-78020
TOYOTA
17801-78030
TOYOTA
SUJ17T0101
TOYOTA
SUJ17T0101+SUJ17T0100
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
DAIHATSU » Delta
| 08.99~06.04 | 4100 | 15B-FTE | BU420 | C115J | A1004 | FC158J | ||
| 05.99~06.04 | 4600 | S05C | XZU382 | C607JC519U | A190JA1004 | FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU412 | C519UC607J | A1004 | FC158H | ||
| 05.99~06.04 | 4900 | S05D | XZU411 | C519UC607J | A190JA1004 | FC158H | ||
| 05.99~06.04 | 4900 | S05D | XZU421 | C519UC607J | A190JA1004 | FC158H | ||
| 05.99~06.03 | 5300 | J05C | XZU400A | C519UC607J | A1004 | FC174J | ||
| 05.99~06.04 | 5300 | J05C | XZU410 | C519UC607J | A1004 | FC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU420 | C607JC519U | A1004 | FC174J | ||
| 05.99~06.04 | 5300 | J05C | XZU430 | C607JC519U | A1004 | FC174JFC707J |
HINO » DUTRO
| 10.03~10.06 | 4000 | N04C-T | XKU414M | C519U | A1004 | |||
| 10.03~10.06 | 4000 | N04C-T | XKU424M | C519U | A1004 | |||
| 06.04~10.06 | 4000 | N04C-T | XZU388M | C607J | A1004A1009 | FE0020 | ||
| 06.04~10.06 | 4000 | N04C-T | XZU404M | C607J | A1004 | FE0020 | ||
| 06.04~10.06 | 4000 | N04C-T | XZU404X | C607J | A1004 | FE0020 | ||
| 10.03~10.06 | 4000 | N04C-T | XZU414M | C607J | A1004 | FE0020 | ||
| 06.04~10.06 | 4000 | N04C-T | XZU424M | C607J | A1004 | FE0020 | ||
| 10.06~01.08 | 4000 | N04C-TJ | XZU414M | C608J | A1004 | FE0020 | ||
| 10.06~01.08 | 4000 | N04C-TJ | XZU424M | C608J | A1004 | FE0020 | ||
| 10.06~07.11 | 4000 | N04C-TJ | XZU434M | C608J | A1004 | FE0020 | ||
| 10.06~03.10 | 4000 | N04C-TK | XZU404M | C608J | A1004 | FE0020 | ||
| 10.06~06.11 | 4000 | W04D | WU422L | C608J | A1004 | FE26034FC607J | ||
| 11.00~ | 4100 | 15B-FNE | XZU412M | C115J | A1004 | |||
| 06.02~ | 4100 | 15B-FP | XZU412M | C115J | A1004 | |||
| 05.99~07.01 | 4100 | 15B-FTE | BU400M | C115J | A1004 | FC158H | ||
| 05.99~07.01 | 4100 | 15B-FTE | BU410M | C115J | A1004 | FC158H | ||
| 05.99~07.01 | 4100 | 15B-FTE | BU420M | C115J | A1004 | FC158H | ||
| 05.99~07.01 | 4100 | 15B-FTE | BU426M | C115J | A1004 | FC158H | ||
| 05.99~07.01 | 4100 | 15B-FTE | BU430M | C115J | A1004 | FC158H | ||
| 06.03~05.07 | 4100 | 1BZ-FPE | BZU410M | C115J | A1004 | |||
| 05.99~12.07 | 4600 | S05C | XZU302E | C519UC607J | A190JA1004 | FC158H | ||
| 05.99~12.07 | 4600 | S05C | XZU382M | C519UC607J | A190JA1004 | FC158H | ||
| 05.99~12.07 | 4600 | S05C | XZU402M | C519UC607J | A1004 | FC158H | ||
| 05.99~12.07 | 4600 | S05C | XZU412M | C519UC607J | A1004 | FC158H | ||
| 10.06~ | 4700 | J05D-T | XZU413 | C607J | A1004 | FE21001 | ||
| 06.04~10.06 | 4700 | J05D-T | XZU413M | C602J | A1004 | FE0020 | ||
| 10.06~ | 4700 | J05D-T | XZU423 | C607J | A1004 | FE21001 | ||
| 01.05~10.06 | 4700 | J05D-T | XZU423M | C607J | A1004 | FE21001FE0020 | ||
| 01.05~10.06 | 4700 | J05D-T | XZU433M | C607J | A1004 | FE0020 | ||
| 05.99~06.04 | 4900 | S05D | XZU301E | C519UC607J | A190JA1004 | FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU401M | C519UC607J | A1004 | FC158HFE0020 | ||
| 05.99~06.04 | 4900 | S05D | XZU411M | C519UC607J | A1004 | FE0020FC158JFC158H | ||
| 06.02~06.04 | 4900 | S05D | XZU421 | C607J | A1004 | FC158J | ||
| 05.99~10.06 | 4900 | S05D | XZU421M | C519UC607J | A1004 | FE0020FC158JFC158H | ||
| 05.99~06.04 | 5300 | J05C | XZU400M | C519UC607J | A1004 | FC707JFC174J | ||
| 05.99~06.04 | 5300 | J05C | XZU400X | C607JC519U | A1004 | FC707JFC174J | ||
| 05.99~06.04 | 5300 | J05C | XZU410M | C519UC607J | A1004 | FC174JFC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU420M | C519UC607J | A1004 | FC174JFC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU430M | C607JC519U | A1004 | FC707J |
TOYOTA » Dyna
| 10.03~06.11 | 4000 | N04C | XKU414 | C608JC607J | A1004 | FE0020 | ||
| 10.03~06.11 | 4000 | N04C | XKU424 | C607JC608J | A1004 | FE0020 | ||
| 06.04~06.11 | 4000 | N04C | XZU414 | C608JC607J | A1004 | FE0020 | ||
| 06.04~10.06 | 4000 | N04C | XZU423L | C608J | A1004 | FE0020 | ||
| 06.04~ | 4000 | N04C-T | XZU424 | C608J | A1004 | FE0020 | ||
| 10.01~02.08 | 4000 | W04D | WU410 | C608J | A1004 | FC707JFE26034 | ||
| 10.01~02.08 | 4000 | W04D | WU410R | C608J | A1004 | FE26034FC707J | ||
| 11.00~06.02 | 4100 | 15B-CNG | XZU412 | C115J | A1004 | |||
| 05.99~05.07 | 4100 | 15B-FTE | BU400 | C115J | A1004 | FC158JSF2103 | ||
| 05.99~06.04 | 4100 | 15B-FTE | BU410 | C115J | A1004 | FC158JSF2103 | JT410K | |
| 05.99~06.04 | 4100 | 15B-FTE | BU420 | C115J | A1004 | SF2103FC158J | JT410K | |
| 05.99~06.04 | 4100 | 15B-FTE | BU430 | C115J | A1004 | FC158HSF2103 | JT410K | |
| 07.99~10.06 | 4100 | 15B-FTE | XZU320L | C115J | A1004 | FC158HSF2103 | ||
| 05.99~06.04 | 4100 | 15BLPG | XZU412 | C115J | A1004 | |||
| 06.03~05.07 | 4100 | 1BZ-FNE | BZU410 | C115J | A1004 | |||
| 06.03~05.07 | 4100 | 1BZ-FPE | BZU410 | C115J | A1004 | |||
| 06.04~06.11 | 4100 | N04C | XZU404 | C608JC607J | A1004 | FE0020 | ||
| 06.04~06.11 | 4100 | N04C | XZU404A | C608JC607J | A1004 | FE0020 | ||
| 10.06~ | 4100 | N04C | XZU434 | C608J | A1004 | FE0020 | ||
| 10.04~ | 4100 | N04C-TK | XZU454 | C608J | A1004 | FE0020 | ||
| 10.04~ | 4100 | N04C-TK | XZU488 | C608J | A1004 | FE0020 | ||
| 05.99~06.04 | 4600 | S05C | XZU382 | C607JC519U | A1004A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU402 | C607JC519U | A1004 | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU412 | C519U | A1004 | SF2103FC158H | ||
| 10.01~10.06 | 4600 | S05C-TB | XZU414L | C602J | A1004 | FE26034 | ||
| 10.01~10.06 | 4600 | S05C-TB | XZU414R | C608J | A1004 | FE26034FE0020 | ||
| 06.04~10.06 | 4700 | J05D | XZU423 | C602J | A1004 | FE0020 | ||
| 06.04~10.06 | 4700 | J05D-T | XZU413 | C602J | A1004 | FE0020 | ||
| 06.04~10.06 | 4700 | J05D-T | XZU433 | C602J | A1004 | FE0020 | ||
| 05.99~10.06 | 4900 | S05D | XZU401 | C607JC519U | A1004 | FC158HFE0020SF2103 | ||
| 05.99~10.06 | 4900 | S05D | XZU411 | C607JC519U | A1004 | SF2103FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU421 | C519UC607J | A1004 | FE0020SF2103FC158H | ||
| 05.99~06.04 | 5300 | J05C | XZU400 | C607JC519U | A1004 | FC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU400A | C607JC519U | A1004 | FC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU410 | C519UC607J | A1004 | FC174J | ||
| 05.99~06.04 | 5300 | J05C | XZU420 | C519UC607J | A1004 | FC707J | ||
| 10.00~02.08 | 5300 | J05C | XZU420R | C607J | A1004 | FC707JFE26034 | ||
| 05.99~02.08 | 5300 | J05C | XZU430 | C519U | A1004 | FC707J | ||
| 05.99~06.04 | 5300 | J05C | XZU430R | C519UC607J | A1004 | FC707J |
