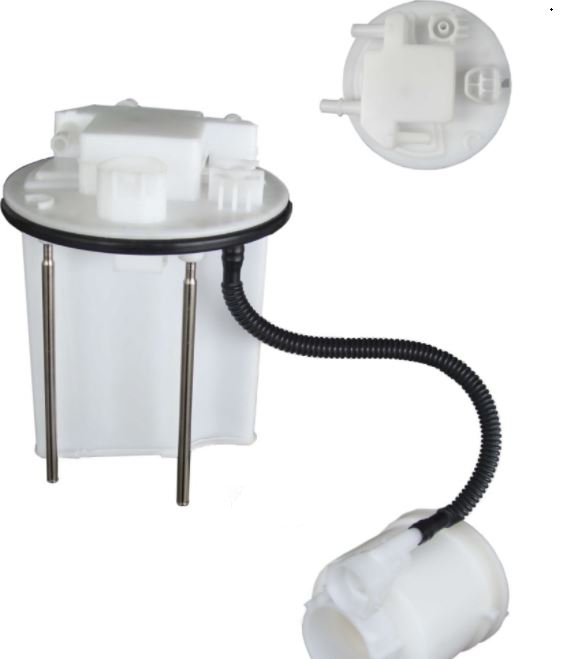

FUEL FILTER (IN-TANK) » FS21002

Feedback information
FS21002

Specification

Length 1/ Length 2
430/180
Outer Diameter 1/ Outer Diameter 2
132
Inner Diameter[mm]
117.8

Cross reference

TOYOTA
77024-0R010
TOYOTA
77024-0R020
TOYOTA
77024-42080
TOYOTA
77024-42110
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

LEXUS   »   NX200

10.14~09.21 2000 3ZR-FAE ZGZ10 OE117JC110J A1521A1013 FS21002FS6313API1011 AC108J JT544K
10.14~09.21 2000 3ZR-FAE ZGZ15 C110JOE117J A1013A1521 FS6313API1011FS21002 AC108J JT544K

LEXUS   »   NX300H

07.14~09.21 2500 2AR-FXE AYZ10 OE118J A1027 FS6313AFS21002 AC108J

LEXUS   »   RX270

08.10~09.15 2700 1AR-FE AGL10 OE118J A1519 FS6313AFS21002 AC108J JT21001K
08.10~09.15 2700 1AR-FE AGL10W JPN OE118J A1519 FS21002FS6313A AC108J JT21001K

TOYOTA   »   Harrier

01.14~05.20 2000 3ZR-FAE ZSU60W OE117JC110J A1013 FS6313API1011FS21002 AC108C
12.13~05.20 2000 3ZR-FAE ZSU65W C110JOE117J A1013 FS21002FS6313API1011 AC108J
01.14~05.20 2500 2AR-FXE AVU65W OE118J A1027 PI1011FS6313AFS21002 AC108JAC108C

TOYOTA   »   RAV 4

10.15~10.18 2000 2A-RFXE AVA42L OE118J A1027 PI1011FS21002FS6313A AC111J
10.15~10.18 2000 2A-RFXE AVA44L OE118J A1027 FS6313API1011FS21002 AC111J
12.08~12.12 2000 3ZR-FAE ZSA30L OE117J A1013 FS6313AFS21002 AC108J
12.08~12.12 2000 3ZR-FAE ZSA35L OE117J A1013 FS6313AFS21002 AC108J
12.12~ 2000 3ZR-FAE ZSA44L OE117J A1013 FS6313API1011FS21002 AC108C JT21004JT494K
12.12~10.15 2000 3ZR-FAE ZSA44R OE117J A1013 FS6313AFS21002 AC108C JT485K
12.12~09.19 2000 3ZR-FE ZSA42L OE117J A1013 FS21002FS6313API1011 AC108C JT21004
12.12~12.18 2000 3ZR-FE ZSA42R OE117J A1013 PI1011FS21002FS6313A AC108C JT21004
12.12~ 2000 3ZR-FE ZSA44L C110JOE117J A1013 FS6313AFS21002PI1011 AC108C JT544KJT21004
11.05~07.16 2400 2AZ-FE ACA31W JPN C113J A1015 FS21005FS21002FS6313API1008FS6303A AC108J JT527JT29001KJT426KJT21004
12.08~12.12 2400 2AZ-FE ACA33L C113J A1015 FS6313AFS21002 AC108J JT527JT426K
11.05~12.12 2400 2AZ-FE ACA33R C113J A1015 FS21005FS6313AFS6303AFS21002 AC108J JT426KJT527
11.05~11.13 2400 2AZ-FE ACA33W C113J A1015 FS21002FS21005FS6313AFS6303A AC108J JT426K
11.05~12.12 2400 2AZ-FE ACA36W C113J A1015 FS6313AFS21002FS6303AFS21005 AC108J JT485KJT29001KJT527
11.05~12.12 2400 2AZ-FE ACA38 C113J A1015 PI1011FS21002FS6313A AC108J JT426KJT527
03.10~01.13 2400 2AZ-FE ACA38L GCC C113J A1015 FS6313AFS21002PI1011 AC108J JT426K
01.13~12.15 2500 2AR-FE ASA44R OE118J A1521 FS6313API1011FS21002 AC108JAC108C JT21001K

TOYOTA   »   Vanguard

11.05~11.12 2400 2AZ-FE ACA31W C113J A1015 FS6313AFS6303API1008FS21002FS21005 AC108J JT29001KJT426KJT527JT21004
