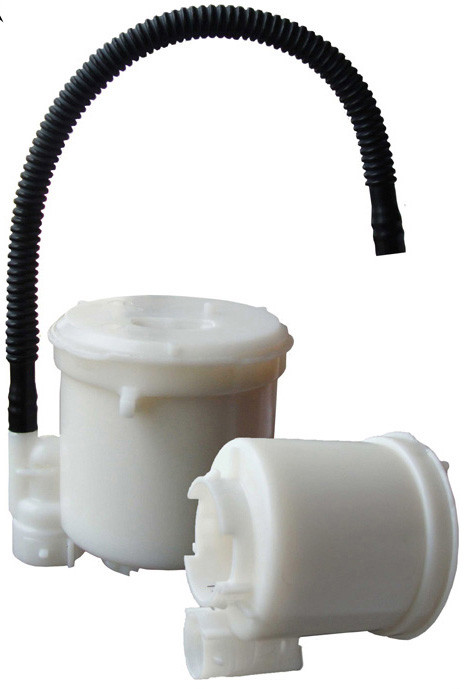

FUEL FILTER (IN-TANK) » FS6303A

Feedback information
FS6303A

Specification

Length 1/ Length 2
275
Outer Diameter 1/ Outer Diameter 2
84

Cross reference

TOYOTA
23300-0F010
TOYOTA
23300-21030
TOYOTA
77020-12720
TOYOTA
77024-02120
TOYOTA
77024-35040
TOYOTA
7702452100
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

LEXUS   »   HS250h

07.09~02.18 2400 2AZ-FXE ANF10 C113J A1521 FR1007FS6303API1001FS2107 AC108CAC108J

SUZUKI   »   Escudo

05.05~06.08 2000 J20A TD54W C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
05.05~06.08 2700 H27A TD94W C527J A974J FS2902PPI1008FS6303A AC980J JT437K

SUZUKI   »   Grand Vitara

08.08~07.19 2000 J20A GR NOMADE C933J A974J PI1008FS2902PFS6303A AC980C JT506K
09.05~08.08 2000 J20A JB420W-2 C933J A974J FS2902PFS6303API1008 AC980J JT506K
08.08~07.12 2000 J20A JB420W-5 C933J A974J PI1008FS6303AFS2902P AC980C JT506K
07.12~07.19 2000 J20A JB420W-8 C933J A974J PI1008FS2902PFS6303A AC980C JT506K
06.05~07.16 2000 J20A JTD54V C933J A974J FS6303API1008FS2902P AC980J JT506K
01.06~01.14 2000 J20A JTE54V C933J A974J PI1008FS2902PFS6303A AC980J JT506K
01.05~12.15 2000 J20A TD54V C933J A974J FS6303API1008FS2902P AC980J JT506K
06.01~09.08 2700 H27A JTD94V C527J A974J FS6303API1008FS2902P AC980J JT437K

SUZUKI   »   Grand Vitara (USA)

09.05~01.09 2700 H27A TE94 C527J A974J PI1008FS2902PFS6303A AC980J JT437K

SUZUKI   »   SX-4

05.06~ 1500 M15A YA11S C933J A991JA243PU FS2902PFS6303A AC982J JT516K
05.06~10.14 1500 M15A YB11S C933J A991J FS6303AFS2902P AC982J JT516K
06.07~ 1500 M15A YC11S C933J A243PUA991J FS2902PFS6303A AC982J JT516K
07.06~03.16 1600 M16A GYA21S C933J A991J FS2902PFS6303A AC982J JT516KJT621K
06.06~12.15 1600 M16A GYC21S SDN C933J A991JA243PU FS6303AFS2902P AC982J JT516K
02.08~11.11 1600 M16A RW416-4,5 HB RHD C933J A243PU FS6303AFS2902P AC982J JT516K
11.11~12.15 1600 M16A RW416-6 RHD C933J A243PU FS2902PFS6303A AC982J JT621KJT516K
06.06~01.10 2000 J20A JS2YA4 C933J A993J FS2902PFS6303A AC982J JT654
04.07~07.12 2000 J20A JS2YC4 SDN C933J A993J FS2902PFS6303A AC982J JT654
07.06~05.09 2000 J20A YA41S C933J A993J FS6303AFS2902P AC982J JT654
07.06~05.09 2000 J20A YB41S C933J A993J FS6303AFS2902P AC982J JT654
07.09~04.14 2000 J20B JS2YA5 C933J A2906 FS2902PFS6303A AC982J
07.09~04.14 2000 J20B JS2YB5 C933J A2906 FS6303AFS2902P AC982J
07.09~04.14 2000 J20B JS2YC5 SDN C933J A2906 FS2902PFS6303A AC982J JT654JT621K
01.10~06.12 2000 J20B YB41S C933J A2906 FS6303AFS2902P AC982J JT654
06.12~03.14 2000 J20B YB51S RHD C933J A2906 FS6303AFS2902P AC982J

SUZUKI   »   SX4 S-Cross

06.06~12.15 1600 M16A YA21S C933J A991J FS2902PFS6303A AC982J
06.06~12.15 1600 M16A YB21S LHD C933J A243PU FS2902PFS6303A AC982J JT516KJT621K

TOYOTA   »   4 Runner

08.02~05.20 4700 2UZ-FE UZN215 C114T A194J PI1009FS6303A AC102J JT437K

TOYOTA   »   Auris

03.15~05.18 1200 8NR-FTS NRE185 C110J A1013 FS2107FS6303A AC108J JT527JT539K
10.06~08.12 1500 1NZ-FE NZE154H C110J A1013 FS6303API1008FS21006 AC108J JT527JT494K
08.12~05.18 1500 1NZ-FE NZE181H C110J A1013 FS2107FS6303API1011FS2109 AC108C JT29001KJT527
08.12~05.18 1500 1NZFE NZE184H C110J A1013 PI1008FS21006FS6303A AC108C JT527JT494K
10.12~ 1600 1ZR-FAE ZRE185L OE117JC110J A1013 FS2107PI1011FS6303A AC108CAC108J
10.12~ 1600 1ZR-FAE ZRE185R OE117J A1013 FS2107FS6303A AC108J JT527JT494K
10.06~08.12 1800 2ZR-FE ZRE154H C110J A1013 FS6303API1008FS21006 AC108J JT527JT494K
06.10~10.12 1800 2ZR-FXE ZWE150L OE117J A1027 PI1024FS2107PI1011FS6303A AC108J

TOYOTA   »   Avensis

11.08~07.18 1600 1ZR-FAE ZRT270L OE117J A1013 FS6303API1011FS2107 AC108J
11.08~07.18 1800 2ZR-FAE ZRT271L OE117J A1013 PI1011FS6303AFS2107 AC108J JT601KJT539KJT527
11.08~07.18 1800 2ZR-FAE ZRT271R OE117J A1013 PI1011FS2107FS6303A AC108J JT601KJT527JT539K
11.08~07.18 2000 3ZR-FAE ZRT272L OE117J A1013 FS2107FS6303API1011 AC108J JT426KJT21004
07.11~09.15 2000 3ZR-FAE ZRT272W OE117J A1013 PI1011FS6303AFS2107 AC108J JT485K

TOYOTA   »   Belta

11.05~06.12 1000 1KR-FE KSP92 OE117J A196J FS21004FS6303API1011 AC108J JT21003K
11.05~06.12 1300 2SZ-FE SCP92 C110J A196J PI1008PI1011FS21004FS6303A AC108J JT21003K

TOYOTA   »   Blade

12.06~04.12 2400 2AZ-FE AZE154H C113J A1015 FS6303API1008FS21006 AC108J JT485K
12.06~04.12 2400 2AZ-FE AZE156H C113J A1015 FS6303AFS21006 AC108J JT485K
08.07~04.12 3500 2GR-FE GRE156H OE118J A1015 FS6303AFS21006 AC108J JT394K

TOYOTA   »   Corolla

06.13~12.19 1300 1NR-FE NRE180 OE117J A1013 FS6303AFS2107 AC108C
01.14~12.19 1300 1NR-FE NRE180R OE117J A1013 FS6303API1011FS2107 AC108CAC108J
08.07~11.13 1500 1NZ-FE NZE141R C110J A1013 PI1008FS21006FS6303A AC108J JT425KJT527JT494K
11.06~11.19 1600 1ZR ZRE151L C110JOE117J A1013 FS2107PI1011FS6303AFS21001 AC108J JT425K
07.10~03.14 1600 1ZR-FE ZRE141L OE117J A1013 FS6303API1008FS21006 AC108J JT425KJT527
08.10~03.14 1600 1ZR-FE ZRE141R OE117J A1013 FS21006FS6303API1008 AC108J JT425K
06.13~01.19 1600 1ZR-FE ZRE181L OE117J A1013 FS2107PI1011FS6303A AC108J JT527JT539KJT601K
01.13~ 1600 1ZR-FE ZRE181R OE117J A1013 PI1011FS6303AFS2107 AC108J JT527
01.09~07.10 1600 3ZZ-FE ZZE141L C110J A1013 FS21006FS6303API1008 AC108J JT425K
03.08~03.11 1800 1ZZ-FBE ZZE142L C110J A1013 PI1008FS21006FS6303A AC108J JT425K
03.08~11.14 1800 1ZZ-FE ZZE142L C110J A1013 FS6303API1008FS21006 AC108J JT425K
06.13~ 1800 2ZR-FE ZRE182L OE117J A1013 FS2107FS6303API1011 AC108CAC108J JT601KJT527

TOYOTA   »   Corolla Altis

08.08~06.14 1300 2NZ-FE NZE140R C110J A1013 FS6303AFS21006 AC108C
01.08~11.13 1300 2NZ-FE ZZE141L C110J A1013 FS6303AFS21006 AC108C JT425K
08.10~11.13 1600 1ZR-FE ZRE141L OE117J A1013 FS21006PI1008FS6303A AC108J JT494KJT527
12.07~07.14 1600 3ZZ-FE ZZE141R C110J A1013 PI1008FS6303AFS21006 AC108J JT425K
01.08~08.10 1800 1ZZ-FE ZZE142L C110J A1013 FS6303AFS21006 AC108J JT425K
01.08~08.10 1800 1ZZ-FE ZZE142R C110J A1013 FS21006FS6303A AC108J JT425K
07.10~07.14 1800 2ZR-FE ZRE142 OE117J A1013 FS21006FS6303A AC108J JT601K
11.08~07.14 2000 3ZR-FE ZRE143L OE117J A1013 FS6303AFS21006 AC108J JT485KJT426K

TOYOTA   »   Corolla Axio

09.06~04.12 1500 1NZ-FE NZE141 C110J A1013 PI1008FS21006FS6303A AC108J JT527JT494K
09.06~04.12 1500 1NZ-FE NZE144 C110J A1013 FS6303API1008FS21006 AC108J JT494KJT527
05.10~04.12 1800 2ZR-FAE ZRE142G OE117J A1013 FS6303AFS21006PI1008 AC108J JT21003KJT527
04.12~ 1800 2ZR-FAE ZRE162 OE117J A1013 FS6303AFS21005 AC108J JT527JT494K
09.06~05.10 1800 2ZR-FE ZRE142 OE117J A1013 PI1008FS6303AFS21006 AC108J JT494KJT527
09.06~04.12 1800 2ZR-FE ZRE144 OE117J A1013 PI1008FS21006FS6303A AC108J JT527JT494K

TOYOTA   »   Corolla Fielder

09.06~04.12 1500 1NZ-FE NZE141G C110J A1013 PI1008FS21006FS6303A AC108J JT527JT494K
10.06~05.12 1500 1NZ-FE NZE144G C110J A1013 FS6303AFS21006PI1008 AC108J JT527JT494K
05.10~04.12 1800 2ZR-FAE ZRE142G OE117J A1013 FS6303AFS21006 AC108J
10.06~04.12 1800 2ZR-FE ZRE144G OE117J A1013 FS6303API1008FS21006 AC108J JT527JT494K

TOYOTA   »   Corolla Rumion

10.07~12.15 1800 2ZR-F#E ZRE154N OE117J A1013 PI1008FS21006FS6303A AC108J JT527JT494K

TOYOTA   »   Estima Emina

01.06~10.19 2400 2AZ-FE ACR50W C113J A1015 FS2102FS21009FS6303A AC108J JT485KJT531K
01.06~05.16 3500 2GR-FE GSR50W OE118J A1015 FS6303AFS21009 AC108J JT394K

TOYOTA   »   FJ Cruiser

07.07~12.22 4000 1GR-FE GSJ15L C111T A1011A194J FS6303AFS8002FS8003 AC101J JT437K

TOYOTA   »   Hiace Regius

01.05~ 2700 2TR-FE TRH226 OE116J A170JA1514A1530 FS6303AFS2104 AC108J JT541KJT436K

TOYOTA   »   Lexus GS (Aristo)

08.05~ 3500 2GR-FSE GRS191 OE116J A1012 FS6303A
08.05~ 3500 2GR-FSE GRS196 OE116J A1012 FS6303A

TOYOTA   »   Previa

01.06~10.19 2400 2AZ-FE ACR50L C113J A1015 FS6303AFS21009 AC108CAC108J JT426KJT527JT21004
01.06~ 2400 2AZ-FE ACR50R C113J A1015 FS21009FS6303A AC108J JT527
11.06~10.19 3500 2GR-FE GSR50L OE118J A1015 FS21009FS6303A AC108JAC108C JT394K
11.06~01.18 3500 2GR-FE GSR50R OE118J A1015 FS6303AFS21009 AC108J JT394K

TOYOTA   »   Prius

04.09~11.15 1800 2ZR-FXE ZVW30 OE117J A1027 PI1011FS2107FS6303A AC108CAC108J
04.09~11.15 1800 2ZR-FXE ZVW30R OE117J A1027 FS6303AFS2107 AC108JAC108C

TOYOTA   »   Prius PHV

01.12~12.16 1800 2ZR-FXE ZVW35 OE117J A1027 FS2107FS6303API1011PI1024 AC108J
12.09~12.16 1800 2ZR-FXE ZVW35L OE117J A1027 PI1011PI1024FS2107FS6303A AC108J

TOYOTA   »   Ractis

09.05~11.10 1300 2SZ-FE SCP100 C110J A196J FS21004FS6303API1011 AC108J JT21003K
09.05~11.10 1500 1NZ-FE NCP100 C110J A1013 FS21004FS6303API1011 AC108J JT29001K

TOYOTA   »   RAV 4

11.05~12.12 2000 1AZ-FE ACA30L C113J A1015 FS6303AFS21005 AC108J JT426K
11.05~ 2000 1AZ-FE ACA30R C113J A1015 FS6303AFS21005 AC108J
01.07~12.08 2400 2AZ-FE ACA31L C113J A1015 FS6303AFS21005 AC108J JT527JT426K
11.05~07.16 2400 2AZ-FE ACA31W JPN C113J A1015 FS21002FS6313API1008FS6303AFS21005 AC108J JT527JT29001KJT426KJT21004
11.05~12.12 2400 2AZ-FE ACA33R C113J A1015 FS21005FS6313AFS6303AFS21002 AC108J JT426KJT527
11.05~11.13 2400 2AZ-FE ACA33W C113J A1015 FS6303AFS21002FS21005FS6313A AC108J JT426K
11.05~12.12 2400 2AZ-FE ACA36W C113J A1015 FS6313AFS21002FS6303AFS21005 AC108J JT29001KJT527JT485K
01.08~01.13 2500 2AR-FE ASA33L OE118J A1015 PI1008FS21005FS6303A AC108J JT426K
01.05~01.13 2500 2AR-FE ASA38L OE118J A1015 PI1008FS21005FS6303A AC108J JT426K
08.07~08.08 3500 2GR-FE GSA33R OE118J A1015 PI1011FS6303AFS21005 AC108J JT422K

TOYOTA   »   Sai

01.09~08.13 2400 2AZ-FXE AZK10 C113J A1521 FS2107PI1001FR1007FS6303A AC108J

TOYOTA   »   Scion XB

03.10~12.15 2400 2AZ-FE AZE151 C113J A1015 FS6303API1008 AC108J JT426K

TOYOTA   »   Sienta

09.03~03.14 1500 1NZ-FE NCP81G C110J A197J FS6303A AC101J JT29001KJT425K
09.03~06.11 1500 1NZ-FE NCP85 C110J A197J FS6303A AC101J JT29001KJT425K

TOYOTA   »   Tarago

01.06~ 2400 2AZ-FE ACR50R C113J A1015 FS21009FS6303A AC108J JT21004JT426KJT527

TOYOTA   »   Vanguard

11.05~11.12 2400 2AZ-FE ACA31W C113J A1015 FS21005FS6313AFS6303API1008FS21002 AC108J JT21004JT29001KJT426KJT527
08.07~01.13 2400 2AZ-FE ACA33W C113J A1015 FS21005FS6303A AC108J JT527JT29001K
08.08~11.13 2400 2AZ-FE ACA38W C113J A1015 FS6303API1008FS21005 AC108J JT527JT485K
08.07~12.12 3500 2GR-FE GSA33W OE118J A1015 PI1011FS21005FS6303A AC108J JT422K

TOYOTA   »   Vitz

01.05~12.10 1300 2SZ-FE SCP90 C110J A196J FS21004FS6303A AC108J JT21003K

TOYOTA   »   Yaris

08.05~08.11 1000 1KR-FE KSP90L C110J A196J FR1013FS6303AFS21004PI1008FS21003FS2100A AC108J
08.05~08.11 1000 1KR-FE KSP90R C110J A196J FS21004PI1008FS21003FS2100AFR1013FS6303A AC108J
11.05~11.08 1300 2SZ-FE SCP90L C110J A196J FS21004FS6303API1008 AC108J
11.05~11.08 1300 2SZ-FE SCP90R C110J A196J FS6303API1008FS21004 AC108J
08.05~07.13 1500 1NZ-FE NCP91R C110J A1013 FS21004FS6303A AC108J JT425K
