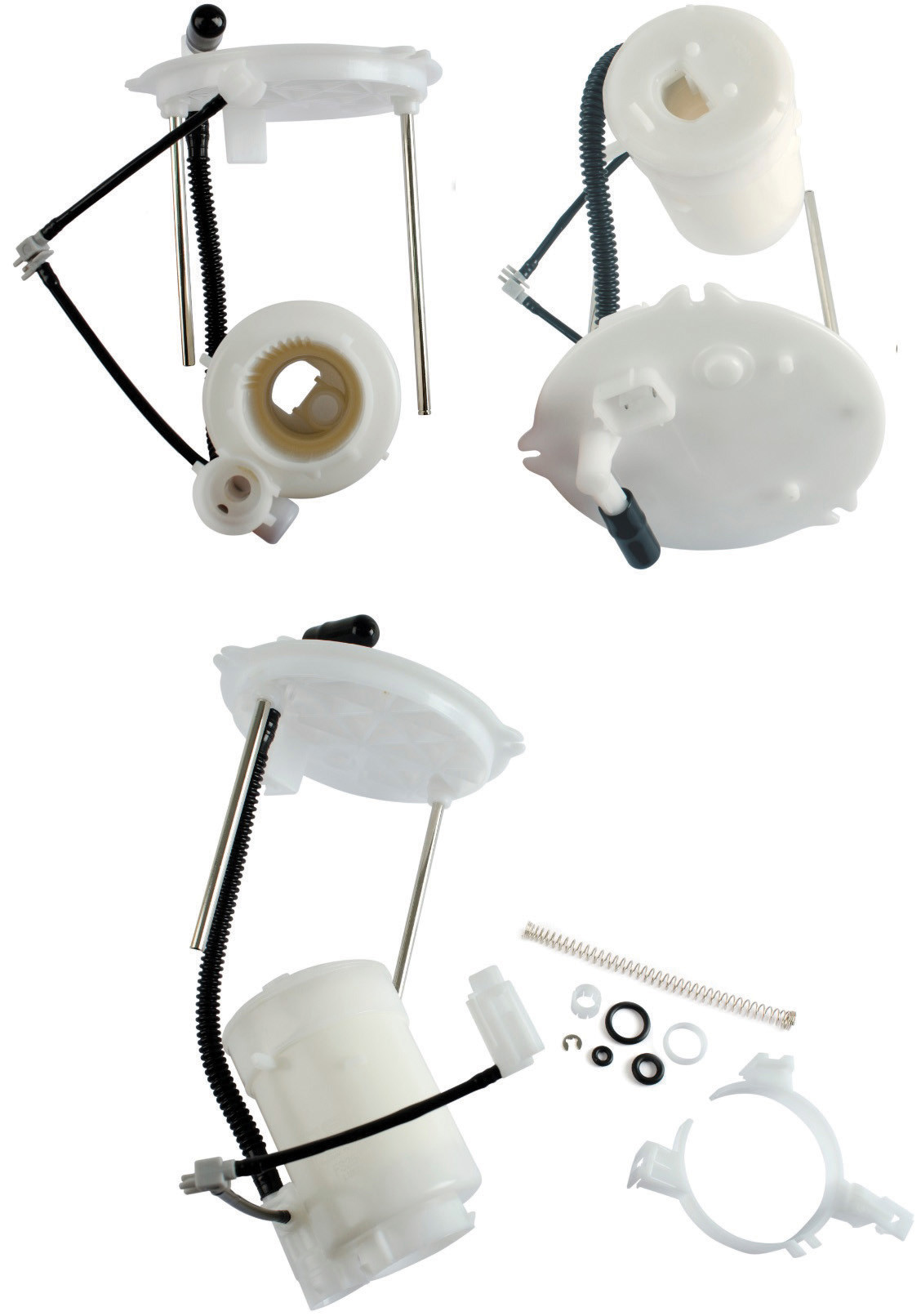

FUEL FILTER (IN-TANK) » FS25005
Feedback information
Specification
Length 1/ Length 2
285
Outer Diameter 1/ Outer Diameter 2
131
Diameter 1/ Diameter 2 [mm]
39
Cross reference
MAZDA
LF5W-13-ZE0
MAZDA
LFB6-13-ZE0
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
MAZDA » Biante
MAZDA » Mazda 5
| 06.10~08.17 | 1800 | L8 | CW | C010JC114J | A475J | FS6300FS25005FR1012 | AC3502SET | JT318K |
| 02.05~10.10 | 1800 | L823 | CR | C010JC114J | A475J | FS25005PI1006FR1012 | AC3502SET | JT317KJT318K |
| 06.10~08.17 | 2000 | LF-VE | CW | C010JC114J | A475JA476J | FS6300FS25005FR1012 | AC3502SET | JT318K |
| 02.05~06.10 | 2000 | LFF7 | CR | C010JC114J | A475J | FS25005FR1012 | AC3502SET | JT317KJT318K |
| 02.05~06.10 | 2000 | LFF7 | CR19 EU LHD | C010JC114J | A475J | FS25005PI1006FR1012 | AC3502SET | JT317KJT318K |
| 10.10~08.17 | 2000 | PE-VPS | JM6CW10 | C010JC114J | A475JA476JA25001 | FS6300FS25005 | AC3502SET | JT318KJT533K |
| 03.08~10.10 | 2300 | L3-V# | AUCV02 US | C010JC114J | A475J | FS25005PI1006FR1012 | AC3502SET | JT318K |
| 09.04~03.08 | 2300 | L3-VE | CR | OE406J | A475J | FS25005FR1012 | AC3502SET | JT317KJT318K |
| 06.10~08.17 | 2500 | L5-VE | JM1CW2 US | C010JC114J | A475J | FS25005FR1012 | AC3502SET | JT318K |
MAZDA » Premacy
| 02.05~09.07 | 2000 | LF-DE | CREW | C010JC114JOE406J | A475J | FS25005PI1006FR1012 | AC3502SET | JT312KJT317K |
| 08.07~07.10 | 2000 | LF-V# | CREW | C010JC114JOE406J | A475J | FS6300FS25005PI1006PI1018FR1012 | AC3502SET | JT312KJT318K |
| 02.05~07.10 | 2000 | LF# | CR19 | C010JC114JOE406J | A475J | FS25005PI1006FR1012 | AC3502SET | JT312KJT317K |
| 12.04~08.07 | 2300 | L3-VE | CR3W | OE406J | A475J | FS6300FS25005PI1006PI1018FR1012 | AC3502SET | JT317KJT318K |
| 08.07~07.10 | 2300 | L3-VE | CR3W | OE406J | A475J | FS25005PI1006FR1012 | AC3502SET | JT318K |
