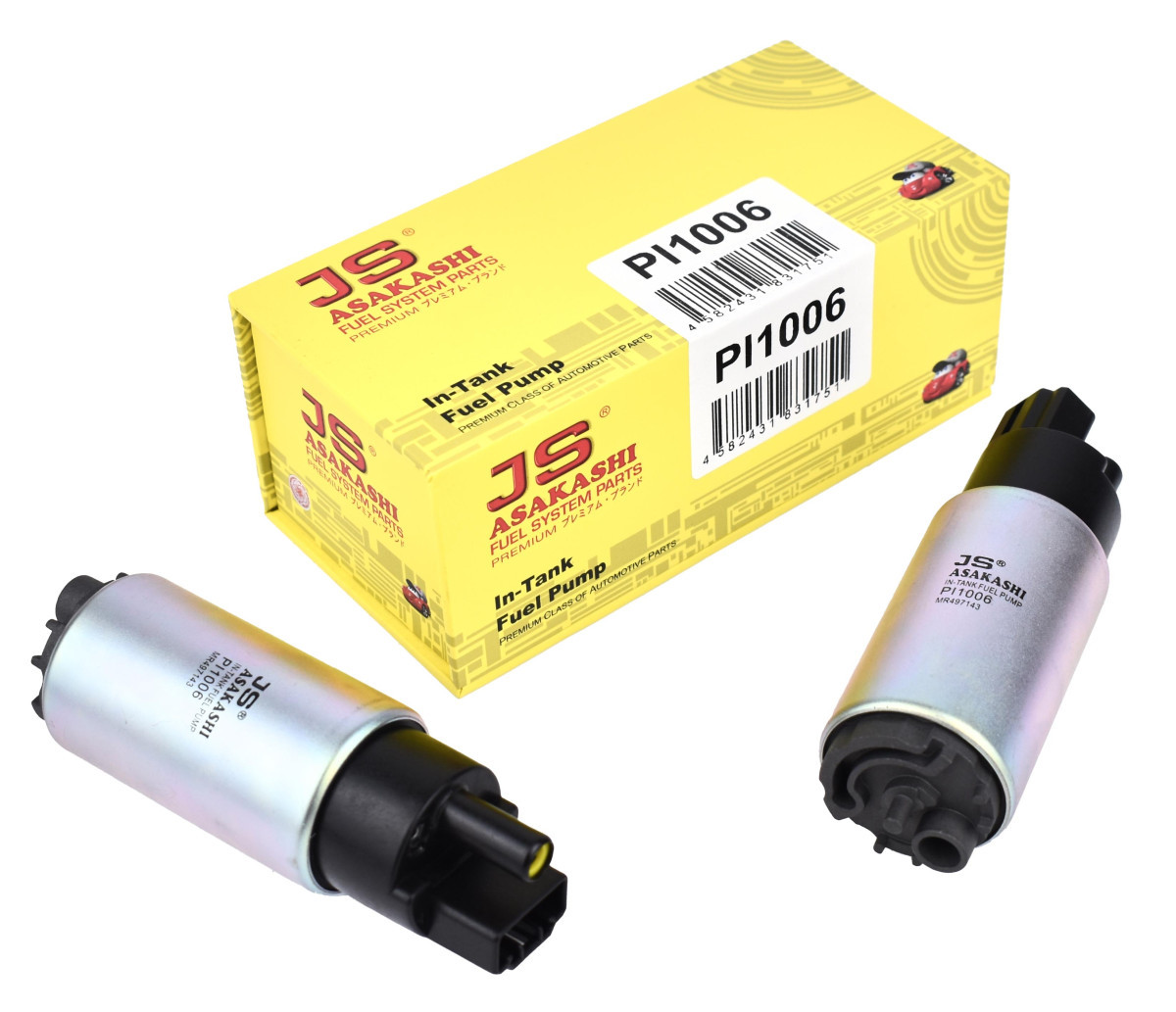

IN-TANK FUEL PUMP » PI1006

Feedback information
PI1006

Specification

Length 1/ Length 2
115
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x3mm
Pressure [Bar]
3
Flow [L/h]
110

Cross reference

FUSO
1760A271
MAZDA
AJ03-13-35XB
MAZDA
AJ03-13-35XC
MAZDA
L3M8-13-350B
MAZDA
LFB7-13-350
MITSUBISHI
1760A271
MITSUBISHI
1760A293
MITSUBISHI
1760A295
MITSUBISHI
1760A317
MITSUBISHI
1760A330
MITSUBISHI
MN158346
MITSUBISHI
MR342998
MITSUBISHI
MR431112
MITSUBISHI
MR497143
MITSUBISHI
MR497549
MITSUBISHI
MR497752
MITSUBISHI
MR529575
NISSAN
17040-1YA0A_P
NISSAN
17040-95F0B_P
NISSAN
17040-JG00D_PI
SUZUKI
15110-65G00
TOYOTA
23100-87403_PI
TOYOTA
23220-38061
TOYOTA
23220-50260
TOYOTA
23220-50261
TOYOTA
23220-50270
TOYOTA
23220-50271
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

FORD   »   Escape

11.00~10.03 2000 YF-DE EPEWF C010J A4503 FR1012FS800MPI1006 AC0158 JT315K

LEXUS   »   LX570

11.07~ 5700 3UR-FE URJ201 OE0071 A1515 FR1012PI1006 AC108CAC108J JT525

MAZDA   »   Atenza

05.02~01.08 2300 L3-V# GG3P OE406J A474JA470J FS2503PI1006FR1012 AC401J JT317K

MAZDA   »   Axela

06.09~09.11 2300 L3-VDT BL3FW C114J A475J PI1006FR1012 AC0157SET
09.11~11.13 2300 L3-VDT BL3FW C114J A475J FR1012PI1006 AC0157SET

MAZDA   »   CX-7

05.07~06.09 2300 L3# AEES01 EU JMZER OE406J A474J PI1006FR1012FS2504FR1006 AC401J JT714K
06.09~01.13 2300 L3-VDT AEES02 EU JMZER C114JOE406J A474J PI1006FR1012FS2504FR1006 AC401J JT714K
02.06~01.15 2300 L3-VDT AUES01 US JM3ER OE406JC114J A474J PI1006FR1012FR1006FS2504 AC401J JT714KJT254K
01.06~01.15 2300 L3-VDT EG52 JM0ER C114JOE406J A474J FR1012FS2504FR1006PI1006 AC401J JT254KJT714K

MAZDA   »   Mazda 3

07.06~03.09 2300 L3-VDT 5DR HB US OE406J A475J PI1006FR1012 AC3502SET
03.06~03.09 2300 L3-VDT ABBA11 HB OE406J A475J FR1012PI1006FS2514 AC3502SET
01.09~11.13 2300 L3-VDT BL HB C114J A475J PI1006FR1012 AC0157SET JT318K

MAZDA   »   Mazda 5

02.05~10.10 1800 L823 CR C114J A475J FS25005PI1006FR1012 AC3502SET JT317KJT318K
02.05~06.10 2000 LFF7 CR19 EU LHD C114J A475J FS25005PI1006FR1012 AC3502SET JT317KJT318K
03.08~10.10 2300 L3-V# AUCV02 US C114J A475J FS25005FR1012PI1006 AC3502SET JT318K

MAZDA   »   Mazda 6 MPS

07.05~01.08 2300 L3 GG OE406J A474J FR1012PI1006 AC401J

MAZDA   »   Premacy

02.05~07.10 2000 LF# CR19 OE406JC114J A475J FR1012FS25005PI1006 AC3502SET JT317KJT312K
02.05~09.07 2000 LF-DE CREW C114JOE406J A475J PI1006FR1012FS25005 AC3502SET JT317KJT312K
08.07~07.10 2000 LF-V# CREW C114JOE406J A475J PI1006PI1018FS25005FS6300FR1012 AC3502SET JT312KJT318K
05.10~02.18 2000 LF-VE CWEAW C114J A475J PI1006FR1012 AC3502SET JT312K
12.04~08.07 2300 L3-VE CR3W OE406J A475J PI1018PI1006FR1012FS25005FS6300 AC3502SET JT318KJT317K
08.07~07.10 2300 L3-VE CR3W OE406J A475J FR1012FS25005PI1006 AC3502SET JT318K

MAZDA   »   Tribute

10.00~10.03 2000 YF-DE EPEW C010J A4503 FR1012PI1006FS800M AC0158AC0151 JT315K
10.00~10.05 3000 AJ-DE EPFW C417J A4503 PI1006FR1012FS800M AC0158 JT315K

MITSUBISHI   »   Aspire

08.98~07.02 2400 4G64 EA3A C304J A3012 FS3211FR1012PI1006   HC0013JT215K

MITSUBISHI   »   Chariot Grandis

08.97~08.03 2400 4G64 N84W C304J A3012 FR1012PI1006   JT206K
01.98~05.03 2400 4G64 N94W C316JC304J A3012 PI1006FR1012   JT206K

MITSUBISHI   »   Galant

12.98~05.03 2400 4G64 EA3A_EU C304J A3012 FR1012PI1006   HC0013
08.98~07.02 2400 4G64 EA3A_JP C304J A3012 FR1012PI1006FS3211   HC0013JT215K

MITSUBISHI   »   Galant Fortis

11.08~02.12 1800 4J10 CY3A C415J A3025 FR1012PI1006 AC3507
12.08~03.15 2000 4B11-T CX4A C415J A3025 FR1012PI1006 AC3507

MITSUBISHI   »   Grandis

01.04~01.11 2400 4G69 NA4W EU LHD C304J A3022 FS6510PI1006FR1012 AC3503 JT206K

MITSUBISHI   »   Lancer

09.00~08.13 1300 4G13 CS1A C415J A3011 FR1012FS6505UPI1006 AC3503 JT215K
12.04~07.07 1500 4G15 CS2W C415J A3011 FR1012PI1006FS6505U   JT217K
09.00~09.13 1600 4G18 CS3A C415J A3011 PI1006FS6505UFR1012 AC3503 JT217KJT215K
09.00~09.13 1600 4G18 CS3A GLX LHD C415J A3011 FS6505UFR1012PI1006 AC3503 JT215KJT217K
04.01~05.07 1800 4G93# CS5A JPN C415J A3011 FS6505UPI1006FR1012   JT215K
09.00~08.13 1800 4G93-T CS5W C415J A3011 FS6505UPI1006FR1012 AC3503 JT206K
06.01~11.06 2400 4G69 CS7A C304J A3011 PI1006FR1012 AC3503 JT215K

MITSUBISHI   »   Lancer Cargo

01.03~12.08 1500 4G15 CS2V C415J A3011 PI1006FS6505U   JT217K

MITSUBISHI   »   Lancer Cedia

06.01~12.06 1600 6G74 CS5W C316JC304JC415JC307J A3011 FR1012FS6505UPI1006   JT206K
10.00~08.07 1800 4G93-T CS5W JPN C415J A3011 FR1012FS6505UPI1006   JT217K

MITSUBISHI   »   Lancer EX

01.07~12.17 2000 4B11 CY4A C415J A3025 FR1012PI1006FS8019AFS8019 AC3507 JT503JT406K

MITSUBISHI   »   Mirage Dingo

01.00~08.02 1300 4G13 CQ1A C304J A3011 PI1006FS6510FR1012   JT206K

MITSUBISHI   »   Pajero IO

11.98~03.05 1600 4G18 H65W GEN LHD C304J A3011 PI1006
03.98~06.07 1800 4G93 H76W C415J A3011 FR1012PI1006PI1021FR1009 AC301J JT506KJT279K
06.98~06.07 1800 4G93 H76W JPN C415J A3011 FR1012PI1006PI1021FR1009 AC301J JT279KJT506K
05.00~09.02 2000 4G94 H72W C304J A3011 PI1006FR1012
05.00~06.07 2000 4G94 H77W C415J A3011 PI1006FR1012   JT279K
02.00~12.05 2000 4G94 H77W GEN C415JC304J A3011 FR1012PI1006 AC3504C
05.00~06.07 2000 4G94 H77W JPN C415J A3011 FR1012PI1006   JT279K

MITSUBISHI   »   Pajero Pinin

09.00~02.05 2000 4G94 H77W C415J A3001 FR1012PI1006 AC301J

MITSUBISHI   »   RVR

09.97~08.02 1800 4G93 N61W C316JC304J A3012 PI1006FR1012   JT206K
10.11~ 1800 4J10 GA4W C415J A3022A3025 PI1006FR1012FS23002FS23001 AC3507 JT503JT406K
09.97~08.02 2000 4G63 N73WG C304J A3012 PI1006FR1012   JT213KJT215KHC0013

MITSUBISHI   »   Space Wagon

08.97~04.04 2400 4G64 N84W C304J A3012 PI1006FR1012 AC0178 HC0013JT206K

NISSAN   »   Dualis

12.07~03.14 2000 MR20DE KNJ10 C224J A2801 PI1006FS2205FR1012 AC207J JT503
01.07~08.09 2000 MR20DE NJ10 C224J A2801 PI1014FR1004FS2202PFS2205PI1006FS22001 AC207J JT503

NISSAN   »   Qashqai

12.06~03.14 2000 MR20DE J10E C224J A2801 FS2202PFS22001FS2224PFS2205FR1004FR1003PI1014PI1006 AC207J JT406KJT503JT484K
01.10~03.14 2000 MR20DE J10E RH C224J A2801 FR1003FS2205PI1014FR1004FS2202PPI1006FS2224PFS22001 AC207C JT503JT406K
02.08~09.15 2000 MR20DE J10Z C224J A2801 FS22001FS2202PFS2205PI1014PI1006 AC0156 JT406KJT503

NISSAN   »   Qashqai+2

08.08~03.14 2000 MR20DE JJ10E C224J A2801 PI1014FS2202PPI1006FS2224PFS22001FS2205FR1004FR1003 AC207J JT484K

NISSAN   »   X-Trail

08.07~03.15 2000 MR20DE NT31 JPN C224J A2801 FS2202PFS2205PI1014FS22001PI1006 AC207J JT406KJT484KJT503
07.10~01.15 2000 MR20DE T31 GR AUS C224J A2801 PI1006FS22001FS2205FS2202PPI1014 AC207J JT503JT406K
08.07~12.13 2000 MR20DE T31EAA GR SA C224J A2801 FS22001PI1006FS2202PFS2205PI1014 AC207J
07.10~12.14 2000 MR20DE T31R EL C224J A2801 FS22001FS2205PI1014FS2202PPI1006 AC207J JT484K
08.07~01.15 2500 QR25DE T31 C224J A202J PI1006FS22001FS2202PFS2205PI1014 AC207J JT503JT484K
06.08~09.14 2500 QR25DE T31N C224J A2801A202J PI1006FS22001FS2205FS2202PPI1014 AC207J JT484K
10.09~12.14 2500 QR25DE T31R C224J A202J PI1014FS22001FS2202PPI1006FS2205 AC207J JT484K
08.07~02.15 2500 QR25DE TNT31 C224J A202J FS2202PPI1006FS2205PI1014FS22001 AC207J

SUZUKI   »   Chevrolet Cruze

10.01~11.03 1300 M13A HR51S C933J A967J FS7090FR1012PI1006 AC932J JT516K
10.01~11.03 1500 M15A HR81S C933J A967J FS7090FR1012PI1006 AC932J JT516K
11.03~06.08 1500 M15A HR82S C933J A967J PI1006FS7090FR1012 AC932J JT516K

SUZUKI   »   Ignis

06.00~01.08 1300 M13A FHY51 C933J A967J PI1006FS7090FR1012 AC932J JT196K

SUZUKI   »   Swift

06.03~11.04 1500 M15A HT81S C933J A9507 PI1006FS7090FR1012 AC932J JT516K

SUZUKI   »   Wagon R Solio

11.00~11.02 1000 K10A MA64S C932J A961J PI1006FS7090FR1012 AC932J JT199K

TOYOTA   »   Cami

05.00~12.05 1300 K3-VE J102E C932J A740J PI1006   JT392K
05.00~12.05 1300 K3-VE J122E C932J A740J FS309JFS1030PI1006   JT392K
05.00~12.05 1300 K3-VT J102E C932J A740JA150J PI1006   JT392K

TOYOTA   »   Land Cruiser

01.86~01.97 3500 1PZ PZJ77HV     SF2102PM1004PI1006FR1012

TOYOTA   »   Land Cruiser 200

09.07~08.15 4000 1GR-FE GRJ200L C114T A1011 FS2108FR1012PI1006FS2108P AC108J JT437K
05.09~ 4600 1UR-FE URJ202L OE0071 A1515 FS8002FR1012PI1006 AC108J JT525
04.09~ 4600 1UR-FE URJ202W OE0071 A1515 FS8002FR1012PI1006 AC108J JT568KJT525
09.07~03.12 4700 2UZ-FE GRJ200R C114T A1515 FS2108FS2108PFR1012PI1006 AC108J JT437K
09.07~01.12 4700 2UZ-FE UZJ200L C114T A1515 FR1012PI1006FS2108 AC108J JT437K
09.07~05.09 4700 2UZ-FE UZJ200W C114T A1515 FS2108PPI1006FS2108FS8015FR1012 AC108J JT437K
09.07~08.15 5700 3UR-FE URJ200L OE0071 A1515 PI1006FS2108FR1012FS2108P AC108J JT525
