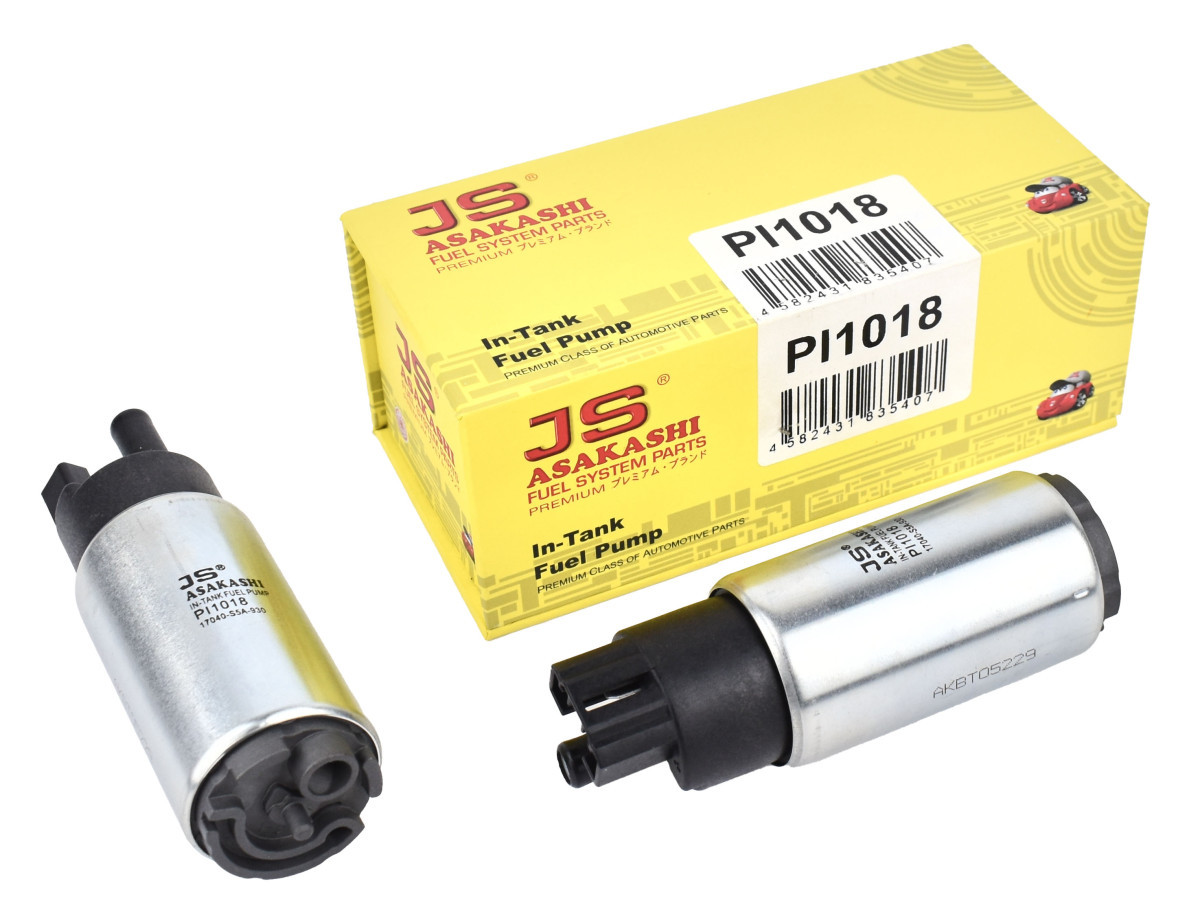

IN-TANK FUEL PUMP » PI1018
Feedback information
Specification
Length 1/ Length 2
115
Diameter 1[mm]
38
Diameter 2[mm]
32
Pressure [Bar]
3
Flow [L/h]
110
Cross reference
HONDA
17040-S10-D11
HONDA
17040-S2H-930
HONDA
17040-S5A-930
HONDA
17040-S7A-930
HONDA
17040-S7S-000
HONDA
17040-S9A-000
HONDA
17040-SAA-000
HONDA
17040-SR3-930
HONDA
17040-ST7-932
HONDA
17040-ST7-933
HONDA
17040-ST7-A33
HONDA
17040S10J02_PI
HONDA
17045-SNC-020_PI
HONDA
17045-SWT-E00
HONDA
17045-SWW-E00
HONDA
17045-SWW-E01
HONDA
17045-TF0-000_PI
MAZDA
L577-13-350
MAZDA
LF2L-13-350
MITSUBISHI
1760A189
MITSUBISHI
1760A292
MITSUBISHI
1760A345
MITSUBISHI
MR 431087
NISSAN
17051-HA00B
SUZUKI
15100-65D70
SUZUKI
15110-81A00
TOYOTA
23221-03030
TOYOTA
23221-15040
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HONDA » Airwave
HONDA » City
| 01.02~01.06 | 1300 | L13A# | GD6 LHD | C805J | A880J | PI1018FS7304A | AC805J | JT459JT383 |
| 01.06~01.09 | 1300 | L13A# | GD6 LHD | C805J | A880J | FS7304API1018 | AC805J | JT459JT383 |
HONDA » Civic
| 11.05~12.11 | 1300 | LDA2 | FA3 | C809J | A889J | PI1018FS28001FS28001A | AC881J | JT444 |
| 01.01~09.03 | 1400 | D14Z6 | EU7 | C809J | A869J | PI1018FS7303 | AC803SET | |
| 09.03~09.05 | 1400 | D14Z6 | EU7 | C809J | A869J | PI1018FS7303 | AC803SET | |
| 09.00~09.03 | 1500 | D15B | EU1 JPN | C809J | A869J | PI1018FS7303 | AC803SET | JT451JT443KJT495 |
| 01.01~12.05 | 1500 | D15Y | ES8 RHD | C809J | A870J | FS7003FS7303PI1018 | AC803SET | JT451JT443K |
| 01.01~12.05 | 1500 | D15Y3 | ES8 LHD | C809JC805J | A870J | FS7303FS7003PI1018 | AC803SET | JT451 |
| 01.01~12.05 | 1600 | D16V1 | EP2 RHD | C809JC307J | A869J | FS7303PI1018 | AC803SET | |
| 01.01~09.03 | 1600 | D16V1 | EU8 | C809J | A869J | PI1018FS7303 | AC803SET |
HONDA » Civic Coupe
HONDA » Civic Ferio
| 09.00~09.05 | 1500 | D15B | ES1 JPN | C809J | A870J | PI1018FS7303 | AC803SET | JT451 |
| 09.00~09.05 | 1500 | D15B | ES2 | C809J | A870J | PI1018 | AC803SET | JT451 |
| 09.00~09.05 | 1700 | D17A | ES3 | C809J | A870J | PI1018FS7303 | AC803SET | JT443K |
| 09.03~09.05 | 1700 | D17A | ET2 | C809J | A870J | PI1018 | AC803SET | JT451 |
HONDA » Civic Type R
HONDA » CR-V
| 01.97~01.01 | 2000 | B20B | RD2 JPN | C307J | A852J | FS7200PI1018 | AC801J | JT451JT453 |
| 04.99~09.01 | 2000 | B20Z | RD1 LHD | C307JC805J | A852PUA852J | FS7200PI1018 | AC801J | JT451 |
| 04.99~09.01 | 2000 | B20Z | RD2 GR | C805JC307J | A852PUA852J | FS7200PI1018 | AC801J | JT451 |
| 09.01~08.04 | 2000 | K20A | RD5 JPN | C809J | A868J | FS28003FS7304API1018 | AC803SET | JT455 |
| 10.06~09.09 | 2000 | R20A2 | RE5 LHD | C809J | A8511 | PI1018FS8020AFS8020 | AC881J | JT495JT475 |
| 09.09~08.12 | 2000 | R20A2 | RE5 LHD | C809J | A8511 | PI1018FS8020FS8020A | AC881JAC881C | JT475 |
| 10.06~09.09 | 2000 | R20A2 | RE5 RHD | C809J | A8511 | FS8020PI1018FS8020A | AC881J | JT475JT495 |
| 09.04~09.06 | 2400 | K24A | RD6 JPN | C809J | A868J | FS7304AFS28003PI1018 | AC803SET | JT455JT495 |
| 09.04~10.06 | 2400 | K24A | RD7 JPN | C809J | A868J | FS7304AFS28003PI1018 | AC803SET | JT495JT455 |
| 09.04~09.06 | 2400 | K24A1 | RD7 | C809J | A868J | FS28003FS7304API1018 | AC803SET | JT455 |
| 03.07~03.10 | 2400 | K24Z4 | RE7 LHD | C809J | A8531A8510 | PI1018FS8020AFS8020 | AC881J | JT475JT495 |
HONDA » Fit
HONDA » Fit Aria
| 12.02~10.05 | 1300 | L13A | GD6 | C809J | A880J | PI1018FS7304A | AC805J | JT459JT383 |
| 12.02~09.05 | 1300 | L13A | GD7 | C809J | A880J | PI1018FS7315 | AC805J | JT383JT459 |
| 12.02~01.09 | 1500 | L15A | GD8 | C809J | A880J | PI1018FS7304A | AC805J | JT459 |
| 11.02~01.09 | 1500 | L15A | GD9 | C809J | A880J | PI1018FS7315 | AC805J | JT383JT459 |
HONDA » HR-V
| 09.98~10.03 | 1600 | D16A | GH1 JPN | C307J | A852J | PI1018FR1010FS7313 | JT457JT381K | |
| 09.98~12.05 | 1600 | D16A | GH2 | C809J | A852J | FS7313FR1010PI1018 | AC8501SET | JT381K |
| 07.99~12.05 | 1600 | D16A | GH3 | C809J | A852J | PI1018FR1010FS7313 | AC8501SET | JT457 |
| 07.99~09.05 | 1600 | D16A | GH4 JPN | C809J | A852J | PI1018FR1010FS7313 | AC8501SET | JT457JT381K |
| 09.98~12.05 | 1600 | D16W# | GH# LHD | C805JC307J | A852J | FS7313PI1018FS7200FR1010 | AC8501SET | |
| 09.98~08.01 | 1600 | D16W# | GH2 3DR LHD | C307J | A852J | FS7313PI1018FR1010FS7200 | AC8501SET | |
| 09.98~08.01 | 1600 | D16W# | GH2 3DR RHD | C307J | A852J | FS7200FR1010PI1018FS7313 | AC8501SET | JT457JT381K |
| 09.98~12.05 | 1600 | D16W1 | GH4 LHD | C805JC307J | A852J | FS7200FR1010PI1018FS7313 | AC8501SET |
HONDA » Integra
| 10.97~10.00 | 1800 | B18C6 | DC2 (TYPE R) JPN | C307J | A854J | FS7200PI1018 | JT453 | |
| 10.97~10.00 | 1800 | B18C6 | DC2 (TYPE R) LHD | C307J | A854J | FS7200PI1018 | JT453 | |
| 10.97~10.00 | 1800 | B18C7 | DC2 (TYPE R) RHD | C307J | A854J | FS7200PI1018 |
HONDA » Jazz
| 01.02~06.09 | 1200 | L12A1 | GD5 | C809J | A884J | FS7304API1018 | AC805J | |
| 09.05~05.09 | 1300 | L13A1 | JHMGD1 LHD | C809JC307J | A884J | PI1018FS7304A | AC805J | |
| 04.11~09.15 | 1300 | L13Z1 | GE6 | C809J | A8503 | PI1018FS7304FS7304A | AC8503 | JT495JT458 |
| 01.02~12.08 | 1500 | L15A1 | GD3 LHD | C809J | A884J | PI1018FS7304A | AC805J | JT459JT383 |
| 01.02~12.08 | 1500 | L15A1 | GD3 RHD | C809J | A874JA884JA880J | PI1018FS7304A | AC805J | JT459JT383 |
| 04.11~08.15 | 1500 | L15A7 | GE8 | C809J | A8503 | FS7304AFS7304FS7308PI1018 | AC8503 | JT495JT458 |
HONDA » Mobilio
| 12.01~07.08 | 1500 | L15A | GB1 | C809J | A874J | FS7304API1018 | AC805J | JT459 |
| 12.01~07.08 | 1500 | L15A | GB2 | C809J | A874J | PI1018FS7315 | AC805J | JT459 |
| 09.02~07.08 | 1500 | L15A | GK1 | C809J | A884JA874J | PI1018FS7304A | AC805J | JT459 |
| 09.02~07.08 | 1500 | L15A | GK2 | C809J | A884JA874J | PI1018FS7315 | AC805J | JT459 |
HONDA » Partner Van
| 06.03~08.10 | 1500 | L15A | GJ3 | C809J | A884J | PI1018FS7304A | AC805J | JT458JT495 |
| 07.06~08.10 | 1500 | L15A | GJ4 | C809J | A884J | PI1018FS7315 | AC805J | JT458JT495 |
HONDA » Stepwgn
HONDA » Stream
MAZDA » CX-7
MAZDA » Premacy
| 08.07~07.10 | 2000 | LF-V# | CREW | C114JOE406J | A475J | FS6300FR1012PI1006PI1018FS25005 | AC3502SET | JT318KJT312K |
| 05.10~07.16 | 2000 | LF-VD# | CWEFW | OE406JC114J | A476J | PI1018FS6300FR1012 | AC3502SET | JT318K |
| 12.04~08.07 | 2300 | L3-VE | CR3W | OE406J | A475J | FS25005FS6300PI1018PI1006FR1012 | AC3502SET | JT318KJT317K |
MITSUBISHI » Galant
MITSUBISHI » Outlander
MITSUBISHI » RVR
NISSAN » Lafesta Highway STAR
SUZUKI » Escudo
SUZUKI » Grand Vitara
SUZUKI » Jimny
| 10.98~ | 660 | K6A | JB23W | C932J | A963J | PI1018 | AC931J | JT514JT151K |
| 01.98~04.00 | 1300 | G13B | JB33W | C933J | A966J | PI1018FS29004 | AC931J | JT151K |
| 10.98~10.02 | 1300 | G13BB | JB33V | C933J | A966J | PI1018FS29004 | AC931J | JT523K |
| 10.98~08.05 | 1300 | M13A | JB43V LHD | C933J | A966J | PI1018FS29004 | AC931J | |
| 07.12~05.19 | 1300 | M13A | JB43V RHD | C933J | A966J | PI1018FS29004 | JT514 | |
| 01.98~ | 1300 | M13A | JB43W JPN | C933J | A966J | PI1018FS29004 | AC931J | JT151KJT523K |
