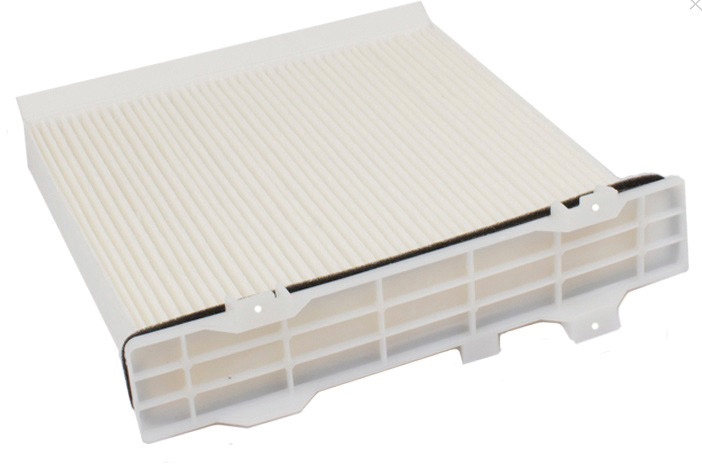

CABIN FILTER » AC3504

Feedback information

Specification

Length
239
Width
215
Structure Material
Plastic
Thickness
30
Media Material
Synthetic Fiber
Thickness2
67
Notes
only for left-side steering

Variation

AC3504B[JS]

Cross reference

MITSUBISHI
7803A028
MITSUBISHI
MR500058
MITSUBISHI
XR500058
MITSUBISHI
XR500058D
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

MITSUBISHI   »   Pajero

10.06~ 3000 6G72 V93W C307J A3017 FR1009FR1012FS6508PI1021 AC3504RAC3504 JT208K
03.09~03.18 3200 4M41 V88W C313J A3017 FC332J AC3504
09.08~ 3200 4M41 V98W C313JC304J A3017 FC332J AC3504CAC3504

MITSUBISHI   »   Pajero / Montero

02.00~12.06 2800 4M40-T V76W C313J A3017 FC332J AC3504RAC3504 JT208KJT210K1
08.06~02.15 3000 6G72 V93W C307J A3017 FR1009PI1021FS6508FR1012 AC3504 JT208K
09.14~ 3000 6G72 V93W RUS C307J A3017 PI1021FR1012FS6508FR1009 AC3504 JT208K
01.99~07.06 3200 4M41-T V68W C313J A3017 FC332J AC3504 JT210K1JT208K
02.00~12.06 3200 4M41-T V78W C313J A3017 FR1016FC332J AC3504RAC3504 JT210K1JT208K
09.06~08.14 3200 4M41-T V88W C313J A3017   AC3504
10.06~ 3200 4M41-T V98W C313J A3017 FC158J AC3504 JT208KJT437K
01.15~ 3200 4M41-T V98W C313J A3017   AC3504
08.14~ 3800 6G75 V97W GEN C307J A3017 PI1021FR1009FR1012FS6508 AC3504 JT208K

Exemption from liability: the catalog data is advisory and can be used for reference only
