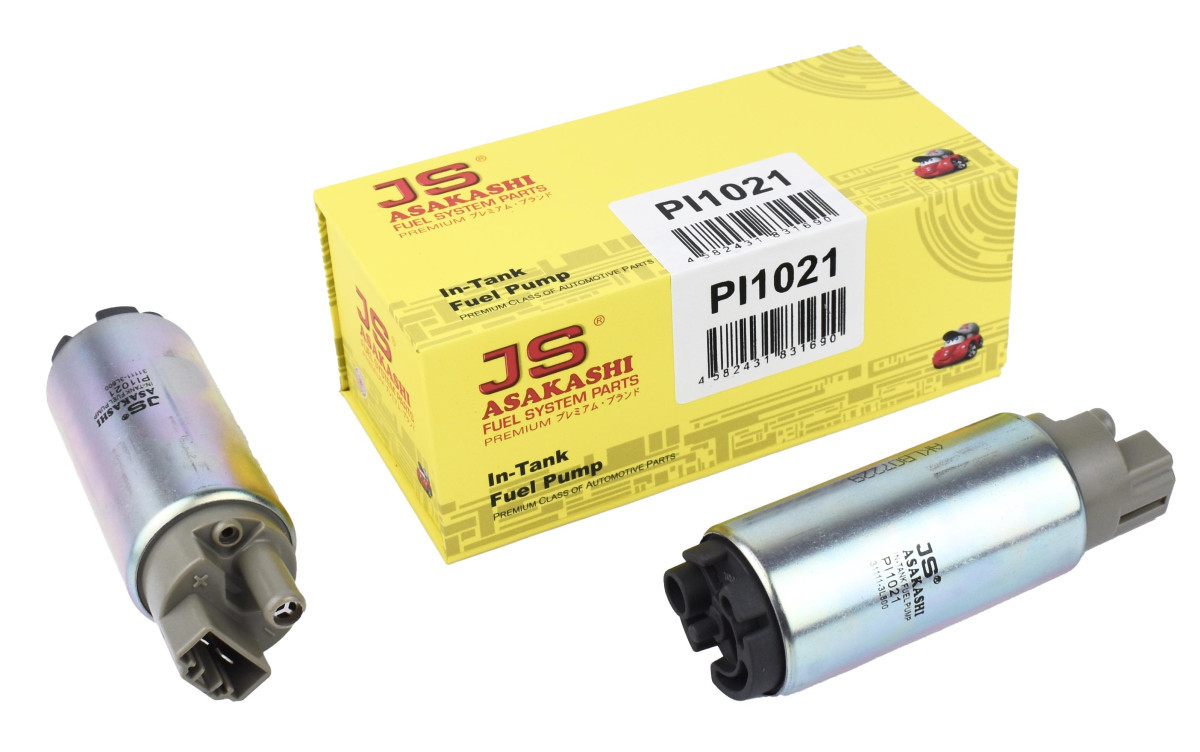

IN-TANK FUEL PUMP » PI1021

Feedback information
PI1021

Specification

Length 1/ Length 2
114
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x6mm
Pressure [Bar]
3
Flow [L/h]
110
Inner Diameter[mm]
9

Cross reference

KIA
31111-3L800
MAZDA
L327-13-35ZA
MAZDA
L327-13-35ZB
MAZDA
L327-13-35ZC
MAZDA
L327-13-35ZE
MAZDA
L509-13-350
MITSUBISHI
1760A233
MITSUBISHI
1760A294
MITSUBISHI
MR450540
MITSUBISHI
MR993339
NISSAN
17042-4M400
SUBARU
42021AA320
SUBARU
42021AC000
SUBARU
42021AC001
SUBARU
42021AC030
SUBARU
42021AC30
SUBARU
42021FA090
SUBARU
42021FA150
SUBARU
42021FA320
SUBARU
42022FE000
SUBARU
42022FE001
SUBARU
42022FE090
SUBARU
42022FJ000
SUBARU
42022SC020
TOYOTA
23220-0P180
TOYOTA
23220-31430
TOYOTA
23220-75091
TOYOTA
23221-36030
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Avante / Elantra 11

01.10~12.13 1600 G4FG PSD11 LHD C304J A9326 FS9311FR1009FS11001FR1012PI1021 AC0222 JT493
01.10~01.15 1600 G4FG PSD11 RHD C304J A9326 FS11001FS9311FR1009FR1012PI1021 AC0222 JT493

HYUNDAI   »   i40

02.11~06.15 2000 G4NA PDF12 SDN LHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN LHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN RHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
01.15~01.18 2000 G4NA PDF15 SDN LHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493

HYUNDAI   »   Sonata

11.10~01.15 2400 G4KK PGFE11 GL C304J A9422 FS11001FR1012FR1009PI1021 AC9324 JT579

HYUNDAI   »   Sonata 10

09.09~07.12 2000 G4KD PGF10 KDOM C304J A9422 FR1009FS11001PI1021FR1012 AC9324 JT493
09.09~04.14 2000 G4NA GF C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
07.12~01.15 2000 G4ND PGF10 LHD C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
07.12~04.14 2000 G4NE YF C304J A9422 PI1021FR1009FS11001FR1012 AC9324 JT579
08.10~08.14 2400 G4KE PGF10 LHD EU C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
08.10~10.12 2400 G4KE PGF10 LHD GEN C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
11.10~07.12 2400 G4KK PGFE11 US C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT579

KIA   »   K5

05.10~06.13 2000 G4KD PTF11 C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
05.10~06.13 2000 G4NA PTF11 C304J A0508 FS11001FR1009FR1012PI1021 AC9324 JT493
07.15~02.18 2000 G4ND PD416 KDOM C304J A0702 PI1021FR1012FS9329FS9322FR1009 AC9412 JT493JT581
02.18~12.20 2000 G4ND PD418 C304J A0702 FR1009FR1012PI1021FS9322 AC9412

KIA   »   Optima

03.10~03.13 2000 G4KD PTF11 LHD C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
01.10~01.13 2000 G4KD PTF11 RHD C304J A9422 FR1012FR1009FS11001PI1021 AC9324 JT493
08.13~02.16 2000 G4NA GM41 C304J A0508 PI1021FS11001FR1009FR1012 AC9324 JT493
08.13~02.16 2000 G4NA GN41 C304J A0508 PI1021FS11001FR1009FR1012 AC9324 JT493
03.10~09.13 2000 G4NA PTF11 LHD C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
08.13~02.16 2000 G4ND GN C304J A0508 FR1009FR1012FS11001PI1021 AC9324 JT493
02.12~08.13 2000 G4ND PTF11 RHD C304J A0508 PI1021FR1012FS11001FR1009 AC9324 JT493
03.10~03.14 2000 G4NE PTFE11 C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT579
03.14~03.16 2000 G4NE PTFE14 C304J A9422 FR1012PI1021FS11001FR1009 AC9324
03.10~09.13 2400 G4KE PTF11 LHD C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
03.10~09.13 2400 G4KE PTF11 RHD C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 LHD C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 RHD C304J A9422 FS11001FR1012PI1021FR1009 AC9324 JT493

KIA   »   Optima (USA)

04.13~02.16 2400 G4KK PTFE14 C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT579
03.10~09.13 2400 G4KK TF C304J A9422 PI1021FR1009FS11001FR1012 AC9324 JT579

KIA   »   Soul

10.08~01.14 1600 G4FC PAM08 LHD C304J A9319 FR1009FR1012FS13001PI1021 AC9404 JT472K
10.08~01.14 1600 G4FC PAM08 LHD RUS C304J A9319 PI1021FR1009FR1012FS13001 AC9404 JT472K
10.08~01.14 1600 G4FC PAM08 RHD C304J A9319 FR1009FS13001FR1012PI1021 AC9404 JT472K
10.08~01.14 2000 G4GC AM C304J A9319 PI1021FS13001FR1009FR1012 AC9404 JT472K

LEXUS   »   GX460

11.09~ 4600 1UR-FE URJ150L OE116J A1525 PI1021FR1012FS8002 AC108JAC108C JT568KJT525

LEXUS   »   NX200t

01.14~ 2000 8AR-FTS AGZ10L OE118J A1519 FR1012PI1021FS2129FR1009 AC108C JT394K
12.14~09.17 2000 8AR-FTS AGZ15 OE118J A1519 PI1021FR1009FR1012 AC108C JT394K
10.14~09.21 2000 8AR-FTS AGZ15L OE118J A1519 PI1021FR1009FR1012 AC108C JT544K
09.17~09.21 2000 8AR-FTS AGZ15R OE118J A1519 FR1009FR1012PI1021 AC108C JT544K

LEXUS   »   RX200T

09.15~09.22 2000 8AR-FTS AGL25R OE118J A1519 FR1009FR1012FS2124PI1021 AC111C JT394K

LEXUS   »   RX300

12.17~09.22 2000 8AR-FTS AGL25L OE118J A1519 FS2124PI1021FR1009FR1012 AC111C JT394K

MAZDA   »   Mazda 6

08.07~09.12 1800 L8 GH C114J A470J PI1021FR1012FS2507FR1009 AC401J JT318K
01.10~09.12 2000 LF AEGA11 SDN JMZ C114JOE406J A470J PI1021FR1012FR1009FS2507 AC401J JT318K
01.10~09.12 2000 LF ALGA11 SDN JM7 C114JOE406J A470J FS2507FR1009FR1012PI1021 AC401J JT318K
01.10~09.12 2000 LF GH SDN JM6 C114JOE406J A470J PI1021FR1012FR1009FS2507 AC401J JT318K
08.07~01.10 2000 LF GH14 HB C114JOE406J A470J FR1012FR1009FS2507PI1021 AC401J JT318K
08.07~11.10 2500 L5 ALGA10 GL OE406JC114J A470J PI1021FR1012FR1009FS2507 AC401J JT318K
08.07~09.12 2500 L5 GH OE406JC114J A470JA0859 FR1009FR1012PI1021FS2507 AC401J JT318K

MITSUBISHI   »   Pajero

10.06~ 3000 6G72 V93W C307J A3017 FS6508PI1021FR1009FR1012 AC3504AC3504R JT208K
09.99~11.06 3500 6G74 V75W C307J A3017 FS6508FR1009FR1012PI1021 AC3504R JT208K
08.06~07.14 3800 6G75 V97W C307J A3017 PI1021FS6508FR1009FR1012 AC3504R JT208K

MITSUBISHI   »   Pajero / Montero

08.06~02.15 3000 6G72 V93W C307J A3017 FR1009PI1021FS6508FR1012 AC3504 JT208K
09.14~ 3000 6G72 V93W RUS C307J A3017 FR1009PI1021FR1012FS6508 AC3504 JT208K
08.06~ 3500 6G74 V95W C307J A3017 FR1009PI1021FR1012FS6508   JT208K
10.06~10.12 3800 6G75 V87W C307J A3017 FR1009FS6508FR1012PI1021 AC3504R JT208K
10.06~10.12 3800 6G75 V97W C307J A3017 FR1009FS6508FR1012PI1021 AC3504R JT208K
08.14~ 3800 6G75 V97W GEN C307J A3017 FS6508PI1021FR1009FR1012 AC3504 JT208K

MITSUBISHI   »   Pajero IO

03.98~09.02 1800 4G93 H66W C307JC304JC415J A3011 PI1021FR1009FR1012 AC301J JT279K
03.98~06.07 1800 4G93 H76W C415J A3011 PI1006PI1021FR1009FR1012 AC301J JT506KJT279K
06.98~06.07 1800 4G93 H76W JPN C415J A3011 FR1012PI1006PI1021FR1009 AC301J JT506KJT279K

NISSAN   »   Cefiro

12.98~02.03 2000 VQ20DE A33 C225J A243J PI1021FR1009FS3300FR1012 AC202J JT321K

NISSAN   »   Pulsar

12.99~12.11 1300 QG13DE N16 C224J A243J PI1021FS3305FS3300FR1009FR1012FS3301   JT319K

NISSAN   »   Serena

08.99~12.01 2000 SR20DE C24 C224J A243J FR1009FR1012PI1021FS3300 AC201J JT321K

NISSAN   »   Sunny

10.98~11.04 1300 QG13DE B15 C224J A243J PI1021FR1009FS3301FR1012FS3300FS3306 AC201J JT319K
10.98~11.04 1500 QG15DE FB15 C224J A243J FS3301PI1021FR1009FS3306FR1012FS3300 AC201J JT319K
10.98~06.02 1600 SR16VE JB15 C224J A243J FR1009FR1012FS3300PI1021 AC201J
10.98~06.02 1800 QG18DD QB15 C224J A243J PI1012FR1009PI1021FR1012FS3301 AC201J JT303K
12.99~07.09 1800 QG18DE N16 C224J A243J FR1012FS3306PI1021FS3305FS3301FR1009FS3300 AC201J JT319K

NISSAN   »   Tino

12.98~03.03 1800 QG18DE V10 C224J A243J PI1021FR1009FR1012FS3301FS3300 AC201J JT319K
12.98~10.02 2000 SR20DE HV10 C224J A243J PI1021FS3300FR1009FR1012 AC201J JT303K

SUBARU   »   Exiga

04.08~04.15 2000 EJ204 YA4 C901J A926J PI1021FS27003FR1009FR1012 AC9321 JT520JT521K

SUBARU   »   Forester

09.07~09.10 2000 EJ204 SH5 JPN C901J A926J FR1012PI1021FS27002FR1009 AC9321 JT468P
12.07~05.13 2000 EJ204 SH5L LHD C901J A926J PI1021FR1009FS27002FR1012 AC9321 JT468P
11.01~01.05 2000 EJ205 SG5 JPN C901J A243J PI1021FS317JFR1009FR1012 AC9322 HC0014
01.05~12.07 2000 EJ205 SG5 JPN C901J A243J FS317JFR1009FR1012PI1021 AC9322 HC0014
11.01~01.08 2000 EJ205 SG5CK RHD C901J A243J PI1021FR1009FS317JFR1012 AC9322 HC0014
10.10~02.13 2000 FB20A SHJKS5 KE RHD C901J A926J FS27002FR1009FR1012PI1021 AC9321 JT468P
07.10~05.13 2000 FB20B SHJLS5 LHD C901J A926J PI1021FR1009FS27002FR1012 AC9321 JT468P
11.03~01.08 2500 EJ255 SG9 JPN C901J A243J FR1009FR1012PI1021FS317J AC9322

SUBARU   »   Impreza

09.94~07.00 1500 EJ15# GF1 JPN C902J A923JA243J FR1009FR1012PI1021FS317J   HC0014
09.11~ 1600 FB16 GP3 C901J A926J FS27002FR1009FR1012PI1021 AC9321
09.11~10.16 1600 FB16A GJ2 JPN C901J A926J FR1012PI1021FS27002FR1009 AC9321 JT519JT520
11.11~11.14 1600 FB16A GJ3 JPN C901J A926J FR1009FR1012FS27002PI1021 AC9321 JT519JT520
11.14~10.16 1600 FB16A GJ3 JPN C901J A926J PI1021FS27002FR1026FR1009FR1012 AC9321 JT519JT520
09.11~09.16 1600 FB16A GP2 C901J A926J PI1021FR1009FS27002FR1012 AC9321 JT519JT520
09.94~01.01 2000 EJ20E GF8 LHD C902J A243J FR1009FS317JFR1012PI1021 AC901J JT301K
09.11~10.16 2000 FB20A GJ6 JPN C901J A926J FR1012FS27002PI1021FR1009 AC9321 JT520JT519
09.11~10.16 2000 FB20A GJ7 JPN C901J A926J FR1009FR1012FS27002PI1021 AC9321 JT520JT519
09.11~11.14 2000 FB20A GP7 JPN C901J A926J FS27002PI1021FR1009FR1026FR1012 AC9321 JT519JT520

SUBARU   »   Impreza WRX

11.02~06.07 2000 EJ205 GGA JPN C901J A243J PI1021FR1009FR1012FS317J AC902C
10.00~11.02 2000 EJ205 GGA RHD C902J A243J FR1012PI1021FS317JFR1009 AC902C

SUBARU   »   Impreza WRX STI

04.00~11.02 2000 EJ207 GDBL LHD C902J A243J FS317JFR1009FR1012PI1021 AC902C

SUBARU   »   Legacy

10.93~12.98 2000 EJ20D BG5 JPN WGN C902J A243J FR1012PI1021FR1009FS317J   JT301K
10.93~12.98 2000 EJ20E BG5 JPN WGN C902JC901J A243J FS317JFR1009FR1012PI1021

SUBARU   »   XV

06.12~08.17 1600 FB16 JF1GP3 C901J A926J FS27002PI1021FR1009FR1012FR1026 AC9321 JT519JT520
07.11~08.17 2000 FB20 GP7 JPN C901J A926J FS27002FR1009FR1012PI1021 AC9321 JT519JT520JT542
07.11~08.17 2000 FB20 JF1GP7 RHD C901J A926J PI1021FR1026FS27002FR1009FR1012 AC9321 JT519JT520
07.11~08.17 2000 FB20 PLPGP7 C901J A926J PI1021FR1009FR1026FR1012FS27002 AC9321 JT519JT520
10.15~08.17 2000 FB20A GP7 PLP# RHD C901J A926J PI1021FR1009FS27002FR1012 AC9321 JT519JT520
07.16~08.17 2000 FB20B GP7 LHD C901J A926J FR1009PI1021FR1012FS27002 AC9321 JT542JT519JT520
07.11~07.16 2000 FB20B JF1GP7 LHD C901J A926J FR1009PI1021FR1012FS27002 AC9321 JT520JT519JT542

TOYOTA   »   4 Runner

11.09~08.11 2700 2TR-FE TRN280L C111T A194J FS8002PI1021FR1009FR1012   JT435K
08.09~05.15 4000 1GR-FE GRN280L OE116J A1525 FS3213FS8002FR1009PI1021FR1012 AC108C JT437K
08.09~08.19 4000 1GR-FE GRN285L OE116J A1525 FR1009PI1021FR1012FS3213FS8002 AC108J JT437K

TOYOTA   »   FJ Cruiser

01.06~07.14 4000 1GR-FE GSJ10L OE116JC114T A1525A1011 FR1012FS8002PI1021FR1009 AC1504 JT437K
11.10~01.18 4000 1GR-FE GSJ15W OE116J A1525 FS8002PI1021FR1009FR1012FS3213 AC102J JT437K

TOYOTA   »   Harrier

05.17~05.20 2000 8AR-FTS ASU60R OE118J A1519 FS2129PI1021FR1009FR1012 AC108CAC108J JT394K
05.17~05.20 2000 8AR-FTS ASU60W OE118J A1519 FR1009FR1012FS2129PI1021 AC108C JT394K
05.17~05.20 2000 8AR-FTS ASU65W OE118J A1519 FS2129PI1021FR1009FR1012 AC108C JT394K

TOYOTA   »   Highlander

12.13~11.16 3500 2GR-FE GSU55R OE118J A1519 FS21011AFR1009FR1012FS21011PI1021 AC108J JT394K

TOYOTA   »   Land Cruiser Prado 150

08.09~ 2700 2TR-FE TRJ150L C111T A194J FS2125FS3213PI1021FR1009FR1012 AC108CAC108J JT435K
08.09~ 2700 2TR-FE TRJ150W OE116J A194J FS2125PI1021FS3213FR1009FR1012 AC108J JT435KJT541HK
06.09~ 4000 1GR-FE GRJ150L OE116J A1525 FS8002FR1012FS3213PI1021FR1009 AC108J JT437K
08.09~ 4000 1GR-FE GRJ150W OE116J A1525 PI1021FS3213FR1009FS8002FR1012 AC108J JT437K
09.09~ 4000 1GR-FE GRJ151W OE116J A1525 FS3213PI1021FR1009FS8002FR1012 AC108J JT437K
