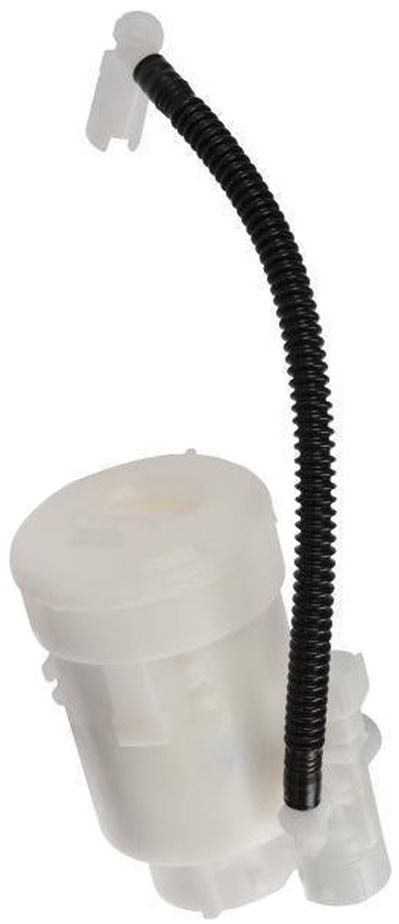

FUEL FILTER (IN-TANK) » FS9311

Feedback information
FS9311

Specification

Length 1/ Length 2
120
Outer Diameter 1/ Outer Diameter 2
73
Diameter 1/ Diameter 2 [mm]
39

Cross reference

HYUNDAI
31112-3X000
KIA
31112-3X000
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Accent 11

09.11~05.14 1600 G4FD SB C304J A9614 FS11001FS9311 AC9312 JT493

HYUNDAI   »   Accent 15

09.14~01.18 1600 G4FD PSB15 SDN US C304J A9614 FS9311 AC9312 JT493

HYUNDAI   »   Avante / Elantra 11

08.10~08.13 1600 G4FD PSD11 LHD KDOM C304J A9326 FS9311 AC0222 JT493
01.10~12.13 1600 G4FG PSD11 LHD C304J A9326 FS11001FS9311PI1021FR1009FR1012 AC0222 JT493
01.10~01.15 1600 G4FG PSD11 RHD C304J A9326 FS11001FS9311PI1021FR1009FR1012 AC0222 JT493
09.11~07.13 1800 G4NB PSD11 LHD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   Avante / Elantra 14

07.13~09.15 1600 G4FG MD C304J A9326 FS9311 AC0222 JT493
07.13~09.15 1800 G4NB D#41 PSD14 LHD C304J A9326 FS9311 AC0222 JT493
07.13~09.15 2000 G4NA MD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   Elantra

09.11~07.13 1800 G4NB PSD11 RHD AUS C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   i30

09.11~03.15 1600 G4FG D351 5DR RHD C304J A9326 FS9311 AC0222 JT493
09.11~03.15 1800 G4NB PA512 RHD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   Veloster

03.11~01.15 1600 G4FD TC6 US C304J A9614 FS9311FR1012 AC9312
01.15~02.18 1600 G4FD TC6AD C304J A9614 FS9311FR1012 AC9312
03.11~01.15 1600 G4FD TE61D C304J A9614 FS9311FR1012 AC9312
03.11~01.15 1600 G4FJ PGS11 GL C304J A9614 FS9311 AC9312
03.11~01.15 1600 G4FJ PGS11 RHD SG C304J A9614 FS9311 AC9312 JT493
03.11~01.15 1600 G4FJ PGS11 US C304J A9614 FS9311FR1012 AC9312 JT493
01.15~01.18 1600 G4FJ PGS15 RHD SA C304J A9614 FS9311 AC9312
01.15~01.18 1600 G4FJ PGS15 RHD SG C304J A9614 FS9311 AC9312
01.15~02.18 1600 G4FJ PGS15 US C304J A9614 FS9311 AC9312

KIA   »   Carens 12

01.13~09.16 1600 G4FD HT81 LHD C307J A9323 FS9311 AC0222
01.13~09.16 1600 G4FD HU81 LHD 7P MES C304J A9323 FS9311 AC0222 JT493
01.13~09.16 1600 G4FD HU81 RHD C304J A9323 FS9311 AC0222 JT493
12.12~08.16 2000 G4NA WGN 7P LHD PA412 C304J A9323 FS9311 AC0222 JT493
01.13~09.16 2000 G4NC HU C307J A9323 FS9311 AC0222 JT493
01.13~09.16 2000 G4ND RPA412 C304J A9323 FS9311 AC0222 JT493

KIA   »   Carens 16

08.16~07.18 1600 G4FD PA416 C307J A9323 FS9311FS9326 AC0222
08.16~07.18 2000 G4NC PA416 C307J A9323 FS9311FS9326 AC0222 JT493

KIA   »   Cerato III Forte Coupe

01.13~03.16 1600 G4FJ FZ61 LHD C304J A0556 FS9311FR1012 AC0222 JT493
01.13~03.16 1600 G4FJ FZ61 RHD C304J A0556 FS9311FR1012 AC0222 JT493
01.13~03.16 2000 G4NA FZ61 COUPE RHD C304J A9326 FS9311FR1012 AC0222

KIA   »   Cerato III Forte Sedan

06.12~03.16 1600 G4FG F#411 SDN LHD C304J A9326 FS9311FR1012 AC0222 JT493
09.11~03.16 1600 G4FG F#411 SDN LHD RUS C304J A9326 FS9311FR1012 AC0222 JT493
04.13~03.16 1600 G4FG F#411 SDN RHD C304J A9326 FS9311FR1012 AC0222 JT493
01.13~03.16 1600 G4FG FX41 C304J A9326 FS9311 AC0222 JT493
12.12~11.16 1600 G4FG FX41 RHD C304J A9326 FS9311FR1012 AC0222 JT493
01.13~03.16 1600 G4FG FZ511 5DR HB C304J A9326 FS9311 AC0222 JT493
01.16~03.18 1600 G4FG SA716 C304J A9326 FS9311FS9326 AC0222 JT493
08.12~03.16 2000 G4NA FK41 SDN LHD C304J A9326 FS9311FR1012 AC0222 JT493
01.15~04.21 2000 G4NA VTN C304J A9326 FS9311FR1012 AC0222

KIA   »   Cerato III Forte Sedan 16

03.16~08.20 1600 G4FG F#411 SDN LHD C304J A9326 FS9311 AC0222 JT493
03.16~08.20 1600 G4FG F#411 SDN RHD C304J A9326 FS9311 AC0222 JT493
03.16~08.20 1600 G4FG FZ511 C304J A9326 FS9311 AC0222 JT493
04.15~06.18 2000 G4NA FK51 HB AU C304J A9326 FS9311 AC0222 JT493
03.16~08.20 2000 G4NA YD SDN RU C304J A9326 FS9311 AC0222 JT493

KIA   »   Forte

02.13~02.16 1800 G4NB FX4A SDN US C304J A9326 FS9311 AC0222 JT493JT618
04.15~06.18 2000 G4NA FK4A SDN US C304J A9326 FS9311 AC0222 JT574K

KIA   »   K3

01.16~02.20 1600 G4FD COUPE VTN C304J A0556 FS9311 AC0222
09.12~12.15 1600 G4FD FK41 SDN KDOM C304J A9326 FS9311FR1012 AC0222 JT493
04.13~03.16 1600 G4FG F#411 SDN RHD SG C304J A9326 FS9311 AC0222 JT493
12.12~02.18 1600 G4FG FX41 RHD C304J A9326 FS9311 AC0222 JT493
12.12~02.18 1600 G4FJ FZ41 C304J A0556 FS9311 AC0222
12.12~02.18 2000 G4NA FZ41 CERATO C304J A9326 FS9311FR1012 AC0222 JT493

KIA   »   Rio 15

01.15~06.17 1600 G4FD PIH15 SDN C304J A9614 FS9311 AC9312 JT493

KIA   »   Soul

08.13~01.17 1600 G4FD PB213 US C304J A9614 FS9311 AC0230 JT493
08.13~01.17 1600 G4FG PB213 RHD C304J A9614 FS9311 AC0230 JT493
08.16~01.19 1600 G4FG PB216 RHD C304J A9614 FS9311 AC0230
08.13~01.17 1600 G4FG SPB213 LHD C304J A9614 FS9311 AC0230 JT493
08.16~01.19 1600 G4FG SPB216 LHD C304J A9614 FS9311 AC0230 JT581
08.13~01.17 2000 G4NC PB213 US C304J A9614 FS9311 AC0230 JT493
