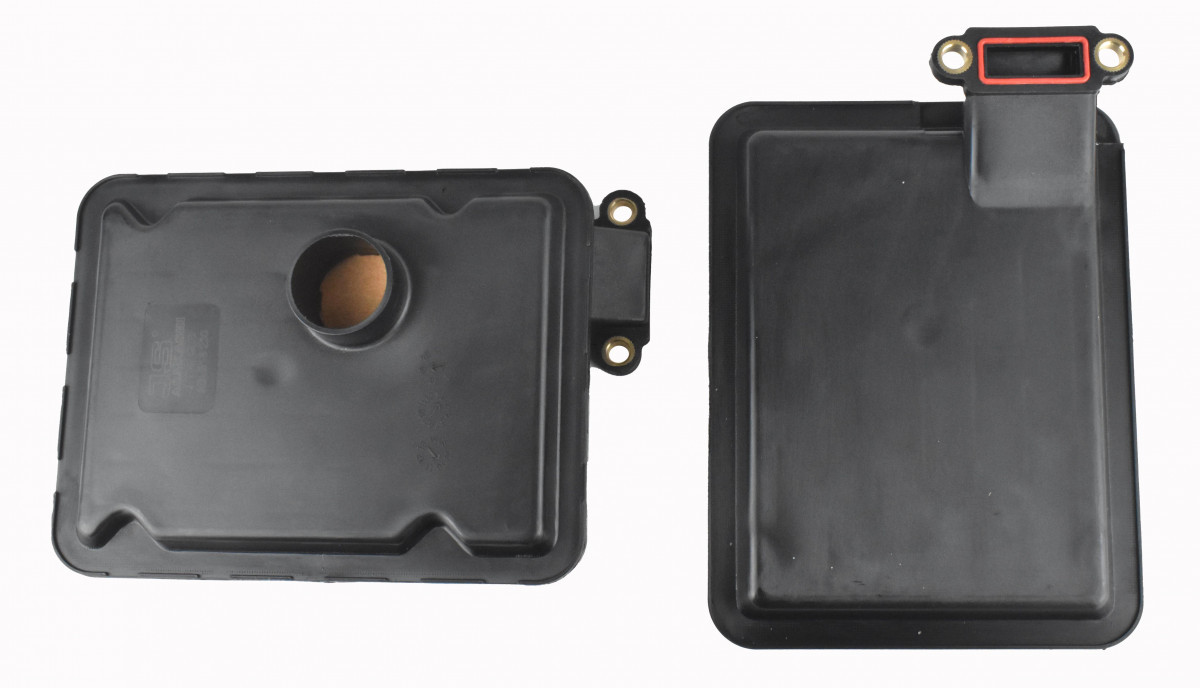

TRANSMISSION FILTER » JT493

Feedback information
JT493

Specification

Size A
188
Size B
131
Height (mm)
52
Transmission Numbers
A6MF1, A6MF2, A6MF3
Notes
Transmission: A6MF1, A6MF2, A6MF3 Hyundai, Kia

Variation

JT493K[JS]

Cross reference

GREAT WALL
46321-3B800
HYUNDAI
46321-26000
HYUNDAI
46321-3B600
KIA
46321-26000
KIA
46321-3B600
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HAVAL   »   H2

07.14~12.21 1500 GW4G15B CC7150FM C225J A0820 FS618J AC0365 JT493

HYUNDAI   »   Accent 11

09.11~05.14 1600 G4FD SB C304J A9614 FS11001FS9311 AC9312 JT493

HYUNDAI   »   Avante / Elantra 11

08.10~08.13 1600 G4FD PSD11 LHD KDOM C304J A9326 FS9311 AC0222 JT493
01.10~12.13 1600 G4FG PSD11 LHD C304J A9326 FR1009FS11001FR1012PI1021FS9311 AC0222 JT493
01.10~01.15 1600 G4FG PSD11 RHD C304J A9326 FR1012PI1021FS11001FS9311FR1009 AC0222 JT493
09.11~07.13 1800 G4NB PSD11 LHD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   Avante / Elantra 14

08.13~08.15 1600 D4FB MD OE0073 A0556 FC9304 AC0222 JT493
07.13~09.15 1600 G4FG MD C304J A9326 FS9311 AC0222 JT493
07.13~09.15 1800 G4NB MD C304J A9326 FS9311 AC0222 JT493
01.14~01.16 1800 G4NB PSDA14 US C304J A9326   AC0222 JT493
07.13~09.15 2000 G4NA MD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   Creta

12.19~ 1500 D4FA PFH20 RHD OE0073 A0556 FC9303 AC9413 JT493
07.15~06.18 1600 D4FB PA016 LHD OE0073 A0556 FC9304 AC0222 JT493
07.15~06.18 1600 D4FB PA016 RHD OE0073 A0556 FC9304 AC0222 JT493
07.15~06.18 1600 G4FG PA016 LHD C304J A9323 FS9312 AC0222 JT493
07.15~06.18 1600 G4FG PA016 RHD C304J A9323 FS9312 AC0222 JT493
08.16~05.21 2000 G4NA M017 RU C304J A0715 FS9312 AC0239 JT581JT493

HYUNDAI   »   Grandeur HG

11.11~06.14 2400 G4KJ HG C304J A9422 FS11001 AC9324 JT493

HYUNDAI   »   i30

09.11~03.15 1600 G4FD D351 C307J A9326   AC0222 JT493
09.11~04.15 1600 G4FD PA612 5DR C307J A9326   AC0222 JT493
04.15~02.17 1600 G4FG D351 C307J A9326 FS9308PI1023 AC0222 JT493
09.11~03.15 1600 G4FG D351 5DR RHD C304J A9326 FS9311 AC0222 JT493
01.12~03.15 1600 G4FG PA612 3DR C304J A9326 PI1023FS9308 AC0222 JT493
01.15~07.17 1600 G4FG PA616 5DR LHD C304J A9326 PI1023FS9308 AC0222 JT493
09.11~03.15 1800 G4NB PA512 RHD C304J A9326 FS9311 AC0222 JT493

HYUNDAI   »   i40

02.11~06.15 1700 D4FD DF OE0073 A9323 FC9303 AC9312 JT493
02.11~06.15 1700 D4FD LC81 WGN LHD EU OE0073 A9323 FC9303 AC9312 JT493
02.11~06.15 1700 D4FD LC81 WGN LHD KDOM OE0073 A9323 FC9303 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 SDN LHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN LHD C304J A9323 FR1009FR1012PI1021FS11001 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN RHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
01.15~01.18 2000 G4NA PDF15 SDN LHD C304J A9323 FS11001FR1009FR1012PI1021 AC9312 JT493
02.11~06.15 2000 G4NC LC81 C304J A9323 FS11001 AC9312 JT493

HYUNDAI   »   i45

08.10~08.12 2000 G4KD EC41 C304J A9422 FS11001 AC9324 JT493
08.12~ 2000 G4NA EC41 SG RHD C304J A0508 FS11001 AC9324 JT493
08.10~08.12 2400 G4KE EC41 C304J A9422 FS11001 AC9324 JT493
01.10~04.14 2400 G4KJ EC41 ARL C304J A9422 FS11001 AC9324 JT493

HYUNDAI   »   iX 20

01.15~01.19 1600 G4FC JC C304JC307J A9319 FS9308 AC9410 JT493

HYUNDAI   »   iX 35

01.14~06.15 1600 G4FD TMZ10 LHD C307J A9323 FS11004 AC9407C JT493
11.09~06.15 2000 G4KD LM C304J A9323 FS9219 AC9312 JT493
11.09~08.13 2000 G4KD TM10 LHD C304J A9323 FS9219PI1023 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 PI1023FS9219 AC9312 JT493
08.09~09.13 2000 G4KD TMZ10 RUS C304JC307J A9323 PI1023FS9219FS11004 AC9407C JT493
07.13~06.15 2000 G4NA TMZ14 RUS C304J A9323 FS11004 AC9407C JT493

HYUNDAI   »   Santa FE

08.15~01.19 2400 G4KE PDM15 LHD C307J A0552 FS11004PI1023 AC9324 JT493
08.15~01.19 2400 G4KE PDM15 RHD C304J A0552 PI1023FS11004 AC9324 JT493
02.18~06.20 2400 G4KE PS118 RHD C304J A9428 FS9312 AC9409C JT493

HYUNDAI   »   Santa Fe 06

12.05~07.09 2000 D4EA CM OE0076 A9424 FC9303 AC11004 JT493

HYUNDAI   »   Santa FE 10

08.09~09.12 2400 G4KE CMA10 US C304J A9422   AC11004 JT493
08.09~09.12 2400 G4KE PCM10 LHD C304J A9422 FS13002 AC11004 JT493
08.09~09.12 2400 G4KE SH81 C304JC307J A9422 FS0081FS13002 AC11004 JT493

HYUNDAI   »   Santa FE 12

05.12~07.15 2400 G4KE DM LHD C307JC304J A0552 FS11004PI1023 AC9324 JT493
05.12~07.15 2400 G4KE DM RHD C304J A0552 PI1023FS11004 AC9324 JT493
05.12~07.15 2400 G4KJ PDM12 C307J A0552 FS11004 AC9324 JT493

HYUNDAI   »   Sonata 10

08.10~02.13 2000 G4KA YF C307J A9422     JT493
09.09~07.12 2000 G4KD PGF10 KDOM C304J A9422 PI1021FR1012FR1009FS11001 AC9324 JT493
09.09~04.14 2000 G4KD YF C307JC304J A9422 FS11001 AC9324 JT493
09.09~04.14 2000 G4NA GF C304J A0508 FR1009FR1012PI1021FS11001 AC9324 JT493
07.12~01.15 2000 G4ND PGF10 LHD C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
09.09~04.14 2000 L4NA GF C304J A0508 FE0092 AC9324 JT493
08.10~08.14 2400 G4KE PGF10 LHD EU C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
08.10~10.12 2400 G4KE PGF10 LHD GEN C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
09.09~07.12 2400 G4KJ PGFA10 US C304J A9422 FS11004 AC9324 JT493
09.09~03.14 2400 G4KJ YF C307J A9422 FS9320 AC9324 JT579JT493

HYUNDAI   »   Sonata 14

04.14~03.17 2000 G4KH LF C304J A0702 FS9322 AC0243 JT493
04.14~03.17 2000 G4NA KEURPC114 RHD C304J A0702 FS9322 AC0243 JT493
04.14~03.17 2000 G4NA PC114 LHD C304J A0702 FS9322 AC0243 JT493
04.14~03.17 2000 G4ND KEURPC114 C304J A0702 FS9322 AC0243 JT493
12.14~03.17 2000 G4NG LF C304J A0702 FS9322 AC0243 JT493
04.14~03.17 2000 L4NA PC114 DOM C304J A0702 FE1035 AC0243 JT493
04.14~03.17 2400 G4KE PC114 LHD C304J A0702 FS9322 AC0243 JT493
04.14~03.17 2400 G4KJ LF C304J A0702 FS9322 AC0243 JT493
04.14~07.17 2400 G4KJ PC215 US/CND C304J A0702 FS9330 AC9412 JT493

HYUNDAI   »   Sonata 17

03.17~01.20 2000 G4NA KEURPC117 C304J A0702 FS9322 AC0243 JT493
03.17~01.20 2400 G4KE PC117 LHD C304J A0702 FS9329 AC0243 JT493
09.16~01.20 2400 G4KJ PC117 RU C304J A0702 FS9324 AC0243 JT493

HYUNDAI   »   Tucson 10

11.09~08.13 2000 G4KD TM10 LHD C304J A9323 FS9219PI1023 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 PI1023FS9219FS11004 AC9312 JT11001JT493
10.09~08.13 2400 G4KE TM10 LHD GL C304J A9323 PI1023FS9219 AC9312 JT493
10.09~08.13 2400 G4KE TM10 LHD US C304J A9323 PI1023FS9219 AC9312 JT493
10.09~08.13 2400 G4KE TM10 RHD C304J A9323 PI1023FS9219 AC9312 JT493

HYUNDAI   »   Tucson 14

08.13~06.15 2000 G4NA PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~05.15 2000 G4NA PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KJ PTM14 US C304J A9323 FS11004 AC9312 JT493

HYUNDAI   »   Tucson 15

04.15~08.18 1600 G4FJ PD315 RHD C304J A0638 FS9318 AC0239C JT493
12.14~08.18 2000 G4NA PD315 LHD C304J A0638 FS9312 AC0239CAC0239 JT493
04.15~08.18 2000 G4NA PD315 RHD C304J A0638 FS9312 AC0239CAC0239 JT493
04.15~08.18 2000 G4NC PD315 C304J A0638 FS9318 AC0239C JT493
04.15~08.18 2000 G4NC PD315 LHD C304J A0638 FS9318 AC0239 JT493

HYUNDAI   »   Tucson 16

04.15~08.18 1600 G4FD PD716 C307J A0638 FS9318 AC9413 JT493
04.15~08.18 2000 G4NA PD716 GEN C304J A0638 FS9312 AC9413 JT493
04.15~08.18 2000 G4NA PD716 RUS C304J A0638 FS9312 AC9413 JT493

HYUNDAI   »   Tucson 18

01.18~09.20 2000 G4NA PD318 C304J A0638 FS9312 AC0239C JT493
01.18~09.20 2000 G4NA PD718 GEN C304J A0638 FS9312 AC9413 JT493
01.18~09.20 2000 G4NA PD718 RUS C304J A0638 FS9312 AC9413 JT493
08.18~09.20 2000 G4NC PD318 RHD AU C304J A0638 FS9318 AC0239C JT493

HYUNDAI   »   Tucson 21

07.20~ 2000 G4NC D3W C304J A0638 FS9318 AC0239 JT493

HYUNDAI   »   Veloster

01.12~01.15 1600 G4FG TC61C C304J A9614 FS11001 AC9312 JT493
03.11~01.15 1600 G4FJ PGS11 RHD SG C304J A9614 FS9311 AC9312 JT493
03.11~01.15 1600 G4FJ PGS11 US C304J A9614 FS9311FR1012 AC9312 JT493

KIA   »   Carens 12

01.13~09.16 1600 G4FD HU81 RHD C304J A9323 FS9311 AC0222 JT493
12.12~08.16 1700 D4FD WAGON - 5DR 7P OE0073 A9323 FC9303 AC0222 JT493
01.13~09.16 2000 G4NC HU C307J A9323 FS9311 AC0222 JT493
01.13~09.16 2000 G4ND RPA412 C304J A9323 FS9311 AC0222 JT493
01.13~09.16 2000 L4NA DOMPA412 C304J A9323   AC0222 JT493

KIA   »   Carens 16

08.16~07.18 1700 D4FD WAGON - 5DR 7P OE0073 A9323 FC9303 AC0222 JT493
08.16~07.18 2000 G4NC PA416 C307J A9323 FS9326FS9311 AC0222 JT493

KIA   »   Cee'd 12

03.12~07.15 1600 G4FG PA212 HB LHD C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Cee'd 16

05.15~07.18 1600 G4FG A216 C307J A9326 FS9327 AC0222 JT493

KIA   »   Cee'd SW

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Cerato

01.08~04.13 1600 G4FC F#511 RHD 5DR C304J A9320 FS9308PI1023 AC9320SET JT493
01.08~04.13 1600 G4FC FU41 SDN RHD C304J A9320 FS9308PI1023 AC9320SET JT493JT472K
01.08~04.13 1600 G4FC FW41 SDN LHD C304J A9320 PI1023FS9308 AC9312 JT493JT472K
01.08~04.13 1600 G4FC FW41 SDN RHD C304J A9320 PI1023FS9308 AC9320SET JT472KJT493
10.08~03.13 2000 G4KD FH22 SDN RHD C304J A9320 FS9308 AC9324AC9320SET JT493
10.08~03.13 2000 G4KD FW61 COUPE RHD C304J A9320 FS9308PI1023 AC9320SET JT472KJT493
10.08~03.13 2000 G4KD HB RHD C304J A9320 FS9308 AC9320SET JT493

KIA   »   Cerato III Forte Coupe

01.13~03.16 1600 G4FJ FZ61 LHD C304J A0556 FR1012FS9311 AC0222 JT493
01.13~03.16 1600 G4FJ FZ61 RHD C304J A0556 FR1012FS9311 AC0222 JT493

KIA   »   Cerato III Forte Sedan

06.13~02.16 1600 F4FA FZ414 C304J A9326   AC0222 JT493
06.12~03.16 1600 G4FG F#411 SDN LHD C304J A9326 FS9311FR1012 AC0222 JT493
09.11~03.16 1600 G4FG F#411 SDN LHD RUS C304J A9326 FS9311FR1012 AC0222 JT493
04.13~03.16 1600 G4FG F#411 SDN RHD C304J A9326 FS9311FR1012 AC0222 JT493
01.13~03.16 1600 G4FG FX41 C304J A9326 FS9311 AC0222 JT493
12.12~11.16 1600 G4FG FX41 RHD C304J A9326 FS9311FR1012 AC0222 JT493
01.13~03.16 1600 G4FG FZ511 5DR HB C304J A9326 FS9311 AC0222 JT493
01.16~03.18 1600 G4FG SA716 C304J A9326 FS9326FS9311 AC0222 JT493
08.12~03.16 2000 G4NA FK41 SDN LHD C304J A9326 FR1012FS9311 AC0222 JT493

KIA   »   Cerato III Forte Sedan 16

03.16~08.20 1600 G4FG F#411 SDN LHD C304J A9326 FS9311 AC0222 JT493
03.16~08.20 1600 G4FG F#411 SDN RHD C304J A9326 FS9311 AC0222 JT493
03.16~08.20 1600 G4FG FZ511 C304J A9326 FS9311 AC0222 JT493
04.15~06.18 2000 G4NA FK51 HB AU C304J A9326 FS9311 AC0222 JT493
03.16~08.20 2000 G4NA YD SDN RU C304J A9326 FS9311 AC0222 JT493

KIA   »   Forte

02.13~02.16 1800 G4NB FX4A SDN US C304J A9326 FS9311 AC0222 JT493

KIA   »   K3

04.13~03.16 1600 G4FG F#411 SDN RHD SG C304J A9326 FS9311 AC0222 JT493
12.12~02.18 1600 G4FG FX41 RHD C304J A9326 FS9311 AC0222 JT493
12.12~02.18 2000 G4NA FZ41 C304J A9326 FR1012FS9311 AC0222 JT493

KIA   »   K5

05.10~06.13 2000 G4KD PTF11 C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
05.10~06.13 2000 G4NA PTF11 C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
06.13~07.15 2000 L4NA PTF14 C304J A0508 FE1035 AC9324 JT493
05.10~06.13 2400 G4KJ PTF11 C304J A9422 FS11001 AC9324 JT493

KIA   »   Optima

03.10~03.13 2000 G4KD PTF11 LHD C304J A9422 FR1009FR1012PI1021FS11001 AC9324 JT493
01.10~01.13 2000 G4KD PTF11 RHD C304J A9422 FR1009FS11001PI1021FR1012 AC9324 JT493
08.13~02.16 2000 G4NA GM41 C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
08.13~02.16 2000 G4NA GN41 C304J A0508 PI1021FS11001FR1009FR1012 AC9324 JT493
10.15~02.18 2000 G4NA PD416 LHD C304J A0702 FS9322 AC9412 JT493
08.13~02.16 2000 G4ND GN C304J A0508 FR1012FS11001PI1021FR1009 AC9324 JT493
10.15~04.18 2000 G4ND PD416 LHD C304J A0702 FS9322 AC9412 JT581JT493
10.15~04.18 2000 G4ND PD416 RHD C304J A0702 FS9322FS9329 AC9412 JT493JT581
02.12~08.13 2000 G4ND PTF11 RHD C304J A0508 PI1021FR1012FS11001FR1009 AC9324 JT493
10.15~02.18 2400 G4KE PD416 SDN LHD C304J A0702 FS9329 AC9412 JT493
10.15~02.18 2400 G4KE PD416 SDN RHD C304J A0702 FS9322 AC9412 JT493
03.10~09.13 2400 G4KE PTF11 LHD C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
03.10~09.13 2400 G4KE PTF11 RHD C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 LHD C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 RHD C304J A9422 FS11001FR1012PI1021FR1009 AC9324 JT493
02.18~01.20 2400 G4KJ PD418 C304J A0702 FS9324 AC9412 JT493

KIA   »   Optima (USA)

04.14~ 2000 G4KH TF C304J A0702 FS9322 AC0243 JT493
10.15~02.18 2400 G4KJ PD416 C304J A0702 FS9330 AC0243 JT493
10.15~02.18 2400 G4KJ PD516 C304J A0702 FS9330 AC0243 JT493
03.10~09.13 2400 G4KJ PTF11 C304J A9422   AC9324 JT493
12.11~09.13 2400 G4KJ TFA12 C304J A9422 FS9320 AC9324 JT493
04.13~02.16 2400 G4KJ TFA14 C304J A9422 FS9320 AC9324 JT493

KIA   »   Pro Cee'd

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Rio 12

03.11~03.15 1600 G4FD PIH12 4DR SDN LHD C304J A9614 FS11001 AC9328 JT493

KIA   »   Rio 15

01.15~06.17 1600 G4FD PIH15 SDN C304J A9614 FS9311 AC9312 JT493

KIA   »   Rondo

01.13~12.17 1700 D4FD HU81 OE0073 A9323 FC9303 AC0222 JT493

KIA   »   Sorento (USA)

08.14~04.18 2000 G4KH PC615 C304J A9428 FS9318   JT493JT11001
11.14~11.20 2400 G4KE UM C304J A9428 FS9312 AC9411 JT493
05.09~07.12 2400 G4KE XM C304J A9422   AC11004 JT493
11.14~11.20 2400 G4KJ PC615 C304J A9428 FS9318   JT493
07.12~12.14 2400 G4KJ XM C304J A0552   AC11004 JT493

KIA   »   Sorento 09

05.09~07.12 2400 G4KE XM09 C304J A9422 FS13002 AC9401 JT493

KIA   »   Sorento 12

07.12~08.14 2400 G4KE XM12 C307J A0552 FS11004 AC9401 JT493
07.12~08.14 2400 G4KJ XM C307J A0552 FS11004 AC9401 JT493

KIA   »   Sorento 15

08.14~01.18 2400 G4KE PC515 LHD C304J A9428 FS9312 AC9411 JT493
08.14~01.18 2400 G4KE PC515 RHD C304J A9428 FS9312 AC9411 JT493
08.14~01.18 2400 G4KJ UM C307JC304J A9428 FS9318 AC9411 JT493

KIA   »   Sorento 18

01.18~01.20 2400 G4KE PC518 C304J A9428 FS9312 AC9411 JT493

KIA   »   Soul

08.13~01.17 1600 G4FD PB213 US C304J A9614 FS9311 AC0230 JT493
08.13~01.17 1600 G4FG PB213 RHD C304J A9614 FS9311 AC0230 JT493
08.13~01.17 1600 G4FG SPB213 LHD C304J A9614 FS9311 AC0230 JT493
08.13~01.17 2000 G4NA WAGON - 5DR 5P C304J A9614   AC0230 JT493
08.13~01.17 2000 G4NC WAGON - 5DR 5P C304J A9614 FS9311 AC0230 JT493

KIA   »   Sportage

08.10~04.14 2000 G4KD PSL10 RHD C304J A9323 PI1023FS9219 AC9312 JT493
08.10~10.15 2000 G4KD SL10 LHD C304J A9323 PI1023FS9219 AC9312 JT493
06.10~04.14 2000 G4KD SLZ10 LHD C307J A9323 FS11004 AC9407C JT493
10.15~01.19 2000 G4NA PD916 LHD C304J A0638 FS9312 AC0239C JT493
10.15~01.19 2000 G4NA PD916 RHD C304J A0638 FS9312 AC0239C JT493
05.18~08.21 2000 G4NA PD919 LHD C304J A0638 FS9312 AC0239C JT493
05.18~08.21 2000 G4NA PD919 RHD C304J A0638 FS9312 AC0239C JT493
10.15~01.19 2000 G4NA PF116 RU C304J A0638 FS9312 AC9413 JT493
08.10~04.14 2400 G4KE PSL10 LHD C304J A9323 FS9219PI1023 AC9312 JT493

KIA   »   Sportage 14

01.14~03.16 2000 G4NA PSL14 RHD C304J A9323 PI1023FS11004 AC9312 JT493
01.14~03.16 2000 G4NA SLZ14 C304J A9323 FS11004PI1023 AC9407C JT493
01.14~03.16 2400 G4KE SL14 C304J A9323 PI1023FS11004 AC9312 JT493

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
