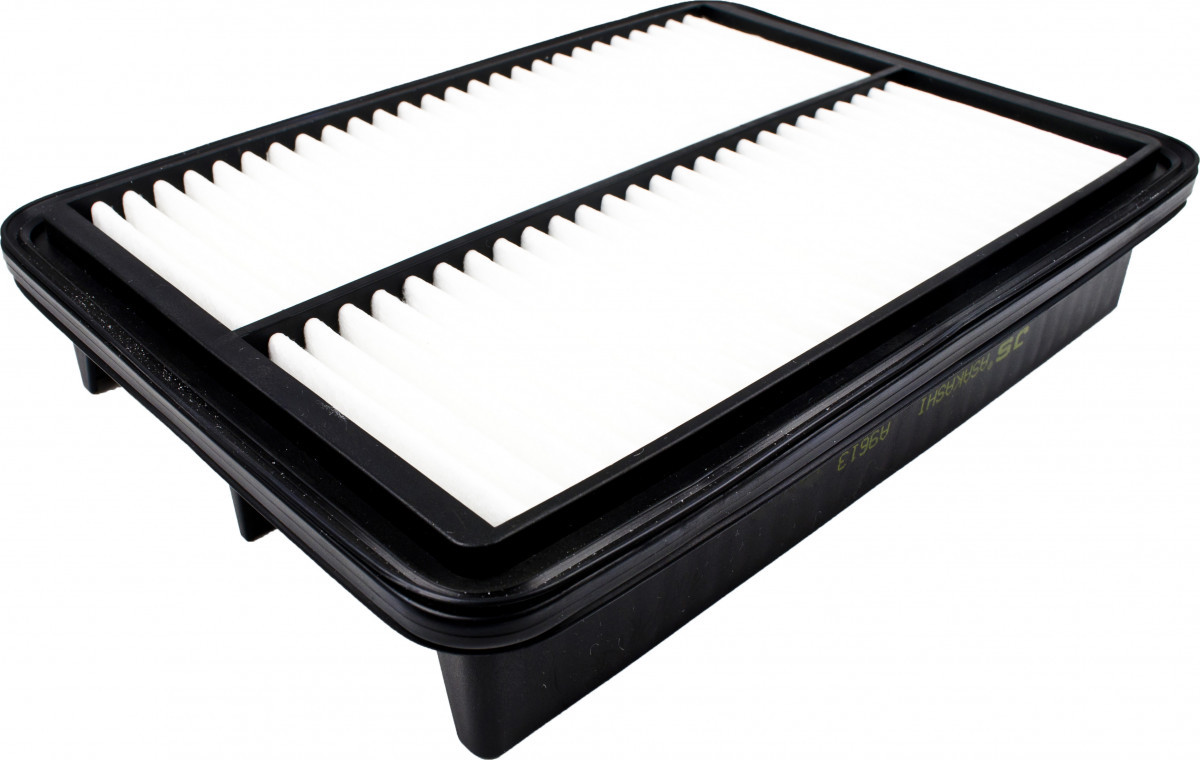

AIR FILTER » A9613

Feedback information
A9613

Specification

Length(mm)
267
Width 1 (mm)
190
Height 1 (mm)
51

Cross reference

HYUNDAI
28113-4H000
HYUNDAI / KIA
28113-4H000
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Grand Starex

05.07~04.21 2400 G4KG TQ07 C304J A9613 FS9308FS9327 AC9405SET
05.07~08.15 2500 D4CB A2 TQ07 C109J A9613 FC9304 AC9405SET JT305K
05.07~08.15 2500 D4CB A2 WAGON LONG - 11P C109J A9613 FC9304 AC9405SET JT305K
01.18~ 2500 D4CB A2 WGN 11P LHD C109J A9613 FC9304 AC9423CSET JT305K
08.15~12.17 2500 D4CB A2 WGN 12P LHD C109J A9613 FC9304 AC9405SET JT305K
01.18~04.21 2500 D4CB A2 WGN 12P LHD C109J A9613 FC9304 AC9423CSET JT305K

HYUNDAI   »   H1 Starex

05.07~08.15 2400 G4KG VAN LONG - 3P LHD C304J A9613 FS9308PI1023 AC9405SET
05.18~04.21 2400 G4KG VAN LONG - 3P LHD C304J A9613 FS9308PI1023 AC9405SET
05.07~08.15 2400 G4KG VAN LONG - 3P RHD C304J A9613 FS9308PI1023 AC9405SET
05.07~08.15 2400 G4KG VAN LONG - 6P LHD C304J A9613 FS9308PI1023 AC9405SET
12.17~ 2500 D4BH (4D56) WAGON LONG - 12P LHD C109J A9613 FC9304 AC9405SET
08.15~05.18 2500 D4CB A2 VAN LONG - 3P C109J A9613 FC9304 AC9405SET JT305K
05.18~04.21 2500 D4CB A2 VAN LONG - 3P C109J A9613 FC9304 AC9405SET
08.15~05.18 2500 D4CB A2 WAGON LONG - 12P RHD C109J A9613 FC9304 AC9405SET JT305K
05.18~04.21 2500 D4CB A2 WAGON LONG - 12P RHD C109J A9613 FC9304 AC9405SET JT305K
12.17~04.21 2500 D4CB A2 WAGON LONG - 8P C109J A9613 FC9304 AC9405SET

HYUNDAI   »   H1 Starex [H1 Cargo] 07

05.07~08.15 2400 G4KG WAGON LONG - 12P LHD C304J A9613 FS9308PI1023 AC9405SET JT436K
08.15~05.18 2400 G4KG WAGON LONG - 12P LHD C304J A9613 FS9308PI1023 AC9405SET
05.07~08.15 2400 G4KG WAGON LONG - 12P RHD C304J A9613 FS9308PI1023 AC9405SET JT436K
08.15~05.18 2400 G4KG WAGON LONG - 12P RHD C304J A9613 FS9308PI1023 AC9405SET JT436K
05.07~08.15 2400 G4KG WAGON LONG - 9P LHD C304J A9613 FS9308PI1023 AC9405SET JT436K
05.07~08.15 2500 4D56 WAGON LONG - 12P C109J A9613 FC9304 AC9405SET
05.07~08.15 2500 4D56 WAGON LONG - 9P C109J A9613 FC9304 AC9405SET
05.07~08.15 2500 D4BH (4D56) VAN LONG - 3P C109J A9613 FC9304 AC9405SET
05.07~08.15 2500 D4CB A2 VAN LONG - 3P C109J A9613 FC9304SF1101 AC9405SET JT305K
05.07~08.15 2500 D4CB A2 VAN LONG - 3P EU C109J A9613 FC9304 AC9405SET
08.15~05.18 2500 D4CB A2 VAN LONG - 6P C109J A9613 FC9304 AC9405SET JT305K
05.07~08.15 2500 D4CB A2 WAGON LONG - 12P C109J A9613 FC9304 AC9405SET JT305K
05.07~08.15 2500 D4CB A2 WAGON LONG - 8P C109J A9613 FC9304SF1101 AC9405SET JT305K
08.15~05.18 2500 D4CB A2 WAGON LONG - 8P C109J A9613 FC9304 AC9405SET JT305K

HYUNDAI   »   Starex

12.17~ 2500 D4CB A2 WGN LONG 12P KDOM C109J A9613 FC9304 AC9423CSET JT305K
