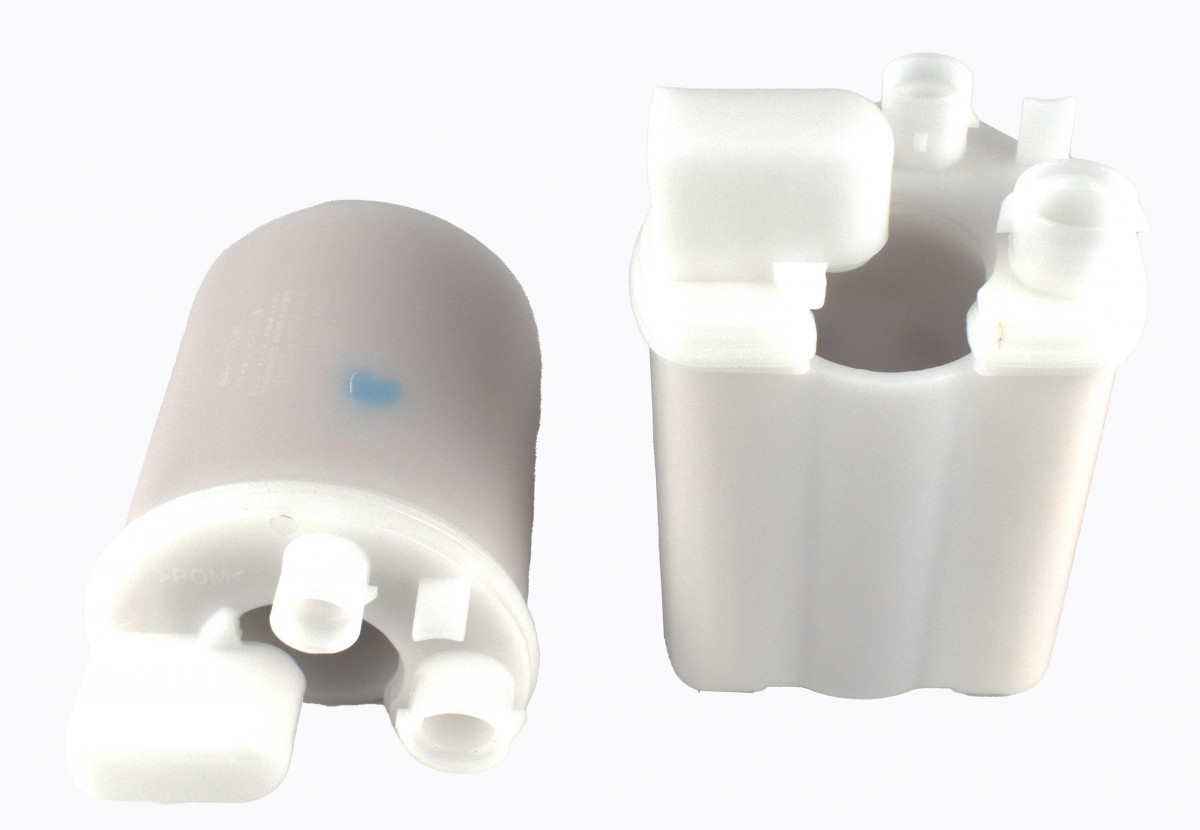

FUEL FILTER (IN-TANK) » FS9308

Feedback information
FS9308

Specification

Length 1/ Length 2
130
Outer Diameter 1/ Outer Diameter 2
88/84
Diameter 1/ Diameter 2 [mm]
9/13

Cross reference

HYUNDAI
31910-2H000
KIA
31910-2H000
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Avante / Elantra 06

04.06~09.11 1600 G4FC HD06 LHD C304J A9320 PI1023FS9308 AC0222AC0163 JT472K
11.06~09.11 1600 G4FC HD06 RHD C304J A9320 FS9308PI1023 AC0155SET JT472K
04.06~01.07 1600 G4FC PA06 RHD C304J A9320 PI1023FS9308 AC0155SET JT472K
04.06~06.11 2000 G4GC PHD06 LHD US/CAN C304J A9320 PI1023FS9308 AC0222 JT472K
04.06~06.11 2000 G4GC PHD06 RHD C304J A9320 PI1023FS9308 AC0155SET JT472K

HYUNDAI   »   Grand Starex

05.07~ 2400 G4KG TQ07 C304J A9613 FS9327FS9308 AC9405SET

HYUNDAI   »   H1 Starex

05.07~08.15 2400 G4KG VAN LONG - 3P LHD C304J A9613 PI1023FS9308 AC9405SET
05.07~08.15 2400 G4KG VAN LONG - 3P RHD C304J A9613 FS9308PI1023 AC9405SET

HYUNDAI   »   H1 Starex [H1 Cargo] 07

05.07~08.15 2400 G4KG WAGON LONG - 12P LHD C304J A9613 FS9308PI1023 AC9405SET JT436K
05.07~08.15 2400 G4KG WAGON LONG - 12P RHD C304J A9613 PI1023FS9308 AC9405SET JT436K
05.07~08.15 2400 G4KG WAGON LONG - 9P LHD C304J A9613 PI1023FS9308 AC9405SET JT436K

HYUNDAI   »   i10

10.07~01.16 1000 G3LA PA C901J A9617 FS9308 AC9311
09.10~01.16 1100 G4HG AM51B LHD C901J A9318 FS9308PI1023 AC9311 JT472K
09.10~01.16 1100 G4HG AM51B RHD C901J A9318 FS9308PI1023 AC9311 JT472K
01.07~09.10 1100 G4HG AN51B C901J A9318 PI1023FS9308 AC9311 JT472K
01.08~01.14 1100 G4HG HB LHD C901J A9318 PI1023FS9308 AC9311 JT472K
10.07~09.10 1200 G4LA PA07 C901J A11002 PI1023FS9308 AC9311 JT472K
09.10~09.13 1200 G4LA PA07 C901J A11002 PI1023FS9308 AC9311 JT472K

HYUNDAI   »   i20

03.12~12.15 1200 G4LA BA51 5DR RHD C901J A9319 PI1023FS9308 AC9406SET
10.08~12.12 1200 G4LA PB08 5DR RHD C901J A9319 PI1023FS9308 AC9406SET
10.08~06.12 1200 G4LA PBT10 LHD C901J A9319 PI1023FS9308 AC11003SET
01.10~06.12 1200 G4LA PBT10 LHD C901J A9319 PI1023FS9308 AC11003SET
06.12~12.14 1200 G4LA PBT12 LHD C901J A9319 FS9308 AC9406SET
06.12~12.14 1200 G4LA PPB12 LHD C901J A9319 PI1023FS9308 AC9406SET
01.08~06.12 1400 G4FA PB08 5DR LHD C304J A9319 PI1023FS9308 AC9406SET JT472K
01.08~06.12 1400 G4FA PB08 5DR RHD C304J A9319 PI1023FS9308 AC9406SET JT472K
06.12~12.14 1400 G4FA PB12 5DR C304J A9319 FS9308PI1023 AC9406SET JT472K
06.12~12.14 1400 G4FA PB12 5DR NLHBB C304J A9319 PI1023FS9308 AC11003SET JT472K

HYUNDAI   »   i30

09.11~03.15 1400 G4FA D351 C307J A9326 FS9308 AC0222
03.10~12.11 1600 G4FC D#51 5DR SDN LHD RUS C304J A9320 PI1023FS9308 AC9402 JT472K
01.07~03.10 1600 G4FC DC51 5DR SDN LHD C304J A9320 PI1023FS9308 AC9402 JT472K
03.10~12.11 1600 G4FC DC51 5DR SDN LHD C304J A9320 FS9308PI1023 AC9402 JT472K
01.07~12.11 1600 G4FC DC51 5DR SDN RHD C304J A9320 FS9308PI1023 AC0160SETAC9402 JT472K
04.08~03.10 1600 G4FC DC81 5DR WGN RHD C304J A9320 PI1023FS9308 AC0160SET JT472K
03.10~03.12 1600 G4FC DC81 5DR WGN RHD C304J A9320 PI1023FS9308 AC0160SET JT472K
04.15~02.17 1600 G4FG D351 C307J A9326 FS9308PI1023 AC0222 JT493
01.12~03.15 1600 G4FG PA612 3DR C304J A9326 PI1023FS9308 AC0222 JT493
01.15~07.17 1600 G4FG PA616 5DR LHD C304J A9326 FS9308PI1023 AC0222 JT493
03.07~12.11 2000 G4GC CW C307J A9320 FS9308 AC9402

HYUNDAI   »   iX 20

01.10~01.19 1400 G4FA JC C307J A9319 FS9308PI1023 AC9410 JT472K
01.15~01.19 1600 G4FC JC C307JC304J A9319 FS9308 AC9410 JT493
01.10~01.15 1600 G4FC JCW5D C307J A9319 PI1023FS9308 AC9410 JT472K

KIA   »   Carens

08.09~12.12 1600 G4FC UN C304J A0244 FS9308 AC9312
01.06~11.06 2000 G4KA BK C304J A0244 FS9308 AC9312 JT214K
10.06~12.12 2000 G4KA FG LHD C304J A0244 FS9308PI1023 AC9312 JT214K
10.06~12.12 2000 G4KA FG RHD C304J A0244 PI1023FS9308 AC9312 JT214K

KIA   »   Cee'd

01.10~07.12 1400 G4FA ED C304J A9320 FS9308 AC9402
01.10~08.12 1600 G4FC BS C304J A9320 FS9308PI1023 AC9402 JT472K

KIA   »   Cee'd 12

03.12~08.15 1400 G4FA PA212 HB LHD C307J A9326 FS9308PI1023 AC0222
03.12~07.15 1600 G4FG PA212 HB LHD C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Cee'd SW

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Cerato

01.08~04.13 1600 G4FC F#511 RHD 5DR C304J A9320 FS9308PI1023 AC9320SET JT493
01.08~04.13 1600 G4FC FH22 SDN RHD C304J A9320 FS9308 AC9320SET JT472K
01.08~04.13 1600 G4FC FS41 SDN C304J A9320 PI1023FS9308 AC9320SETAC9312 JT472K
01.08~04.13 1600 G4FC FU41 SDN LHD C304J A9320 PI1023FS9308 AC9312 JT472K
01.08~04.13 1600 G4FC FU41 SDN RHD C304J A9320 FS9308PI1023 AC9320SET JT472KJT493
01.08~04.13 1600 G4FC FW41 SDN LHD C304J A9320 FS9308PI1023 AC9312 JT493JT472K
01.08~04.13 1600 G4FC FW41 SDN RHD C304J A9320 PI1023FS9308 AC9320SET JT472KJT493
01.08~04.13 1600 G4FC FW61 COUPE LHD C304J A9320 PI1023FS9308 AC9312 JT472K
01.08~04.13 1600 G4FC FW61 COUPE RHD C304J A9320 FS9308 AC9320SETAC9312 JT472K
10.08~03.13 2000 G4KD FH22 SDN RHD C304J A9320 FS9308 AC9320SETAC9324 JT493
10.08~03.13 2000 G4KD FU51 5DR HB RHD C304J A9320 FS9308PI1023 AC9320SET JT493
01.09~04.13 2000 G4KD FW41 SDN C304J A9320 FS9308 AC9312AC9320SET JT472K
10.08~03.13 2000 G4KD FW61 COUPE RHD C304J A9320 FS9308PI1023 AC9320SET JT493JT472K

KIA   »   Forte

05.08~09.13 1600 G4FC TD08 SDN KDOM C304J A9320 PI1023FS9308 AC9312AC9320SET JT472K
05.08~09.13 2000 G4KD TD08 SDN C304J A9320 FS9308PI1023 AC9312 JT472K

KIA   »   Pro Cee'd

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Ray

11.11~ 1000 G3LB TAM C901J A9617 FS9308 AC9311 JT582HJT582

KIA   »   Rondo

04.08~12.12 2000 G4KA HG RHD AUS C304J A0244 PI1023FS9308 AC9312 JT214K
06.06~01.12 2400 G4KE UN06 C304J A0244 PI1023FS9308 AC9312 JT214K
06.06~01.12 2700 G6EA UN06 C304J A0244 FS9308 AC9312

KIA   »   Venga

01.10~01.15 1400 G4FA YN C307J A9319 PI1023FS9308 AC9410 JT472K
01.10~01.15 1600 G4FC YN C307J A9319 FS9308PI1023 AC9410 JT472K
