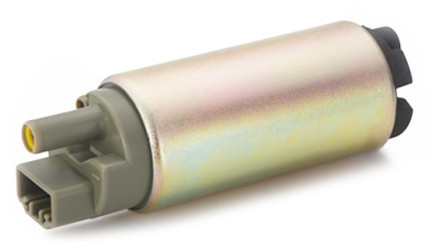

IN-TANK FUEL PUMP » PI1023

Feedback information
PI1023

Specification

Pressure [Bar]
3,5
Flow [L/h]
100
Diameter 1[mm]
38,5
Contact Group(mm)
2x6mm

Cross reference

HYUNDAI
31110-2S100
HYUNDAI
31110-2S200
HYUNDAI
31111-02000
HYUNDAI
31111-09000
HYUNDAI
31111-0M000
HYUNDAI
31111-1G500
HYUNDAI
31111-1M000
HYUNDAI
31111-1R000
HYUNDAI
31111-2S000
HYUNDAI
31111-2W05
HYUNDAI
31111-38000
HYUNDAI
31111-38050
KIA
31111-07600
KIA
31111-1R000
TOYOTA
232200A040
TOYOTA
232200H120
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Accent 11

10.10~10.14 1400 G4FA PSB11 SDN LHD C304J A9614 PI1023FS11004 AC9312 JT472K
10.10~10.14 1400 G4FA PSB11 SDN RHD C304J A9614 PI1023FS11004 AC9312 JT472K
11.11~09.14 1400 G4FA SB HB C304J A9614 FS11004PI1023 AC9312
09.11~05.14 1400 G4LC CT41 LHD C901J A9614 FS11004PI1023FR1015 AC9312 JT582
09.11~05.14 1400 G4LC CT41 RHD C901J A9614 PI1023FS11004 AC9312 JT582
09.11~05.14 1600 G4FC PSB11 HB C304J A9614 PI1023FS11004 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 HB LHD PR C304J A9614 PI1023FS11004 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 SDN C304J A9614 PI1023FS11004 AC9312 JT472K

HYUNDAI   »   Avante / Elantra 06

04.06~09.11 1600 G4FC HD06 LHD C304J A9320 FS9308PI1023 AC0222AC0163 JT472K
11.06~09.11 1600 G4FC HD06 RHD C304J A9320 PI1023FS9308 AC0155SET JT472K
04.06~01.07 1600 G4FC PA06 RHD C304J A9320 PI1023FS9308 AC0155SET JT472K
04.06~06.11 2000 G4GC PHD06 LHD US/CAN C304J A9320 FS9308PI1023 AC0222 JT472K
04.06~06.11 2000 G4GC PHD06 RHD C304J A9320 FS9308PI1023 AC0155SET JT472K

HYUNDAI   »   Avante / Elantra 96

03.98~04.00 1500 G4FK J2 SDN C304J A9302 PI1023FS6200

HYUNDAI   »   Eon

10.11~09.18 800 G3HA PIA 11 C901J A0644 FS11004PI1023 AC9311
10.11~09.18 800 G3HA PIA 11 RHD IND C901J A0644 FS11004PI1023 AC9311

HYUNDAI   »   Grandeur XG25

03.02~11.05 2500 G6BV FU41C C304J A9310 FS9502PI1023FS6042 AC0159SET JT214K

HYUNDAI   »   H1 Starex

01.04~01.07 2400 G4JS WAGON SHORT - 9P C304J A344J FS6042PI1023
09.06~09.07 2400 G4JS WGN LONG - 9P C304J A344J PI1023 AC9303
05.07~08.15 2400 G4KG VAN LONG - 3P LHD C304J A9613 PI1023FS9308 AC9405SET
05.07~08.15 2400 G4KG VAN LONG - 3P RHD C304J A9613 FS9308PI1023 AC9405SET

HYUNDAI   »   H1 Starex [H1 Cargo] 07

05.07~08.15 2400 G4KG WAGON LONG - 12P LHD C304J A9613 FS9308PI1023 AC9405SET JT436K
05.07~08.15 2400 G4KG WAGON LONG - 12P RHD C304J A9613 PI1023FS9308 AC9405SET JT436K
05.07~08.15 2400 G4KG WAGON LONG - 9P LHD C304J A9613 PI1023FS9308 AC9405SET JT436K

HYUNDAI   »   i10

09.10~01.16 1100 G4HG AM51B LHD C901J A9318 PI1023FS9308 AC9311 JT472K
09.10~01.16 1100 G4HG AM51B RHD C901J A9318 PI1023FS9308 AC9311 JT472K
01.07~09.10 1100 G4HG AN51B C901J A9318 PI1023FS9308 AC9311 JT472K
01.08~01.14 1100 G4HG HB LHD C901J A9318 FS9308PI1023 AC9311 JT472K
10.07~09.10 1200 G4LA PA07 C901J A11002 PI1023FS9308 AC9311 JT472K
09.10~09.13 1200 G4LA PA07 C901J A11002 FS9308PI1023 AC9311 JT472K

HYUNDAI   »   i20

03.12~12.15 1200 G4LA BA51 5DR RHD C901J A9319 PI1023FS9308 AC9406SET
10.08~12.12 1200 G4LA PB08 5DR RHD C901J A9319 PI1023FS9308 AC9406SET
10.08~06.12 1200 G4LA PBT10 LHD C901J A9319 PI1023FS9308 AC11003SET
01.10~06.12 1200 G4LA PBT10 LHD C901J A9319 FS9308PI1023 AC11003SET
06.12~12.14 1200 G4LA PPB12 LHD C901J A9319 FS9308PI1023 AC9406SET
01.08~06.12 1400 G4FA PB08 5DR LHD C304J A9319 PI1023FS9308 AC9406SET JT472K
01.08~06.12 1400 G4FA PB08 5DR RHD C304J A9319 FS9308PI1023 AC9406SET JT472K
06.12~12.14 1400 G4FA PB12 5DR C304J A9319 FS9308PI1023 AC9406SET JT472K
06.12~12.14 1400 G4FA PB12 5DR NLHBB C304J A9319 PI1023FS9308 AC11003SET JT472K

HYUNDAI   »   i30

03.10~12.11 1600 G4FC D#51 5DR SDN LHD RUS C304J A9320 PI1023FS9308 AC9402 JT472K
01.07~03.10 1600 G4FC DC51 5DR SDN LHD C304J A9320 PI1023FS9308 AC9402 JT472K
03.10~12.11 1600 G4FC DC51 5DR SDN LHD C304J A9320 PI1023FS9308 AC9402 JT472K
01.07~12.11 1600 G4FC DC51 5DR SDN RHD C304J A9320 FS9308PI1023 AC9402AC0160SET JT472K
04.08~03.10 1600 G4FC DC81 5DR WGN RHD C304J A9320 FS9308PI1023 AC0160SET JT472K
03.10~03.12 1600 G4FC DC81 5DR WGN RHD C304J A9320 PI1023FS9308 AC0160SET JT472K
04.15~02.17 1600 G4FG D351 C307J A9326 PI1023FS9308 AC0222 JT493
01.12~03.15 1600 G4FG PA612 3DR C304J A9326 PI1023FS9308 AC0222 JT493
01.15~07.17 1600 G4FG PA616 5DR LHD C304J A9326 PI1023FS9308 AC0222 JT493

HYUNDAI   »   iX 20

01.10~01.19 1400 G4FA JC C307J A9319 PI1023FS9308 AC9410 JT472K
01.10~01.15 1600 G4FC JCW5D C307J A9319 FS9308PI1023 AC9410 JT472K

HYUNDAI   »   iX 35

11.09~08.13 2000 G4KD TM10 LHD C304J A9323 PI1023FS9219 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 FS9219PI1023 AC9312 JT493
08.09~09.13 2000 G4KD TMZ10 RUS C304JC307J A9323 PI1023FS9219FS11004 AC9407C JT493

HYUNDAI   »   Santa FE

08.15~01.19 2400 G4KE PDM15 LHD C307J A0552 PI1023FS11004 AC9324 JT493
08.15~01.19 2400 G4KE PDM15 RHD C304J A0552 PI1023FS11004 AC9324 JT493

HYUNDAI   »   Santa FE 12

05.12~07.15 2400 G4KE DM LHD C307JC304J A0552 FS11004PI1023 AC9324 JT493
05.12~07.15 2400 G4KE DM RHD C304J A0552 PI1023FS11004 AC9324 JT493

HYUNDAI   »   Sonata

03.98~02.01 2000 G4JP EF C304JC307J A9310 PI1023FS6042 AC9302 JT214K
02.01~06.06 2000 G4JP EF C304J A9310 FS9502PI1023 AC0159SETAC9302 JT214K
02.01~04.05 2700 G6BA PA02 US C304J A9310 FS9502PI1023 AC0159SET JT214K

HYUNDAI   »   Sonata 04

09.04~12.07 2000 G4KA NF C304J A2520 FS9305PI1023 AC9313 JT214K
09.04~12.07 2400 G4KC NFA US C304J A2520 PI1023 AC9313

HYUNDAI   »   Sonata 08

12.07~10.10 2000 G4KD NF08 LHD C304J A2520 FS9305PI1023 AC9313
12.07~10.10 2000 G4KD NF08 RHD C304J A2520 PI1023FS9305 AC9313 JT214K
12.07~10.10 2400 G4KE ET41 LHD C304J A2520 PI1023FS9305 AC9313 JT214K
12.07~10.10 2400 G4KE EU41 LHD C304J A2520 PI1023FS9305 AC9313 JT214K

HYUNDAI   »   Terracan

02.01~06.04 3500 G6CU HM81 C304J A9313 PI1023FS9207 AC9415SET JT435K

HYUNDAI   »   Tucson 04

10.06~12.09 2000 G4GC JM04 C304J A2517 FS9301PI1023 AC11001SET JT214K
10.06~12.09 2000 G4GC JM04 LHD EU C304J A2517 PI1023FS9301 AC9312AC9407C JT214K
04.04~10.06 2000 G4GC PA04 C304J A2517 FS9301PI1023 AC9320SET JT214K
04.04~10.06 2000 G4GC PA04 RUS C304J A2517 PI1023FS9301 AC9312
04.04~10.06 2000 G4GC PA04 US C304J A2517 PI1023FS9301 AC9320SET JT214K

HYUNDAI   »   Tucson 10

11.09~08.13 2000 G4KD TM10 LHD C304J A9323 FS9219PI1023 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 PI1023FS9219FS11004 AC9312 JT11001JT493
10.09~08.13 2400 G4KE TM10 LHD GL C304J A9323 PI1023FS9219 AC9312 JT493
10.09~08.13 2400 G4KE TM10 LHD US C304J A9323 FS9219PI1023 AC9312 JT493
10.09~08.13 2400 G4KE TM10 RHD C304J A9323 PI1023FS9219 AC9312 JT493

HYUNDAI   »   Tucson 14

08.13~06.15 2000 G4NA PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~05.15 2000 G4NA PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493

KIA   »   Carens

10.06~12.12 2000 G4KA FG LHD C304J A0244 FS9308PI1023 AC9312 JT214K
10.06~12.12 2000 G4KA FG RHD C304J A0244 PI1023FS9308 AC9312 JT214K

KIA   »   Cee'd

01.10~08.12 1600 G4FC BS C304J A9320 FS9308PI1023 AC9402 JT472K

KIA   »   Cee'd 12

03.12~08.15 1400 G4FA PA212 HB LHD C307J A9326 PI1023FS9308 AC0222
03.12~07.15 1600 G4FG PA212 HB LHD C307J A9326 FS9308PI1023 AC0222 JT493

KIA   »   Cee'd SW

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Cerato

01.08~04.13 1600 G4FC F#511 RHD 5DR C304J A9320 FS9308PI1023 AC9320SET JT493
01.08~04.13 1600 G4FC FS41 SDN C304J A9320 PI1023FS9308 AC9312AC9320SET JT472K
01.08~04.13 1600 G4FC FU41 SDN LHD C304J A9320 FS9308PI1023 AC9312 JT472K
01.08~04.13 1600 G4FC FU41 SDN RHD C304J A9320 PI1023FS9308 AC9320SET JT472KJT493
01.08~04.13 1600 G4FC FW41 SDN LHD C304J A9320 PI1023FS9308 AC9312 JT493JT472K
01.08~04.13 1600 G4FC FW41 SDN RHD C304J A9320 PI1023FS9308 AC9320SET JT493JT472K
01.08~04.13 1600 G4FC FW61 COUPE LHD C304J A9320 FS9308PI1023 AC9312 JT472K
10.08~03.13 2000 G4KD FU51 5DR HB RHD C304J A9320 PI1023FS9308 AC9320SET JT493
10.08~03.13 2000 G4KD FW61 COUPE RHD C304J A9320 PI1023FS9308 AC9320SET JT493JT472K

KIA   »   Forte

05.08~09.13 1600 G4FC TD08 SDN KDOM C304J A9320 PI1023FS9308 AC9312AC9320SET JT472K
05.08~09.13 2000 G4KD TD08 SDN C304J A9320 FS9308PI1023 AC9312 JT472K

KIA   »   Lotze

06.09~01.11 2000 G4KD GG C304J A0244 PI1023FS13003 AC9313 JT214K

KIA   »   Morning/Picanto 08

12.07~04.10 1000 G4HE PSA08 EU C901J A2516 PI1023FS9309 AC9311
12.07~05.11 1000 G4HE PSA08 KOREA C901J A9327 PI1023FS9309 AC9311 JT472K
12.07~05.11 1100 G4HG BJ51 RHD C901J A2516 PI1023FS9309 AC9311 JT472K
12.07~05.11 1100 G4HG BK51 LHD C901J A2516 FS9309PI1023 AC9311 JT472K
12.07~05.11 1100 G4HG BK51 RHD C901J A2516 PI1023FS9309 AC9311 JT472K

KIA   »   Morning/Picanto 11

05.11~04.17 1000 G3LA PTA11 LHD C901J A9617 PI1023FS9309 AC9311 JT472K
05.11~04.15 1000 G3LA PTA11 RHD C901J A9617 PI1023FS9309 AC9311 JT472K
05.11~04.15 1200 G4LA PTA11 LHD C901J A9617 FS9309PI1023 AC9311 JT472K
05.11~04.15 1200 G4LA PTA11 RHD C901J A9617 PI1023FS9309 AC9311 JT472K
04.15~01.17 1200 G4LA PTA15 LHD C901J A9617 PI1023FS9309 AC9311 JT472K
04.15~01.17 1200 G4LA PTA15 RHD C901J A9617 PI1023FS9309 AC9311 JT472K

KIA   »   Opirus

03.03~11.06 3000 G6CT K3F C304J A9419 FS9502PI1023 AC9310 JT214K

KIA   »   Optima/Magentis

03.00~04.06 2000 G4JP GD C304J A9310 PI1023FS9502 AC0159SET JT214K
03.05~03.08 2000 G4KA GE22 C304J A0244 FS13003PI1023 AC9313 JT214K
05.08~01.11 2000 G4KD PMG09 LHD C304J A0244 PI1023FS13003 AC9313
05.08~01.11 2000 G4KD PMG09 RHD C304J A0244 PI1023FS13003 AC9313 JT214K
04.06~06.09 2400 G4KC GE22 C304J A0244 PI1023FS13003 AC9313 JT214K
03.00~04.06 2500 G6BV GD C304J A9310 PI1023FS9502FS6042 AC9302

KIA   »   Picanto

04.15~04.17 1000 G3LA PTA15 RHD C901J A9617 PI1023FS9309 AC9311 JT472K

KIA   »   Pro Cee'd

03.12~07.15 1600 G4FC A212 C307J A9326 PI1023FS9308 AC0222 JT493

KIA   »   Rio 12

03.11~05.15 1200 G4LA DN511 5DR HB RHD C901J A13001 FR1015PI1023FS11004 AC9312
03.11~05.15 1200 G4LA PIH12 4DR SDN RHD C901J A13001 PI1023FS11004 AC9312
07.11~02.15 1400 G4FA DXR12 RUS C304J A9614 FR1015PI1023FS11004 AC9328 JT472K
01.11~01.14 1400 G4FA PIH12 3DR HB C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN LHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN RHD C304J A9614 FR1015FS11004PI1023 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB LHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB RHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
07.11~02.15 1600 G4FC DXR12 C304J A9614 FS11004FR1015PI1023 AC9328

KIA   »   Rondo

04.08~12.12 2000 G4KA HG RHD AUS C304J A0244 PI1023FS9308 AC9312 JT214K
06.06~01.12 2400 G4KE UN06 C304J A0244 PI1023FS9308 AC9312 JT214K

KIA   »   Soluto

01.18~ 1400 G4LC PH718 LHD C901J A9319 FS11004PI1023 AC9312 JT472K
01.18~ 1400 G4LC PH718 RHD C901J A9319 FS11004PI1023 AC9312 JT472K

KIA   »   Sportage

09.06~07.10 2000 G4GC FQ LHD C304J A2517 PI1023FS9301 AC9312 JT214K
03.06~08.10 2000 G4GC FQ04 US C304J A2517 PI1023FS9301 AC9312 JT214K
08.10~04.14 2000 G4KD PSL10 RHD C304J A9323 PI1023FS9219 AC9312 JT493
08.10~10.15 2000 G4KD SL10 LHD C304J A9323 PI1023FS9219 AC9312 JT493
08.10~04.14 2400 G4KE PSL10 LHD C304J A9323 FS9219PI1023 AC9312 JT493

KIA   »   Sportage 14

01.14~03.16 2000 G4NA PSL14 RHD C304J A9323 PI1023FS11004 AC9312 JT493
01.14~03.16 2000 G4NA SLZ14 C304J A9323 FS11004PI1023 AC9407C JT493
01.14~03.16 2400 G4KE SL14 C304J A9323 PI1023FS11004 AC9312 JT493

KIA   »   Venga

01.10~01.15 1400 G4FA YN C307J A9319 PI1023FS9308 AC9410 JT472K
01.10~01.15 1600 G4FC YN C307J A9319 PI1023FS9308 AC9410 JT472K

TOYOTA   »   Camry

03.06~09.11 2400 2AZ-FE AHV40L C113J A199J PI1023 AC108J

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
