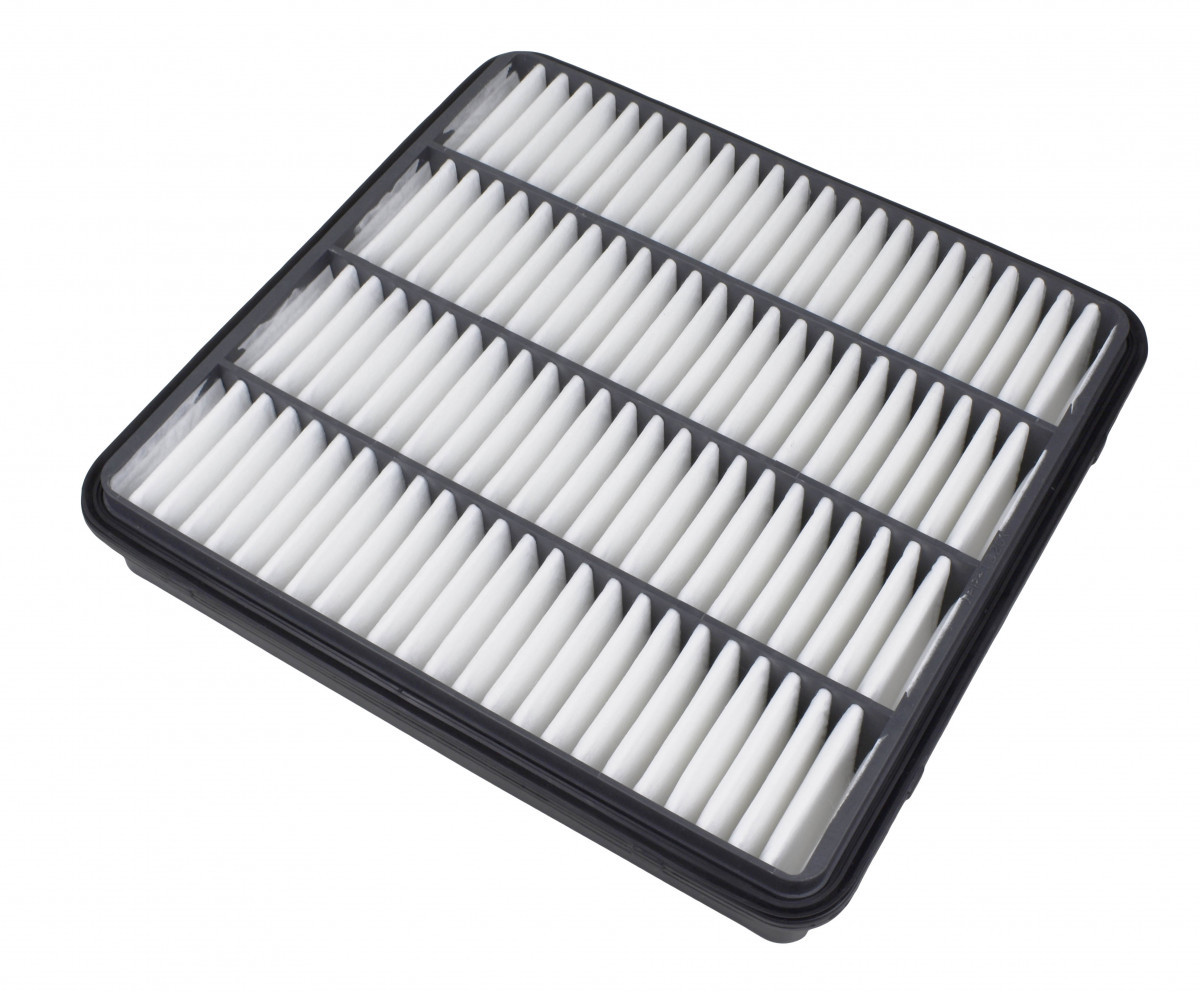

AIR FILTER » A1515

Feedback information

Specification

Length(mm)
315
Width 1 (mm)
296
Height 1 (mm)
52

Cross reference

TOYOTA
17801-0S010
TOYOTA
17801-38030
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

LEXUS   »   LX460

01.12~09.15 4600 1UR-FE URJ202 OE0071 A1515   AC108C JT33003K

LEXUS   »   LX570

11.07~ 5700 3UR-FE URJ201 OE0071 A1515 FR1012PI1006 AC108JAC108C JT525

TOYOTA   »   Land Cruiser 200

05.09~ 4600 1UR-FE URJ202L OE0071 A1515 FS8002FR1012PI1006 AC108J JT525
04.09~ 4600 1UR-FE URJ202W OE0071 A1515 PI1006FS8002FR1012 AC108J JT568KJT525
09.07~03.12 4700 2UZ-FE GRJ200R C114T A1515 FS2108FS2108PFR1012PI1006 AC108J JT437K
09.07~01.12 4700 2UZ-FE UZJ200L C114T A1515 FR1012PI1006FS2108 AC108J JT437K
09.07~05.09 4700 2UZ-FE UZJ200W C114T A1515 FS2108FS8015FR1012FS2108PPI1006 AC108J JT437K
09.07~08.15 5700 3UR-FE URJ200L OE0071 A1515 FR1012FS2108PPI1006FS2108 AC108J JT525

TOYOTA   »   Sequoia

11.07~04.09 4700 2UZ-FE UCK60 C114T A1515   AC108J JT437K
11.07~12.21 5700 3UR-FE USK60L OE0071 A1515 PI1009   JT568KJT525
11.07~12.21 5700 3UR-FE USK65L OE0071 A1515 PI1009 AC108J JT525

TOYOTA   »   Tundra

11.06~09.14 4000 1GR-FE GSK51L C114TOE116J A1515A1011   AC108J JT437K
01.07~07.19 4600 1UR-FE UPK51L OE0071 A1515A1546 PI1009 AC108J JT568KJT525
04.09~07.19 4600 1UR-FE UPK56L OE0071 A1546A1515 PI1009 AC108J JT525JT568K
08.08~07.19 5700 3UR-FBE USK56L OE0071 A1515A1546   AC108J JT525JT568K
01.07~04.09 5700 3UR-FE USK51L OE0071 A1515 PI1009 AC108J JT568K
01.07~08.13 5700 3UR-FE USK55L OE0071 A1515 PI1009 AC108J JT525KJT525
01.07~10.21 5700 3UR-FE USK56L OE0071 A1515A1546 PI1009 AC108J JT525
01.07~10.21 5700 3UR-FE USK57L OE0071 A1515 PI1009 AC108J JT525

Exemption from liability: the catalog data is advisory and can be used for reference only
