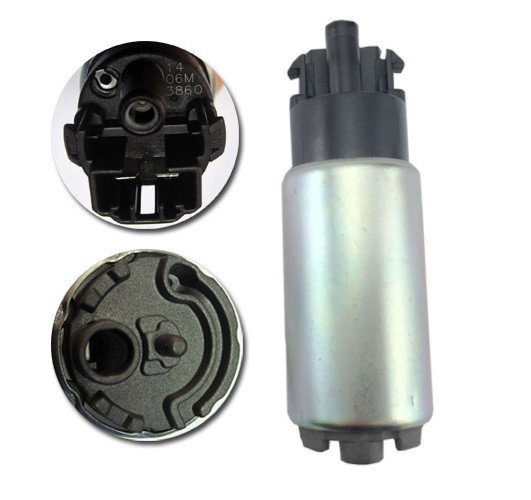

IN-TANK FUEL PUMP » PI1009

Feedback information
PI1009

Specification

Length 1/ Length 2
115
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x3mm
Pressure [Bar]
3,5
Flow [L/h]
110
Inner Diameter[mm]
9

Cross reference

HONDA
17040-S9A-M00
HONDA
17040-SCA-000
HONDA
17045-SJD-000_P
HONDA
17045-SJD-010_P
HONDA
17045-SJD-020_P
HONDA
17045-SJF-000_P
HONDA
17045-SJF-010_P
HONDA
17045-SNA-000_P
HONDA
17045-SNA-010_P
HONDA
17045-SNA-A00_P
HONDA
17045-SWT-E01_P
SUBARU
42022AG180
SUBARU
42022AG190
SUBARU
42022AG200
TOYOTA
23220-0S010
TOYOTA
23220-0S011
TOYOTA
23221-0F010
TOYOTA
23221-13020
TOYOTA
23221-31010
TOYOTA
23221-31050
TOYOTA
23221-50100
TOYOTA
23221-62060
TOYOTA
23221-75020
TOYOTA
23221-75030
TOYOTA
2322146100
TOYOTA
77020-0E012
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HONDA   »   Civic

09.05~01.11 1800 R18A FD1 JPN C809J A886J PI1009FS28001AFS28001 AC881J JT495JT458
09.05~02.08 1800 R18A1 FA1 RHD C809J A886J PI1009FS28001FS28001A AC881J JT458JT495
09.05~01.09 1800 R18A1 FA2 RHD C809J A886J FS28001API1009 AC881J JT495JT458
09.05~12.08 1800 R18A1 FD1 RHD C805J A886J PI1009FS28001A AC881J JT495JT458
12.08~01.12 1800 R18A1 FD1 RHD C805J A886J PI1009FS28001A AC881J JT495JT458
09.05~12.08 1800 R18A1 JHMFD1 C805JC809J A886J FS28001PI1009FS28001A AC8506AC881J JT458JT495
09.05~12.11 1800 R18A1 MRHFD1 C809JC805J A886J FS28001PI1009FS28001A AC881J JT495JT458
09.05~01.12 1800 R18A1 PADFD1 C805J A886J PI1009FS28001AFS28001 AC881J JT495JT458
09.05~12.11 1800 R18A1 RLHFD1 C805J A886J FS28001AFS28001PI1009 AC881J JT495JT458

HONDA   »   Civic (USA)

09.05~02.08 1800 R18A1 FA1 C809J A886J FS7309FS7309PPI1009 AC881J JT458JT495
02.08~01.11 1800 R18A1 FA1 C809J A886J FS7309PI1009FS7309P AC881J JT495JT458

HONDA   »   Civic VIII (EUR)

09.05~12.08 1800 R18A1 FD1 LHD C809J A886J PI1009FS28001FS28001A AC881J JT458JT495
12.08~01.12 1800 R18A1 FD1 LHD C809J A886J FS7309PFS7309FS28001API1009 AC881J JT495JT458

HONDA   »   CR-V

11.01~11.04 2000 K20A RD5 RHD C809J A868J PI1009FS28003FS7304A AC803SET JT455
11.04~04.07 2000 K20A RD5 RHD C809J A868J PI1009FS28003FS7304A AC803SET JT455
01.04~08.09 2000 K20A4 RD8 C809J A868J PI1009FS28003FS7304A AC803SET JT455JT495
11.04~12.06 2400 K24A1 RD6 C809J A868J FS7304API1009FS28003 AC803SET JT455
03.10~08.12 2400 K24Z4 RE7 LHD C809J A8531A8510 FS8020API1009FS8020 AC881J JT495JT475
03.10~08.12 2400 K24Z4 RE7 RHD C809J A8510 FS8020FS8020API1009 AC881J JT475JT495

HONDA   »   CR-V (USA)

09.01~01.05 2400 K24A1 RD6 C809J A868J PI1009FS28003FS7304A AC803SET JT455JT495
09.04~01.07 2400 K24A1 RD7 C809J A868J FS7304AFS28003PI1009 AC803SET JT455JT495

HONDA   »   Edix

01.04~06.12 2000 K20A BE3 C809J A868J FS8020AFS8020PI1009 AC803SET JT495JT455

HONDA   »   FR-V

01.05~11.09 2000 K20A9 BE3 C307JC809J A868J FS8020PI1009FS8020A AC803SET

LEXUS   »   GX470

11.02~08.09 4700 2UZ-FE UZJ120 C114T A194J FS8010FR1008PI1009 AC1504 JT437K

SUBARU   »   Forester

09.07~10.12 2000 EJ205 SH5 JPN C901J A926J FR1008PI1009FS8009 AC9321 JT468P
10.10~11.12 2500 EJ255 SH9 JPN C901J A926J FS8009FR1008PI1009 AC9321 JT488K
09.07~06.12 2500 EJ255 SH9A US C901J A926J FR1008PI1009FS8009 AC9321 JT468P
09.07~06.12 2500 EJ255 SH9KT RHD C901J A926J PI1009FS8009FR1008 AC9321 JT468P
09.07~08.12 2500 EJ255 SH9LT LHD C901J A926J FR1008PI1009FS8009 AC9321 JT468P

SUBARU   »   Impreza

06.07~12.11 1500 EL154 GE2 C901J A926J FS8009FR1008PI1009 AC9321
04.07~06.12 1500 EL154 GE2 JPN C901J A926J PI1009FS8009FR1008 AC9321 JT468P
07.08~12.11 1500 EL154 GE3 JPN C901J A926J FS8009PI1009 AC9321 JT468P
03.07~12.11 1500 EL154 GE3K C901J A926J PI1009FR1026FS8009 AC9321 JT468P
03.07~12.11 1500 EL154 GH2 C901J A926J FR1008PI1009FS8009 AC9321 JT468P
03.07~12.11 1500 EL154 GH3 JPN C901J A926J PI1009FS8009 AC9321 JT468PHC0014
03.07~12.11 1500 EL154 GH3# LHD C901J A926J PI1009FS8009 AC9321 HC0014JT468P
03.07~12.11 1500 EL154 GH3# RHD C901J A926J FS8009PI1009 AC9321 HC0014JT468P
03.07~12.11 2000 EJ203 GH7 JPN C901J A926J FR1008PI1009FS8009 AC9321 JT468P

SUBARU   »   Impreza WRX

01.08~12.11 2500 EJ255 GEEKD C901J A926J FR1008PI1009FS8009 AC9321
01.08~05.11 2500 EJ255 GREKD RHD KA C901J A926J FR1008PI1009FS8009FR1026 AC9321

SUBARU   »   Legacy

05.03~08.06 2000 EJ202 BL5K C901J A926J FS8009PI1009 AC102J JT468PHC0014
01.03~05.09 2000 EJ203 BL5 C901J A926J FS8009FR1008PI1009 AC102J HC0014JT468P
01.03~02.09 2000 EJ203 BP5 JPN C901J A926J FS8009FR1008PI1009 AC102J HC0014
01.03~02.09 2000 EJ204 BP5K RH C901J A926J FS8009FR1008PI1009 AC102J HC0014JT468P
01.03~02.09 2000 EJ204 BP5L LH C901J A926J PI1009FS8009FR1008 AC102J
01.03~04.09 2000 EJ20X BL5K C901J A926J FS8009PI1009FR1026 AC102J HC0014JT468P
01.03~05.09 2000 EJ20X/Y BL5 JPN C901J A926J FR1008FS8009PI1009 AC102J JT468PHC0014
01.03~04.09 2500 EJ25# BP9 JPN C901J A926J FS8009FR1008PI1009 AC102J JT468PHC0014
05.03~05.09 2500 EJ25# BP9K RH C901J A926J PI1009FS8009 AC102J JT468PHC0014
01.03~06.09 3000 30D BLEL C901JC307J A926J PI1009FR1008FS8009 AC102J HC0014
05.03~02.09 3000 EZ30 BPE LHD C307J A926J FR1008FS8009PI1009 AC102J HC0014
01.03~04.09 3000 EZ30D BLE JPN C307J A926J FR1008PI1009FS8009 AC102J HC0014
01.03~04.09 3000 EZ30D BPE JPN C307J A926J PI1009FS8009FR1008 AC102J HC0014
01.03~04.09 3000 EZ30D BPE RHD C307J A926J FS8009FR1008PI1009 AC102J

SUBARU   »   Legacy Outback

07.06~09.09 2500 EJ25# BP9 KC LH SA C901J A926J FR1008PI1009FS8009 AC102J JT468P
05.03~07.06 2500 EJ25# BP9LK EU LH C901J A926J PI1009FS8009 AC102J JT468PHC0014
07.06~09.09 2500 EJ25# BP9LK EU LH C901J A926J PI1009FS8009 AC102J JT468PHC0014
05.03~07.06 2500 EJ25# BP9LL CHL LH C901J A926J PI1009FS8009 AC102J JT468PHC0014
03.08~05.09 2500 EJ255 BPH C901J A926J FR1008PI1009FS8009 AC102J HC0014
01.03~04.09 3000 EZ30D BPE RHD C307J A926J FR1008PI1009FS8009 AC102J HC0014

TOYOTA   »   4 Runner

11.02~08.09 4000 1GR-FE GRN210 C114T A1011 FR1008FS8001FS8010PI1009 AC102J JT437K
11.02~08.09 4000 1GR-FE GRN215L C114T A1011 FR1008PI1009FS8010FS9094   JT437K
08.02~05.20 4700 2UZ-FE UZN215 C114T A194J PI1009FS6303A AC102J JT437K

TOYOTA   »   Crown Comfort

09.07~01.18 2000 1TR-FE TSS13Y OE116J A173J FR21001PI1009FS6042   JT436K

TOYOTA   »   Harrier

01.03~07.12 2400 2AZ-FE ACU30W C113J A199J FS8009FR1008PI1009 AC102J JT426K
02.03~06.06 3000 1MZ-FE MCU30W C111T A199J PI1009FS8009FR1008 AC1504AC102J JT422K
02.03~01.06 3000 1MZ-FE MCU35W C111T A199J FS8009FR1008PI1009 AC1504AC102J JT422K
02.03~06.06 3000 1MZ-FE MCU36W C111T A199J FS8009FR1008PI1009 AC102J JT422K

TOYOTA   »   Highlander

11.00~05.07 2400 2AZ-FE ACU25 C113J A199J FR1008PI1009FS8009   JT426K
08.03~05.07 3300 3MZ-FE MCU28 C111T A199J FS8009FR1008PI1009 AC104J JT422K

TOYOTA   »   Hilux Surf

08.04~07.09 2700 2TR-FE TRN210W OE116J A194J FR1008PI1009FS9094   JT435K
08.04~08.09 2700 2TR-FE TRN215W OE116J A194J PI1009FS9094FR1008 AC102J JT435K
10.02~08.04 2700 3RZ-FE RZN210W C111T A194J PI1009FS9094 AC102J JT435K
11.02~08.04 2700 3RZ-FE RZN215W C111T A194J PI1009FS9094FR1008 AC102J JT435K
11.02~08.05 3400 5VZ-FE VZN210W C111T A194J PI1009FS9094FR1008 AC102J JT435K
11.02~08.05 3400 5VZ-FE VZN215W C111T A194J FR1008PI1009FS9094 AC102J JT435K
08.05~08.09 4000 1GR-FE GRN215W C114T A1011 FR1008PI1009FS9094FS8001 AC102J JT437K

TOYOTA   »   Kluger

08.00~11.11 2400 2AZ-FE ACU25W C113J A199J FS6300FR1008PI1009 AC104J JT426K
11.00~05.07 3000 1MZ-FE MCU20W C111T A199J FR1007FS6300FR1008PI1009FS8009PI1001 AC104J JT426K
01.00~08.08 3000 1MZ-FE MCU25W C111T A199J FR1008FS6300PI1009PI1001FS8009FR1007 AC104J JT422KJT426K

TOYOTA   »   Land Cruiser Prado 120

09.02~08.09 2700 2TR-FE TRJ125 OE116J A194J FS9094FR1007PI1009 AC102J JT435K
08.04~08.09 2700 2TR-FE TRJ125L C111T A194J FS9094PI1009FR1007 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ120 C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.04 2700 3RZ-FE RZJ120L C111T A194J PI1009FS9094FR1008 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ120R C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ125 C111T A194J PI1009FR1007FS9094 AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ120W C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ121 C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.09 4000 1GR-FE GRJ120L C114T A1011 PI1009FS9094FR1008FS8001 AC102J JT435KJT437K
09.02~08.09 4000 1GR-FE GRJ120R C114T A1011 FS8001PI1009FS9094FR1008 AC102J JT437K
09.02~08.09 4000 1GR-FE GRJ120W C114T A1011 PI1009FS8001FR1008FS9094 AC102J JT437K

TOYOTA   »   Lite/Townace Truck

06.99~08.07 1800 7K-E KM70 C113J A182J FS6002UFR1007PI1009   JT282KJT281K
06.99~08.07 1800 7K-E KM70/KM75 C113J A182J FS6002UFR1007PI1009   JT282K
06.99~08.07 1800 7K-E KM80 C113J A182J FR1007PI1009FS6002U

TOYOTA   »   Sequoia

11.07~12.21 5700 3UR-FE USK60L OE0071 A1515 PI1009   JT568KJT525
11.07~12.21 5700 3UR-FE USK65L OE0071 A1515 PI1009 AC108J JT525

TOYOTA   »   Supra

05.93~08.02 3000 2JZ-GE JZA80L C111T A173J FS3060FR1007PI1009   JT429K

TOYOTA   »   Townace

06.99~08.07 1800 7K-E KM70/KM75 C113J A182J PI1009FS6002U   JT282K

TOYOTA   »   Tundra

01.07~07.19 4600 1UR-FE UPK51L OE0071 A1515A1546 PI1009 AC108J JT568KJT525
04.09~07.19 4600 1UR-FE UPK56L OE0071 A1546A1515 PI1009 AC108J JT568KJT525
02.99~12.06 4700 2UZ-FE UCK30L C114T A194J PI1002PI1009FS3205FR1007   JT437KJT435K
08.02~12.06 4700 2UZ-FE UCK41L C114T A194J FS3205FR1007PI1009   JT437KJT435K
01.07~04.09 5700 3UR-FE USK51L OE0071 A1515 PI1009 AC108J JT568K
01.07~08.13 5700 3UR-FE USK55L OE0071 A1515 PI1009 AC108J JT525JT525K
01.07~10.21 5700 3UR-FE USK56L OE0071 A1515A1546 PI1009 AC108J JT525
01.07~10.21 5700 3UR-FE USK57L OE0071 A1515 PI1009 AC108J JT525
