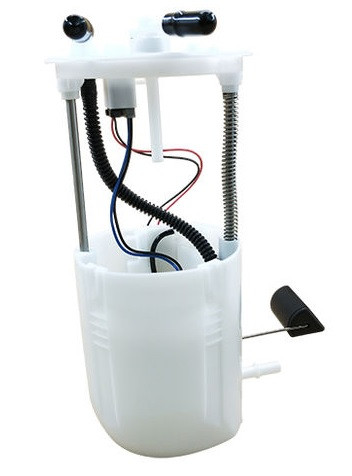

FUEL FILTER ASS~Y (IN-TANK) » FS2902P

Feedback information
FS2902P

Specification

Length 1/ Length 2
305
Outer Diameter 1/ Outer Diameter 2
130
Inner Diameter[mm]
9.5/7.9

Cross reference

SUZUKI
15100-65832
SUZUKI
15100-65842
SUZUKI
15100-65J01
SUZUKI
15100-80840
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

SUZUKI   »   Escudo

05.05~06.08 2000 J20A TD54W C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
05.05~06.08 2700 H27A TD94W C527J A974J FS6303AFS2902PPI1008 AC980J JT437K

SUZUKI   »   Grand Vitara

08.08~07.19 2000 J20A GR NOMADE C933J A974J FS6303AFS2902PPI1008 AC980C JT506K
06.05~07.16 2000 J20A JTD54V C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
01.05~12.15 2000 J20A TD54V C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
08.08~07.12 2000 J20A TD54V LHD Type 5 C933J A974J FS6303AFS2902PPI1008 AC980C JT506K
09.05~08.08 2000 J20A TE54V LHD Type 2 C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
01.06~08.08 2000 J20A TE54V RHD Type 2 C933J A974J FS6303AFS2902PPI1008 AC980J JT506K
08.08~07.12 2000 J20A TE54V RHD Type 4,5 C933J A974J FS6303AFS2902PPI1008 AC980C JT506K
07.12~07.19 2000 J20A TE54V RHD Type 8 C933J A974J FS6303AFS2902PPI1008 AC980C JT506K
06.01~09.08 2700 H27A JTD94V C527J A974J FS6303AFS2902PPI1008 AC980J JT437K

SUZUKI   »   Grand Vitara (USA)

09.05~01.09 2700 H27A TE94 C527J A974J FS6303AFS2902PPI1008 AC980J JT437K

SUZUKI   »   SX-4

05.06~10.14 1500 M15A YA11S C933J A991JA243PU FS6303AFS2902P AC982J JT516K
05.06~10.14 1500 M15A YB11S C933J A991J FS6303AFS2902P AC982J JT516K
06.07~10.14 1500 M15A YC11S C933J A991JA243PU FS6303AFS2902P AC982J JT516K
07.06~03.16 1600 M16A GYA21S C933J A991J FS6303AFS2902P AC982J JT516KJT621K
02.07~12.15 1600 M16A GYC21S SDN RHD TYPE 1-3 C933J A991J FS6303AFS2902P AC982J JT516K
02.08~12.15 1600 M16A GYC21S SDN RHD TYPE 4-7 C933J A243PU FS6303AFS2902P AC982J JT516K
02.08~11.11 1600 M16A RW416-4,5 HB RHD C933J A243PU FS6303AFS2902P AC982J JT516K
11.11~12.15 1600 M16A RW416-6 RHD C933J A243PU FS6303AFS2902P AC982J JT516KJT621K
06.06~01.14 1600 M16A YC21S SDN RHD C933J A991J FS6303AFS2902P AC982J JT516K
06.06~01.10 2000 J20A JS2YA4 C933J A993J FS6303AFS2902P AC982J JT654
04.07~07.12 2000 J20A JS2YC4 SDN C933J A993J FS6303AFS2902P AC982J JT654
07.06~05.09 2000 J20A YA41S C933J A993J FS6303AFS2902P AC982J JT654
07.06~05.09 2000 J20A YB41 C933J A993J FS6303AFS2902P AC982J
07.06~05.09 2000 J20A YB41S C933J A993J FS6303AFS2902P AC982J JT654
07.09~04.14 2000 J20B JS2YA5 C933J A2906 FS6303AFS2902P AC982J
07.09~04.14 2000 J20B JS2YB5 C933J A2906 FS6303AFS2902P AC982J
07.09~04.14 2000 J20B JS2YC5 SDN C933J A2906 FS6303AFS2902P AC982J JT621KJT654
01.10~06.12 2000 J20B YB41S C933J A2906 FS6303AFS2902P AC982J JT654
06.12~03.14 2000 J20B YB51S RHD C933J A2906 FS6303AFS2902P AC982J
06.12~03.14 2000 J20B YB5A C933J A2906 FS6303AFS2902P AC982J

SUZUKI   »   SX4 S-Cross

06.06~12.15 1600 M16A YA21S C933J A991J FS6303AFS2902P AC982J
06.06~12.15 1600 M16A YB21S LHD C933J A243PU FS6303AFS2902P AC982J JT516KJT621K
02.08~12.15 1600 M16A YB21S RHD TYPE 4,5 C933J A243PU FS6303AFS2902P AC982J JT516K
