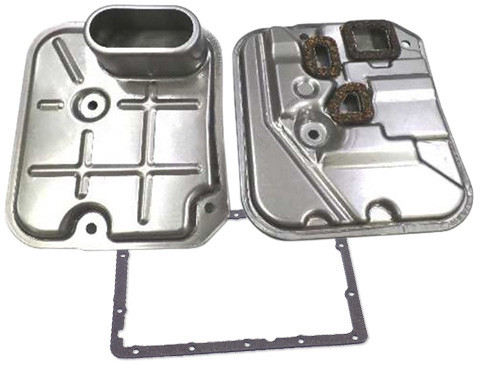

TRANSMISSION FILTER » JT506K
Feedback information
Specification
Size A
170
Size B
152
Height (mm)
54
Transmission Numbers
A44DE
Notes
Transmission Type：A44DE
24782-57B00
Cross reference
MITSUBISHI
MR581534
SUZUKI
26570-65D10
SUZUKI
26570-65D10-000
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
MITSUBISHI » Pajero IO
| 03.98~06.07 | 1800 | 4G93 | H76W | C415J | A3011 | FR1012PI1006PI1021FR1009 | AC301J | JT506KJT279K |
| 06.98~06.07 | 1800 | 4G93 | H76W JPN | C415J | A3011 | FR1012PI1006PI1021FR1009 | AC301J | JT279KJT506K |
SUZUKI » Escudo
| 11.97~11.00 | 1600 | G16A | TA02W | C933J | A956J | FS9090PI1019 | AC981SET | JT506K |
| 05.05~06.08 | 2000 | J20A | TD54W | C933J | A974J | FS6303AFS2902PPI1008 | AC980J | JT506K |
| 06.08~04.17 | 2400 | J24B | TDA4W | C933J | A995J | FS2901P | AC980J | JT506K |
SUZUKI » Grand Vitara
| 08.08~07.19 | 2000 | J20A | GR NOMADE | C933J | A974J | PI1008FS2902PFS6303A | AC980C | JT506K |
| 09.05~08.08 | 2000 | J20A | JB420W-2 | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 08.08~07.12 | 2000 | J20A | JB420W-5 | C933J | A974J | FS2902PPI1008FS6303A | AC980C | JT506K |
| 07.12~07.19 | 2000 | J20A | JB420W-8 | C933J | A974J | PI1008FS2902PFS6303A | AC980C | JT506K |
| 06.05~07.16 | 2000 | J20A | JTD54V | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 01.06~01.14 | 2000 | J20A | JTE54V | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 01.05~12.15 | 2000 | J20A | TD54V | C933J | A974J | FS6303API1008FS2902P | AC980J | JT506K |
| 01.10~07.19 | 2400 | J24B | GR NOMADE | C933J | A995J | FS2901P | AC980CAC980J | JT506K |
| 01.06~07.16 | 2400 | J24B | JB424W RHD | C933J | A995J | FS2901P | AC980J | JT506K |
| 08.08~01.10 | 2400 | J24B | JB424W-4 LHD | C933J | A995J | FS2901P | AC980CAC980J | JT506K |
| 01.10~08.12 | 2400 | J24B | JB424W-5 LHD | C933J | A995J | FS2901P | AC980CAC980J | JT506K |
| 08.12~03.14 | 2400 | J24B | JB424W-7 LHD | C933J | A995J | FS2901P | AC980C | JT506K |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD | C933J | A995J | FS2901P | AC980CAC980J | JT506K |
| 01.09~08.16 | 2400 | J24B | JB424X-6 | C933J | A995J | AC980C | JT506K |
