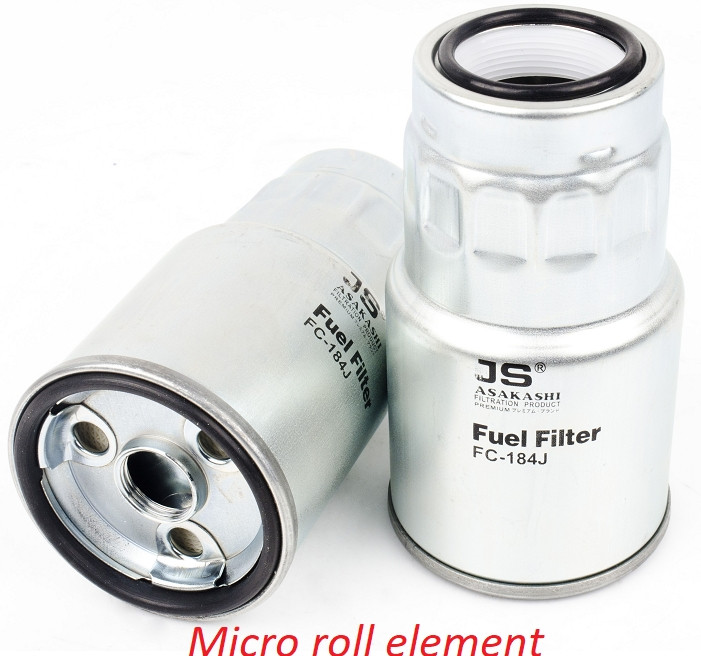

DIESEL FILTER (SPIN-ON) » FC184J
Feedback information
Specification
Height
124
Outside diameter
68
Thread Size
3/4"x16 UNF
type
Fuel/Water Separator
Notes
For micro corrugated rolled element
is suitable for the Common Rail system.
Couple filter
Cross reference
DAIHATSU
23390-64450-000
DAIHATSU
2339064450
MAZDA
R2L1-13-ZA5A
MAZDA
V9111-4002
MITSUBISHI
MQ901734
NISSAN
16403-HC250
NISSAN
AY500TY002
TOYOTA
23303-64450
TOYOTA
23390-33030
TOYOTA
23390-33060
TOYOTA
23390-64450
TOYOTA
23390-YZZAA
TOYOTA
2339033010
TOYOTA
2339033020
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
DAIHATSU » Delta
| 05.99~06.04 | 4600 | S05C | XZU322 | C519UC607J | A190J | SF2103FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU321U | C607J | A1009 | SF2103FC158HFE0020 | ||
| 05.00~06.04 | 4900 | S05D | XZU341 | C519U | A190J | SF2103FC158HFE0020 |
DAIHATSU » Delta Wide
| 11.96~05.99 | 2000 | 2C | CR41J | C116J | A171J | FC184J | ||
| 11.96~05.99 | 2000 | 2C | CR51J | C116J | A171J | FC184J | ||
| 12.98~08.02 | 2200 | 3C-E | CR42J | C116J | A171J | FC184J | ||
| 12.98~08.02 | 2200 | 3C-E | CR52J | C116J | A171J | FC184J | ||
| 11.96~10.01 | 2200 | 3C-T | CR40N | C116J | A171J | FC184J | ||
| 11.96~08.02 | 2200 | 3C-T# | CR50N | C116J | A171J | FC184J |
MAZDA » 323
MAZDA » 626 Coupe
| 06.98~11.00 | 2000 | RF-T | GF | C307J | A470J | FC184J | AC4501SET | |
| 06.98~ | 2000 | RF-T | GW | C307J | A470J | FC184J | ||
| 12.99~10.02 | 2000 | RF-T | GW | C307J | A470J | FC184J | AC4501SET |
MAZDA » Bongo
| 12.03~09.10 | 2000 | RF-T | SKF2L | C307J | A464J | FC184J | ||
| 12.03~09.10 | 2000 | RF-T | SKF2M | C307J | A464J | FC184J | ||
| 12.03~09.10 | 2000 | RF-T | SKF2T | C307J | A464J | FC184J | ||
| 12.03~09.10 | 2000 | RF-T | SKF2V | C307J | A464J | FC184J | ||
| 05.99~03.04 | 2200 | R2 | SK22L | C307JC506JC412J | A464J | FC184J | ||
| 05.99~12.03 | 2200 | R2 | SK22M | C307JC506J | A464J | FC184J | ||
| 05.99~12.03 | 2200 | R2 | SK22T | C109J | A464J | FC184J | ||
| 05.99~12.03 | 2200 | R2 | SK22V | C306JC109J | A464J | FC184J | ||
| 08.93~05.99 | 2200 | R2 | SS28V | C412J | A465JA422J | FC326JFC184J |
MAZDA » Bongo Brawny
| 09.02~08.07 | 2000 | RF-T | SKF6M | C307J | A464J | FC184J | ||
| 11.04~08.10 | 2000 | RF-T | SKF6V | C307J | A464J | FC184J | ||
| 09.02~08.07 | 2000 | RF-T | SKFHM | C307J | A464J | FC184J | ||
| 09.02~08.07 | 2000 | RF-T | SKFHV | C307J | A464J | FC184J | ||
| 09.87~06.99 | 2200 | R2 | SD29M | C307JC506J | A453J | FC321JFC326JFC184J | ||
| 12.83~06.99 | 2200 | R2 | SD29T | C307JC412JC304J | A453J | FC326JFC184JFC321J | ||
| 05.83~06.99 | 2200 | R2 | SD2AT | C412JC307J | A453JA435J | FC184JFC321JFC326J | ||
| 06.99~09.02 | 2200 | R2 | SK24L | C307JC506J | A465J | FC184J | ||
| 06.99~09.02 | 2200 | R2 | SK24T | C109J | A465J | FC184J | ||
| 04.97~06.99 | 2500 | WL | SD59M | C109J | A453J | FC184J | ||
| 04.97~06.99 | 2500 | WL | SD5AM | C109J | A453J | FC184J | ||
| 04.97~06.99 | 2500 | WL | SD5AT | C109J | A453J | FC184J | ||
| 06.99~09.02 | 2500 | WL | SK24T | C109J | A465J | FC184J | ||
| 06.99~09.02 | 2500 | WL | SK26L | C307JC506J | A465J | FC184J | ||
| 06.99~09.02 | 2500 | WL | SK26T | C109J | A465J | FC184J | ||
| 06.99~11.04 | 2500 | WL | SK54# | C109J | A465J | FC184J | ||
| 06.99~11.04 | 2500 | WL | SK56M | C109J | A465J | FC184J | JT306K | |
| 06.99~11.04 | 2500 | WL | SK56V | C109J | A465J | FC184J | JT306K | |
| 06.99~11.04 | 2500 | WL | SK5HM | C109J | A465J | FC184J | ||
| 06.99~11.04 | 2500 | WL | SK5HV | C109J | A465J | FC184J | ||
| 06.99~09.02 | 2500 | WL | SKE4T | C109J | A465J | FC184J | ||
| 04.97~06.99 | 2500 | WL | SR59V | C109J | A465J | FC184J | ||
| 04.97~06.99 | 2500 | WL | SR5AM | C109J | A465J | FC184J |
MAZDA » Capella
| 07.98~06.02 | 2000 | RF-T | GEEP | C307J | A470J | FC184J | ||
| 06.97~09.99 | 2000 | RF-T | GFFP | C307J | A470J | FC184J | ||
| 10.97~09.99 | 2000 | RF-T | GWFW | C307J | A470J | FC184J |
MAZDA » Familia
MAZDA » J100
MAZDA » J80
MAZDA » Laser
MAZDA » Mazda 6
MAZDA » Mazda 6 Wagon
| 02.02~03.05 | 2000 | RF5 | GY | C307J | A470J | FC184J | AC401J | JT317KJT318KJT132K |
| 03.05~11.07 | 2000 | RF7 | GY | C307J | A470J | FC184JFC158J | AC401J | JT317KJT318KJT132K |
MAZDA » MPV
MAZDA » Premacy
MAZDA » Titan
| 12.04~08.07 | 2000 | RF-T | SYF4L | C307J | A471J | FC184J | AC4508 | |
| 12.04~08.07 | 2000 | RF-T | SYF4T | C307J | A471J | FC184J | ||
| 08.04~08.07 | 2000 | RF-T | SYF6L | C307J | A471J | FC184J | ||
| 08.04~09.07 | 2000 | RF-T | SYF6T | C307J | A471J | FC184J | AC4508 | |
| 10.00~01.05 | 2500 | WL | SY54L | C109J | A471J | FC184J | ||
| 10.00~01.05 | 2500 | WL | SY54T | C109J | A471J | FC184J | ||
| 10.00~01.05 | 2500 | WL | SY56L | C109J | A471J | FC184J | ||
| 10.00~01.05 | 2500 | WL | SY56T | C109J | A471J | FC184J |
MAZDA JAPAN FORD » J100
MAZDA JAPAN FORD » Laser
MITSUBISHI » Delica
| 02.04~07.10 | 2000 | RF-T | SKF6M | C307J | A464J | FC184J | ||
| 02.04~07.10 | 2000 | RF-T | SKF6V | C307J | A464J | FC184J | ||
| 09.99~03.04 | 2500 | WL | SK56M | C306J | A465J | FC184J | ||
| 09.99~03.04 | 2500 | WL | SK56V | C307JC306J | A465J | FC184J |
MITSUBISHI » Delica Truck
| 12.03~07.10 | 2000 | RF-T | SKF2L | C307J | A464J | FC184J | ||
| 12.03~07.10 | 2000 | RF-T | SKF2M | C307J | A464J | FC184J | ||
| 12.03~07.10 | 2000 | RF-T | SKF2T | C307J | A464J | FC184J | ||
| 12.03~07.10 | 2000 | RF-T | SKF2V | C307J | A464J | FC184J | ||
| 09.99~12.03 | 2200 | R2 | SK22L | C307J | A464J | FC184J | ||
| 09.99~12.03 | 2200 | R2 | SK22M | C307JC506J | A464J | FC184J | ||
| 09.99~12.03 | 2200 | R2 | SK22T | C307J | A464J | FC184J | ||
| 09.99~12.03 | 2200 | R2 | SK22V | C307J | A464J | FC184J |
NISSAN » Vanette
| 12.03~09.07 | 2000 | RF-T | SKF2LN | C506JC307J | A464J | FC184J | ||
| 12.03~09.10 | 2000 | RF-T | SKF2MN | C307J | A464J | FC184J | ||
| 12.03~08.10 | 2000 | RF-T | SKF2TN | C307J | A464J | FC184J | ||
| 12.03~09.07 | 2000 | RF-T | SKF2VN | C307JC306J | A464J | FC184J | ||
| 04.94~06.99 | 2200 | DIE22 | SS28MN | C307J | A465JA422J | FC326JFC184J | ||
| 04.94~12.03 | 2200 | R2 | SE28MN | C307JC506J | A453J | FC326JFC184J | ||
| 06.99~12.03 | 2200 | R2 | SK22LN | C307J | A464J | FC184J | ||
| 06.99~12.03 | 2200 | R2 | SK22MN | C307J | A464J | FC184J | ||
| 06.99~12.03 | 2200 | R2 | SK22TN | C306J | A464J | FC184J | ||
| 06.99~12.03 | 2200 | R2 | SK22VN | C306J | A464J | FC184J | ||
| 10.96~06.99 | 2200 | R2 | SS28HN | C412J | A465J | FC184J | ||
| 04.94~07.99 | 2200 | R2 | SS28VN | C412J | A422JA465J | FC184JFC326J |
NISSAN » Vanette Truck
TOYOTA » Avensis
| 05.06~11.08 | 2000 | 1ADFTV | ADT250L | OE116J | A1516 | FC184J | ||
| 01.97~12.03 | 2000 | 1CD-FTV | CDT220L | C115J | FC184JSF2103 | AC1502RSET | ||
| 08.99~01.03 | 2000 | 1CD-FTV | CDT220R | C115J | A1511 | FC184J | ||
| 10.08~02.15 | 2000 | 2ADFTV | ADT271L | OE116J | A1517 | FC184JFC158H | AC108J | JT394K |
| 11.11~08.15 | 2000 | 2ADFTV | ADT271R | OE116J | A1517 | FC184JFC158H | AC108J | JT394K |
| 10.97~12.03 | 2000 | 2C-T | CT220L | C116J | A1506 | FC184JSF2102PM1012 | AC1502SET | |
| 10.97~12.03 | 2000 | 2C-TE | CT220 | C116J | A1506 | FC184JSF2103 | AC1502SET | |
| 06.05~01.08 | 2200 | 2AD-FHV | ADT225 | OE116J | A1516 | FC184J | AC1503 | |
| 04.05~11.08 | 2200 | 2AD-FTV | ADT251R | OE116J | A1516 | FC184J | AC1503 |
TOYOTA » Avensis Verso
TOYOTA » Caldina
| 05.98~06.02 | 2200 | 3C-E | CT197V | C116J | A161J | PM1013SF2102FC184J | AC1502RSET | JT387K |
| 05.98~06.02 | 2200 | 3C-E | CT199V | C116J | A161J | SF2102PM1012FC184J | ||
| 08.97~09.02 | 2200 | 3C-TE | CT216G | C116J | A181J | FC158JFC184J | AC1502RSET | JT423K |
TOYOTA » Carina
| 08.92~08.96 | 2000 | 2C | CT190 | C116JC112J | A161JA1506 | FC184JFC158J | AC1502SET | |
| 08.96~08.98 | 2000 | 2C-T | CT210 | C116J | A181J | SF2102FC184JPM1012 | JT387K | |
| 08.98~12.01 | 2200 | 3C-TE | CT211 | C116J | A161J | FC184JSF2102PM1012 | JT387K | |
| 08.98~12.01 | 2200 | 3C-TE | CT216 | C116J | A161J | FC184JSF2102PM1012 | JT387K |
TOYOTA » Carina E
TOYOTA » Chaser
| 09.96~08.99 | 2400 | 2L-TE | LX100 | C115J | A180J | FC184JSF2102 | AC21001SET | JT281K |
| 10.92~09.96 | 2400 | 2L-TE | LX90 | C115J | A180J | SF2102FC158JFC184J |
TOYOTA » Coaster
| 01.93~07.99 | 3400 | 3B | BB40 | C101V | A136J | SF2103FC158JPM1006 | ||
| 01.93~07.99 | 3400 | 3B | BB46V | C101V | A136J | FC158JSF2103 | ||
| 01.93~01.05 | 3700 | 14B | BB42 | SF2103 | ||||
| 08.04~12.16 | 4000 | N04C | XZB40 | C607J | A188J | SF2103 | ||
| 08.04~12.16 | 4000 | N04C | XZB46V | C607JC608J | A188J | SF2103FC158H | ||
| 08.04~12.16 | 4000 | N04C | XZB50 | C607JC608J | A188J | FC158HFC0071NSF2103 | ||
| 08.04~12.16 | 4000 | N04C | XZB50R | SF2103PM1005 | ||||
| 08.04~12.16 | 4000 | N04C | XZB51 | C607JC608J | A188J | FC158HSF2103 | ||
| 12.00~01.07 | 4000 | N04C | XZB53 | SF2103 | ||||
| 08.04~12.16 | 4000 | N04C | XZB56V | C607JC608J | A188J | FC158HSF2103 | ||
| 09.06~12.16 | 4000 | N04C | XZB59 | SF2103 | ||||
| 07.04~07.07 | 4000 | N04C-T | XZB40R | C607JC608J | A188J | SF2103FC158H | ||
| 12.00~10.03 | 4100 | 15B-F | BB53L | SF2103 | ||||
| 12.00~10.03 | 4100 | 15B-F | BB54L | SF2103 | ||||
| 12.95~07.99 | 4100 | 15B-F | BB55 | C115J | A147J | FC158JSF2103 | ||
| 05.97~08.04 | 4100 | 15B-F | BB58 | C115J | A147J | FC158JSF2103 | ||
| 08.04~07.07 | 4100 | 15B-F | XZB40L | SF2103 | ||||
| 12.00~01.07 | 4100 | 15B-FT | BB53L | SF2103 | ||||
| 12.00~01.07 | 4100 | 15B-FT | BB54L | SF2103 | ||||
| 01.93~03.05 | 4100 | 15B-FT | BB58 | SF2103 | ||||
| 01.93~08.06 | 4100 | 15B-FTE | BB50L | C115J | A188J | FC158JSF2103 | ||
| 01.93~08.06 | 4100 | 15B-FTE | BB50R | C115J | A188J | SF2103FC158J | ||
| 01.93~03.05 | 4100 | 15B-FTE | BB58 | C115J | A147J | FC158JSF2103 | ||
| 05.97~08.06 | 4100 | 15B-FTE | BB59 | SF2103 | ||||
| 03.02~12.16 | 4100 | 1BZ-FPE | BZB40 | C115J | A136JA147J | SF2103FC158H | ||
| 03.02~12.16 | 4100 | 1BZ-FPE | BZB50 | C115J | A136J | SF2103 | ||
| 01.93~08.08 | 4200 | 1H-Z | HZB40 | C115J | A147J | SF2103FC158J | ||
| 01.93~08.04 | 4200 | 1H-Z | HZB41 | C115J | A147J | SF2103PM1005FC158J | ||
| 01.93~08.04 | 4200 | 1H-Z | HZB46V | C115J | A147J | FC158JSF2103 | ||
| 01.93~01.05 | 4200 | 1H-Z | HZB50L | C115J | A147J | PM1005FC158JSF2103 | ||
| 01.93~12.16 | 4200 | 1H-Z | HZB50R | C115J | A147J | SF2103FC158H | ||
| 01.93~08.04 | 4200 | 1H-Z | HZB56V | C115J | A147J | SF2103PM1005FC158J | ||
| 01.17~ | 4200 | 1H-Z | HZB60R | C115J | A147J | SF2103FC158H | ||
| 01.17~ | 4200 | 1H-Z | HZB70L | C115J | A147J | SF2103FC158H | ||
| 05.95~05.99 | 4200 | 1HD-FT | HDB50 | C115J | A147J | FC158JSF2103PM1005 | ||
| 05.95~08.04 | 4200 | 1HD-FT | HDB51 | C115J | A147J | FC158HFC158JSF2103PM1005 | ||
| 06.99~08.04 | 4200 | 1HD-FTE | HDB50 | C115J | A188JA147J | FC158JSF2103PM1005 | ||
| 06.99~08.04 | 4200 | 1HD-FTE | HDB51 | C115J | A188JA147J | FC158JSF2103PM1005 | ||
| 01.93~05.95 | 4200 | 1HD-T | HDB50 | C115J | A147J | SF2103PM1005FC158J | ||
| 01.93~08.04 | 4200 | 1HD-T | HDB51 | C115J | A147J | FC158JSF2103PM1005 |
TOYOTA » Corolla
| 08.04~02.07 | 1400 | 1ND-TV | NDE120L SDN EU | C111T | A1507 | FC184J | AC1503 | |
| 08.04~02.07 | 1400 | 1ND-TV | NDE120L WGN EU | C111T | A1507 | FC184J | AC1503 | |
| 05.14~11.19 | 1400 | 1ND-TV | NDE170 | OE118J | A1517 | SF2103FC158J | AC108C | |
| 01.97~06.02 | 2000 | 1CD-FTV | CDE110 | C116J | A1511 | SF2103FC184J | AC1501 | |
| 10.01~09.08 | 2000 | 1CD-FTV | CDE120L | C116J | A1507 | FC184J | AC101JAC1503 | |
| 01.00~01.08 | 2000 | 2C | CE120 | C116J | A161J | FC184JSF2103 |
TOYOTA » Corolla Altis
TOYOTA » Corolla Fielder
TOYOTA » Corolla HB
TOYOTA » Corolla Verso
| 10.01~01.04 | 2000 | 1CD-FTV | CDE120L | C116J | A1507 | FC184J | AC101J | |
| 08.05~02.09 | 2200 | 2AD-FTV | AUR10 | OE116J | A1516 | FC184J | AC101J |
TOYOTA » Corona Premio
| 01.96~12.01 | 2000 | 2C-T | CT210 | C116J | A181J | SF2102PM1012FC184J | AC1502RSET | JT387K |
| 01.96~12.97 | 2000 | 2C-T | CT215 | C116J | A181J | FC184J | ||
| 12.97~12.01 | 2200 | 3C-TE | CT211 | C116J | A181J | FC184JSF2102PM1012 | AC1502RSET | JT387K |
| 12.97~12.01 | 2200 | 3C-TE | CT216 | C116J | A181J | FC184J |
TOYOTA » Cresta
| 09.96~08.99 | 2400 | 2L-TE | LX100 | C115J | A180J | FC184J | JT281K | |
| 01.92~09.96 | 2400 | 2L-TE | LX90 | C115J | A180J | FC158JFC184JSF2102 | AC21001SET | JT281K |
TOYOTA » Crown
| 08.93~04.99 | 2400 | 2L-TE | LS130W | C115J | A167J | FC184J | AC1514C | JT429K |
| 12.95~09.99 | 2400 | 2L-TE | LS151 | C115J | A180J | FC158JFC184JSF2102 | ||
| 08.95~09.99 | 2400 | 2L-TE | LS151H | C115J | A180J | FC184JSF2102FC158J | AC21001SET | JT429K |
TOYOTA » Crown Comfort
| 01.96~01.98 | 2400 | 2L | LXS10 | C115J | A167J | SF2102FC184J | ||
| 01.95~06.07 | 2400 | 2L-TE | LXS11 | C115J | A167J | FC184J | ||
| 12.95~08.99 | 2400 | 2L-TE | LXS11 | C115J | A167J | FC184JSF2102 |
TOYOTA » Dyna
| 08.04~09.07 | 2500 | 2KD-FTV | KDY220 | C111T | A147J | SF2103FC158H | JT436K | |
| 07.04~09.07 | 2500 | 2KD-FTV | KDY230 | C111T | A147J | SF2103FC158H | ||
| 10.01~09.07 | 2500 | 2KD-FTV | KDY240V | C111T | A147J | SF2103FC158H | AC1502RSET | |
| 08.04~09.07 | 2500 | 2KD-FTV | KDY270 | C111T | A147J | SF2103FC158H | ||
| 08.04~09.07 | 2500 | 2KD-FTV | KDY280 | C111T | A147J | FC158HSF2103 | JT436K | |
| 08.04~09.07 | 2500 | 2KD-FTV | KDY290V | C111T | A147J | FC158HSF2103 | ||
| 09.07~ | 3000 | 1KD-FTV | KDY221 | C111T | A147J | SF2103FC158H | AC933JAC1510 | JT436K |
| 09.06~02.15 | 3000 | 1KD-FTV | KDY221R | C111T | A147J | SF2103FC158H | ||
| 07.10~ | 3000 | 1KD-FTV | KDY231 | C111T | A147J | SF2103FC158H | AC933JAC1510 | JT436K |
| 09.07~ | 3000 | 1KD-FTV | KDY231L | C111T | A147J | SF2103FC158H | ||
| 09.07~ | 3000 | 1KD-FTV | KDY241V | C111T | A147J | SF2103FC158H | ||
| 01.07~ | 3000 | 1KD-FTV | KDY271 | C111T | A147J | SF2103FC158H | ||
| 01.07~ | 3000 | 1KD-FTV | KDY281 | C111T | A147J | FC158JSF2103 | JT436K | |
| 07.01~08.04 | 3000 | 5L | LY220 | C115J | A136J | FC158HSF2103 | JT279K | |
| 06.01~08.04 | 3000 | 5L | LY230 | C115J | A136J | FC158HSF2103 | ||
| 07.01~08.04 | 3000 | 5L | LY240V | C115J | A136J | SF2103FC158H | ||
| 07.01~08.04 | 3000 | 5L | LY270 | C115J | A136J | FC158HSF2103 | ||
| 07.01~08.04 | 3000 | 5L | LY280 | C115J | A136J | SF2103FC158H | JT279K | |
| 07.01~08.04 | 3000 | 5L | LY290V | C115J | A136J | SF2103FC158H | ||
| 09.02~03.08 | 3700 | 14B | BU303 | SF2103 | ||||
| 09.02~03.08 | 3700 | 14B | BU343 | SF2103 | ||||
| 05.99~06.04 | 3700 | 4B | BU301 | C115J | A190J | SF2103FC158H | ||
| 05.99~06.04 | 3700 | 4B | BU306 | C115J | A190J | SF2103FC158H | ||
| 05.99~06.04 | 3700 | 4B | BU306V | C115J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 3700 | 4B | BU346 | C115J | A190J | FC158HSF2103 | ||
| 12.02~03.09 | 4000 | N04C | XZU347L | SF2103 | ||||
| 12.02~03.09 | 4000 | N04CTU | XZU337L | SF2103 | ||||
| 12.02~01.06 | 4100 | 15B-FTE | BU300 | SF2103 | ||||
| 12.02~01.06 | 4100 | 15B-FTE | BU340R | SF2103 | ||||
| 05.99~05.07 | 4100 | 15B-FTE | BU400 | C115J | A1004 | SF2103FC158J | ||
| 05.99~06.04 | 4100 | 15B-FTE | BU410 | C115J | A1004 | SF2103FC158J | JT410K | |
| 11.04~01.07 | 4100 | 15B-FTE | BU410L | SF2103 | ||||
| 05.99~06.04 | 4100 | 15B-FTE | BU420 | C115J | A1004 | SF2103FC158J | JT410K | |
| 11.04~01.07 | 4100 | 15B-FTE | BU420L | SF2103 | ||||
| 05.99~06.04 | 4100 | 15B-FTE | BU430 | C115J | A1004 | FC158HSF2103 | JT410K | |
| 07.99~10.06 | 4100 | 15B-FTE | XZU300L | SF2103 | ||||
| 07.99~10.06 | 4100 | 15B-FTE | XZU320L | C115J | A1004 | FC158HSF2103 | ||
| 01.99~10.06 | 4100 | 15B-FTE | XZU330L | SF2103 | ||||
| 07.99~10.06 | 4100 | 15B-FTE | XZU330L | SF2103 | ||||
| 07.99~10.06 | 4100 | 15B-FTE | XZU340L | SF2103 | ||||
| 05.00~06.03 | 4100 | 15B-LPG | XZU301H | SF2103 | ||||
| 05.99~ | 4100 | 15BLPG | XZU301A | SF2103 | ||||
| 05.00~06.04 | 4100 | 15BLPG | XZU302 | SF2103 | ||||
| 05.00~06.03 | 4100 | 15BLPG | XZU341 | C115J | A190J | SF2103 | ||
| 05.00~ | 4100 | 15BLPG | XZU342 | SF2103 | ||||
| 05.99~06.04 | 4600 | S05C | XZU302 | C607JC519U | A190J | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU302A | C607JC519U | A190J | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU302D | C607JC519U | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU302H | C607JC519U | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU307 | C519U | A190J | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU307V | C519UC607J | A190J | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU312D | C519UC607J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU322 | C607JC519U | A190J | SF2103FC158JFC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU322D | C607JC519U | A190J | SF2103FC158H | ||
| 05.99~06.06 | 4600 | S05C | XZU337 | C607JC519U | A190J | SF2103FC158H | ||
| 05.00~06.04 | 4600 | S05C | XZU342 | C607JC519U | A190J | SF2103FC158H | ||
| 10.00~12.06 | 4600 | S05C | XZU342R | SF2103 | ||||
| 05.99~06.04 | 4600 | S05C | XZU347 | C519U | A190J | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU352D | C607JC519U | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU362 | C519UC607J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU362A | C519UC607J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU362D | C519UC607J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU372 | C519UC607J | A190J | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU382 | C607JC519U | A190JA1004 | FC158HSF2103 | ||
| 05.99~06.04 | 4600 | S05C | XZU402 | C519UC607J | A1004 | SF2103FC158H | ||
| 05.99~06.04 | 4600 | S05C | XZU412 | C519U | A1004 | SF2103FC158H | ||
| 10.00~10.08 | 4600 | S05C | XZU412L | SF2103 | ||||
| 12.00~10.06 | 4600 | S05C | XZU412R | SF2103 | ||||
| 05.99~08.04 | 4900 | S05D | XZU301 | C607JC519U | A1009A190J | FC158HSF2103FE0020 | ||
| 05.00~03.05 | 4900 | S05D | XZU301A | C607J | A190JA1009 | SF2103FC158HFE0020 | ||
| 05.99~10.06 | 4900 | S05D | XZU301D | C607JC519U | A1009A190J | FE0020SF2103FC158H | ||
| 05.99~09.02 | 4900 | S05D | XZU301H | C519U | A190J | SF2103FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU306 | C519UC607J | A1009A190J | FC158HSF2103FE0020 | ||
| 05.99~06.02 | 4900 | S05D | XZU311A | C519U | A190J | SF2103FC158H | ||
| 05.99~ | 4900 | S05D | XZU311D | C607JC519U | A190J | SF2103 | ||
| 05.99~06.02 | 4900 | S05D | XZU321A | C519U | A190J | SF2103FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU321D | C607J | A1009 | SF2103FC158HFE0020 | ||
| 05.99~10.06 | 4900 | S05D | XZU331 | C607JC519U | A190JA1009 | SF2103FC158HFE0020 | ||
| 05.00~06.04 | 4900 | S05D | XZU341 | C519U | A190J | FE0020FC158HSF2103 | ||
| 05.99~10.06 | 4900 | S05D | XZU346 | C607JC519U | A1009A190J | FC158HFE0020SF2103 | ||
| 05.99~10.06 | 4900 | S05D | XZU351D | C519UC607J | A190JA1009 | FE0020SF2103FC158H | ||
| 05.99~06.04 | 4900 | S05D | XZU371 | C607JC519U | A190J | FC158HSF2103 | ||
| 05.99~10.06 | 4900 | S05D | XZU401 | C519UC607J | A1004 | FC158HFE0020SF2103 | ||
| 05.99~10.06 | 4900 | S05D | XZU411 | C607JC519U | A1004 | SF2103FC158H | ||
| 05.99~10.06 | 4900 | S05D | XZU421 | C607JC519U | A1004 | FC158HFE0020SF2103 |
TOYOTA » Dyna 150
TOYOTA » Gaia
TOYOTA » Granvia / Grand Hiace
| 08.96~05.02 | 3000 | 1KZ-TE | KCH10W | C115J | A185J | FC184JSF2102 | JT420K | |
| 10.95~05.02 | 3000 | 1KZ-TE | KCH16W | C115J | A185J | SF2102FC184J | JT420K |
TOYOTA » Hiace
| 08.95~08.01 | 2400 | 2L-T | LXH12L | C115J | A185J | SF2102FC184J | JT278K | |
| 08.95~08.01 | 2400 | 2RZ-E | LXH12R | C115J | A185J | SF2102FC184J |
TOYOTA » Hiace Regius Touring
| 04.97~07.99 | 3000 | 1KZ-TE | KCH40G | C115J | A185J | FC184JSF2102PM1021 | JT429K | |
| 04.97~05.02 | 3000 | 1KZ-TE | KCH40W | C115J | A185J | FC184JSF2102PM1021 | JT429KJT420K | |
| 04.97~09.99 | 3000 | 1KZ-TE | KCH46G | C115J | A185J | FC184JSF2102PM1021 | JT429K | |
| 04.97~05.02 | 3000 | 1KZ-TE | KCH46W | C115J | A185J | FC184JPM1021SF2102 | JT420KJT429K | |
| 06.97~05.02 | 3000 | 5L | LXH49V | C115J | A185J | FC184JSF2102 | JT278K | |
| 04.97~08.04 | 3000 | 5L-E | LXH43V | C115J | A185J | FC184J | JT278K |
TOYOTA » Hilux
| 08.97~03.06 | 2400 | 2L | LN140 | SF2103 | ||||
| 08.97~03.06 | 2400 | 2L | LN145 | C115J | A1535 | FC184JSF2103 | ||
| 08.85~08.05 | 2400 | 2L | LN145R | C101V | A191JA1535 | FC158HSF2103 | ||
| 11.97~08.04 | 2400 | 2L | LN150 | SF2103 | ||||
| 08.97~11.05 | 2400 | 2L | LN155 | SF2103 | ||||
| 08.97~08.01 | 2400 | 2L-T | LN165L | C115J | A1535 | FC184JSF2103 | ||
| 08.97~12.03 | 2400 | 2L-T | LN165R | C115J | A191J | SF2103FC184J | ||
| 11.97~08.01 | 2400 | 2L-T | LN170L | C115J | A191J | FC184JSF2103 | ||
| 01.98~12.03 | 2400 | 2L-T | LN190L | SF2103 | ||||
| 08.97~08.99 | 2400 | 2L-TE | LN165 | C115J | A191J | FC184JSF2103 | JT431K | |
| 08.97~08.99 | 2400 | 2L-TE | LN170H | C115J | A191J | FC158JSF2103 | JT431K | |
| 08.01~08.05 | 2500 | 2KD-FTV | KDN145 | C111T | A191J | SF2103PM1008FC158H | ||
| 08.01~08.05 | 2500 | 2KD-FTV | KDN150 | SF2103 | ||||
| 06.98~09.04 | 2500 | 2KD-FTV | KDN155 | SF2103 | ||||
| 08.85~08.05 | 2500 | 2KD-FTV | KDN155R | SF2103 | ||||
| 08.01~08.05 | 2500 | 2KD-FTV | KDN165 | C222VC222JC111T | A191J | SF2103FC158JPM1008 | ||
| 08.97~03.06 | 2500 | 2KD-FTV | KDN190 | SF2103 | ||||
| 08.97~11.05 | 2800 | 3L | LN141 | SF2103 | ||||
| 08.97~11.05 | 2800 | 3L | LN146 | SF2103 | ||||
| 08.97~03.06 | 2800 | 3L | LN166L | C101V | A1535 | SF2103FC158H | ||
| 08.97~03.06 | 2800 | 3L | LN166R | C101V | A1535 | SF2103PM1008FC158H | ||
| 08.97~11.05 | 2800 | 3L | LN171 | SF2103 | ||||
| 08.97~11.05 | 2800 | 3L | LN191L | SF2103 | ||||
| 06.98~09.04 | 3000 | 1KD-FTV | KDN151 | SF2103 | ||||
| 08.97~03.06 | 3000 | 1KD-FTV | KDN166 | SF2103 | ||||
| 08.97~03.06 | 3000 | 1KZ-TE | KZN165R | C115J | A1535 | FC158JSF2103FC158HPM1008 | ||
| 08.97~03.06 | 3000 | 1KZ-TE | KZN190 | C115J | A1535 | SF2103PM1008FC158H | ||
| 08.97~07.04 | 3000 | 5L | LN167 | C115J | A191J | FC158JSF2103 | ||
| 08.97~03.06 | 3000 | 5L-E | LN147 | C115J | A191J | FC184JSF2103 | ||
| 08.97~03.06 | 3000 | 5L-E | LN152 | SF2103 | ||||
| 08.97~03.06 | 3000 | 5L-E | LN157 | SF2103 | ||||
| 08.97~09.09 | 3000 | 5L-E | LN167R | C115JC101V | A1535A191J | FC158HSF2103PM1008 | ||
| 11.97~07.04 | 3000 | 5L-E | LN172H | C115J | A191J | SF2103FC158J | ||
| 08.97~03.06 | 3000 | 5L-E | LN172R | C101V | A191J | FC158HPM1008SF2103 | ||
| 08.97~03.06 | 3000 | 5L-E | LN192R | SF2103 |
TOYOTA » Hilux Surf
TOYOTA » Ipsum
TOYOTA » iQ
TOYOTA » Land Cruiser 100
| 01.98~09.07 | 4200 | 1H-Z | HZJ105 | C115J | A190J | SF2103FE153JFC158H | ||
| 01.98~08.07 | 4200 | 1HD-FT | HDJ101K | C115J | A1503 | FC158HSF2103 | JT437K | |
| 01.98~09.07 | 4200 | 1HD-FTE | HDJ100L | C115J | A1503A190J | FE153JSF2103SF2101FC158H | AC1506SET | JT437KJT408K |
| 08.00~08.07 | 4200 | 1HD-FTE | HDJ100R | C115J | A1503 | SF2103FC158H | JT437KJT410K | |
| 01.98~08.02 | 4200 | 1HD-T | HDJ100R | C115J | A190J | SF2101FE153JSF2103FC158H |
TOYOTA » Land Cruiser Prado 120
| 08.04~08.09 | 3000 | 1KD-FTV | KDJ120R | C111TC115J | A194J | FC158HSF2103 | AC102J | JT437K |
| 11.02~08.09 | 3000 | 1KD-FTV | KDJ120W | C115J | A194J | FC158HSF2103 | AC102J | JT437K |
TOYOTA » Land Cruiser Prado 150
| 08.13~ | 3000 | 1KD-FTV | KDJ150G | FC158HSF2103 | ||||
| 08.09~08.17 | 3000 | 1KD-FTV | KDJ150L | C111T | A194J | FC158HSF2103 | AC108J | JT437K |
| 08.09~08.17 | 3000 | 1KD-FTV | KDJ150R | C115J | A194J | SF2103FC158H | AC108J | JT437K |
TOYOTA » Lexus IS (Altezza)
TOYOTA » Lite/Townace
TOYOTA » Lite/Townace Truck
| 06.99~08.04 | 2200 | 3C-E | CM70 | C116J | A183J | SF2103FC184J | JT282KJT281K | |
| 06.99~08.04 | 2200 | 3C-E | CM70/CM75 | C116J | A183J | FC184J | ||
| 06.99~08.04 | 2200 | 3C-E | CM75 | C116J | A183J | FC184JSF2103 | JT281K | |
| 06.99~08.04 | 2200 | 3C-E | CM80 | C116J | A183J | SF2103FC184J | ||
| 06.99~08.04 | 2200 | 3C-E | CM85 | C116J | A183J | SF2103FC184J | JT281K |
TOYOTA » Liteace
TOYOTA » Liteace Noah
| 11.96~12.98 | 2000 | 2C | CR41V | C116J | A171J | FC184JSF2103 | JT281K | |
| 11.96~12.98 | 2000 | 2C | CR51V | C116J | A171J | SF2103FC184J | JT281K | |
| 12.98~07.04 | 2200 | 3C-E | CR42V | C116J | A171J | SF2103FC184J | JT282K | |
| 12.98~07.04 | 2200 | 3C-E | CR52V | C116J | A171J | FC184JSF2103 | JT282K | |
| 10.96~11.01 | 2200 | 3C-T | CR50G | C116J | A171J | SF2103FC184J | JT278K | |
| 10.96~11.01 | 2200 | 3C-TE | CR40G | C116J | A171J | SF2103FC184J | JT427K |
TOYOTA » Mark II
| 09.96~08.99 | 2400 | 2L-TE | LX100 | C115J | A180J | FC184JSF2102 | JT281K | |
| 10.92~09.96 | 2400 | 2L-TE | LX90 | C115J | A180J | SF2102FC158JFC184J | AC21001SET | JT281K |
TOYOTA » Megacruiser
| 01.96~10.01 | BXD20V | SF2103SF2101 | ||||||
| 01.96~10.01 | 4100 | 15B-FTE | BXD20V | C115J | A612J | SF2103SF2101FC158J | JT408K |
TOYOTA » Picnic
| 08.97~05.01 | 2200 | 3C-TE | CXM10L | C116J | A181J | SF2103FC184J | AC1502RSET | |
| 01.97~12.01 | 2200 | 3C-TE | CXM10R | SF2103 |
TOYOTA » Picnic Verso
| 05.01~01.06 | 2000 | 1CD-FTV | CLM20L | SF2103 | ||||
| 05.01~12.09 | 2000 | 3S-FE | CLM20L | SF2103 | ||||
| 01.01~07.05 | 2200 | CLM20L | SF2103 |
TOYOTA » Previa
| 05.01~01.06 | 2000 | 1CD-FTV | CLR30L | C116J | A1511 | FC184JSF2103 | AC102J | |
| 02.01~01.06 | 2000 | 1CD-FTV | CLR30R | SF2103 |
TOYOTA » Probox
TOYOTA » Qualis
TOYOTA » Quick Delivery
| 08.01~07.04 | 3000 | 5L | LY270 | C115J | A136J | SF2103FC158H | ||
| 08.01~07.04 | 3000 | 5L-E | LY228K | C115J | A136J | FC158HSF2103 | ||
| 07.08~ | 4000 | N04C-T | XKU280K | C608J | A147J | FC158HSF2103 |
TOYOTA » RAV 4
| 12.12~10.15 | 2000 | 1AD-FTV | ALA40L | OE116J | A1518 | SF2102FC184J | AC108CAC108J | |
| 01.01~11.05 | 2000 | 1CD-FTV | CLA20 | C116J | A1511A1507 | FC184J | AC101J | |
| 05.00~11.05 | 2000 | 1CD-FTV | CLA21L | C116J | A1511 | FC184J | AC101J | |
| 11.05~12.12 | 2200 | 2AD-FHV | ALA30L | OE116J | A1518 | SF2102FC184J | AC108J | |
| 11.05~12.12 | 2200 | 2AD-FHV | ALA30R | OE116J | A1518 | SF2102FC184J | AC108J | JT394K |
| 12.12~09.19 | 2200 | 2AD-FHV | ALA49L | OE116J | A1022 | FC184JSF2102 | AC108JAC108C | JT394K |
| 02.09~ | 2200 | 2AD-FHV | ZSA30 | A1518 | FC184J | AC108J | ||
| 08.09~12.12 | 2200 | 2AD-FTV | ALA35 | OE116J | A1518 | FC184J | AC108J | |
| 12.12~09.19 | 2200 | 2AD-FTV | ALA49L | OE116J | A1022 | SF2102FC184J | AC108CAC108J | JT394K |
TOYOTA » T.U.V.
| 01.97~12.04 | 2400 | LF60 | SF2103 | |||||
| 01.97~12.04 | 2400 | LF80 | SF2103 | |||||
| 01.99~12.04 | 2400 | 2L | LF80 | SF2103 | ||||
| 01.97~12.04 | 2400 | 2L | LF82 | C222VC222JC101V | SF2103FC158H | |||
| 01.97~12.04 | 3000 | 5L-E | LF81 | SF2103 | ||||
| 01.97~12.04 | 3000 | 5L-E | LF85 | SF2103 |
TOYOTA » Townace
TOYOTA » ToyoAce/Dyna Urbannsuporter
TOYOTA » Verso-S
| 11.10~04.15 | 1400 | 1ND-TV | NLP121 | OE118J | A1520 | FC184J | AC108J | |
| 04.09~ | 2000 | 1AD-FTV | ZGR2 | OE116J | A1517 | FC184J | AC108J | |
| 04.09~ | 2200 | 1AD-FTV | ZGR2 | OE116J | FC184J | AC108J | ||
| 04.09~ | 2200 | 2AD-FHV | ZGR2 | OE116J | A1517 | FC184J | AC108J |
