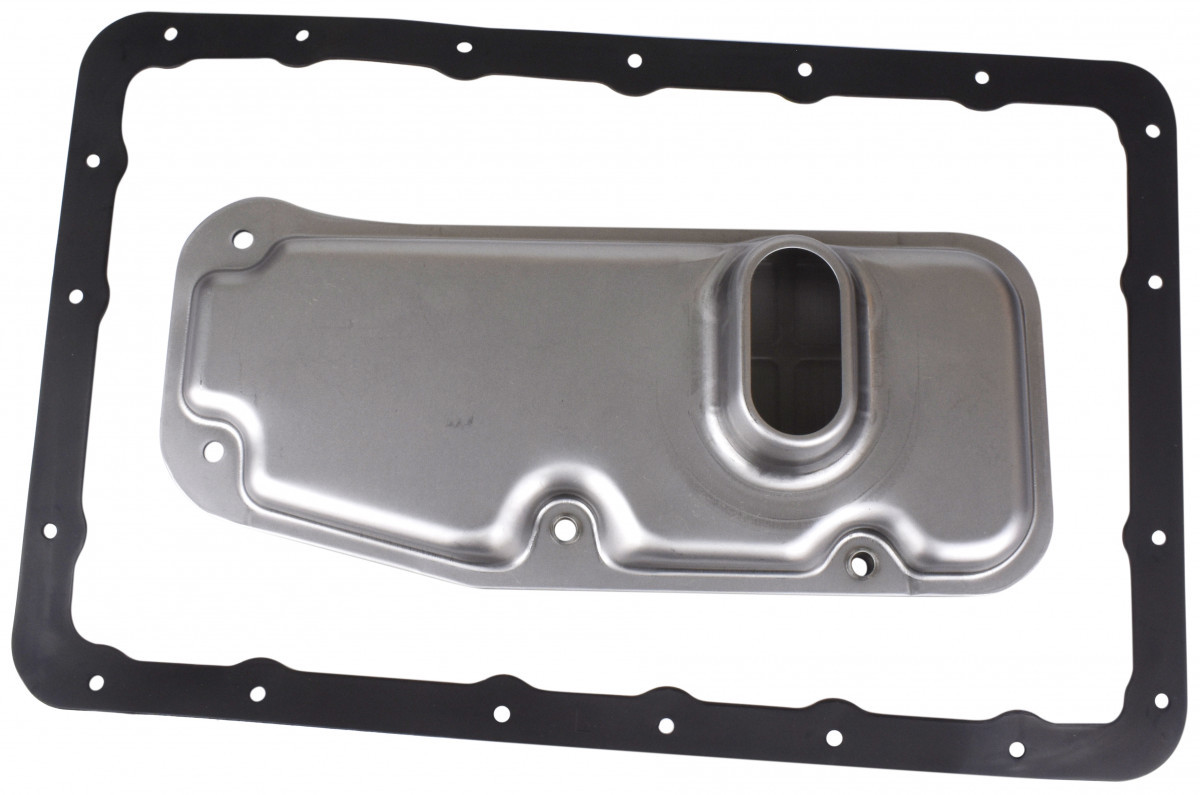

TRANSMISSION FILTER » JT435K

Feedback information
JT435K

Specification

Height (mm)
45
Size A
304
Size B
134
Transmission Numbers
A343E, A343F
Notes
Transmission Type：A343E, A343F Tube H-25mm

Cross reference

ISUZU
8-97207-143-0
ISUZU
8-98189-731-0
KIA
46306-H1070
TOYOTA
35330-60030
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Terracan

02.01~06.04 2900 J3 HP LHD C109J A9313 FS0044 AC9305 JT435K
06.04~01.08 2900 J3 HP LHD C109J A9313 FS0044 AC9415SET JT435K
02.01~06.04 3500 G6CU HM81 C304J A9313 FS9207PI1023 AC9415SET JT435K

ISUZU   »   Axiom

01.01~08.04 3500 6VE1 UP C307J A526J FS516JFS618J   JT435KJT232K

ISUZU   »   D-Max

10.16~ 2500 4JK1-TCX TFR86 RHD C0076 A0622 FE193J AC3507C JT435K
01.16~10.19 2500 4JK1-TCX TFS86 C0076 A0622 FE193J AC3507C JT435K
03.12~01.16 2500 4JK1-TCX TFS86 LA RHD C0076 A0622 FE193J AC3507C JT435K
03.12~ 2500 4JK1-TCY TFS86 EU RHD C0076 A9618 FE193J AC3507C JT435K
03.12~ 2500 4JK1-TCY TFS86 ML RHD C0076 A0622 FE193J   JT435K
01.13~12.16 3000 4JJ1-T TFS85JDR C0076 A9618 FE193J AC3507C JT435K
06.12~05.17 3000 4JJ1-TCS TFS85J LHD C0076 A0622 FE193J AC3507C JT435K
06.12~ 3000 4JJ1-TCX TFR85 C0076 A9618 FE193J   JT435K
01.16~ 3000 4JJ1-TCX TFS6WF C0076 A9618 FE193J   JT435K
01.17~ 3000 4JJ1-TCX TFS85JDL C0076 A9618 FE193J AC3507C JT435K

ISUZU   »   Mu, Wizard

05.98~08.02 3000 4JX1-T UES73FW C524J A2004 FC607J   JT435K

ISUZU   »   MU-X

03.17~11.20 2500 4JK1-TCX UCS86 RHD MLY C0076 A0622 FE193J   JT435K
10.18~11.20 3000 4JJ1-TCX UCS85 C0076 A9618 FE193J AC3507C JT435K

ISUZU   »   Pickup TFR

10.18~ 2500 4JK1-TCX TFS86 C0076 A0622 FE193J AC3507C JT541HKJT435K
01.13~01.14 3000 4JJ1 MIDDLE EAST C0076 A0622 FE193J AC3507C JT435K

ISUZU   »   Rodeo

09.97~08.04 3200 6VD1 UES7VF C307J A526J FS516J   JT435KJT232K

KIA   »   Sorento 02

02.02~04.06 2500 D4CB A1 JC C109J A2519 FC0014FC9303 AC9302 JT305KJT435K

LEXUS   »   LX470

01.98~08.07 4700 2UZ-FE UZJ100 C114T A194J FR1009 AC1506SET JT435K

TOYOTA   »   4 Runner

11.09~08.11 2700 2TR-FE TRN280L C111T A194J FR1009FR1012FS8002PI1021   JT435K
11.95~12.02 2700 3RZ-FE RZN185 C111T A171J FR1007PI1001FS6001U   JT434KJT435K
08.01~12.04 3000 1KZ-TE KZN205L C115J A194J FC158H AC102J JT435K
11.02~09.05 3000 1KZ-TE KZN215L C115J A194J FC158H AC102J JT435K

TOYOTA   »   Fortuner

01.05~04.16 2500 2KD-FTV KUN60L C111T A1513 FS2119PFE193J AC108J JT435K
01.05~04.16 2500 2KD-FTV KUN60R C111T A1513 FS2119PFE193J AC108J JT435K
01.05~04.12 2700 2TR-FE TGN51L C111T A1513 FS3213   JT435K
01.05~08.07 2700 2TR-FE TGN51R C111T A1513 FS3213   JT435K
01.06~11.16 2700 2TR-FE TGN61L C111T A1513 FS618JFS3213 AC108J JT435K
01.05~10.15 2700 2TR-FE TGN61R C111T A1513 FS6001U AC108CAC108J JT435K
01.06~01.12 3000 1KD-FTV KUN51L C111T A1513 FE193JFS2119P   JT435K
01.05~08.16 3000 1KD-FTV KUN51R C111T A1513 FE193JFS2119P   JT435K
09.05~12.15 3000 1KD-FTV KUN61 C111T A1513 FE193J AC108J JT435K

TOYOTA   »   Hilux

10.05~09.16 2500 2KD-FTV KUN15L C111T A1513 FS2118PFE193J AC108J JT435K
02.05~12.15 2500 2KD-FTV KUN25L C111T A1513 FS2118PFE193J AC108JAC108C JT435K
03.05~01.16 2500 2KD-FTV KUN25R C111T A1513 FE193JFS2118P AC108J JT435K
07.11~04.15 2700 2TR-FE TGN16L C111T A1513 PI1008 AC108J JT435K
08.04~12.08 2700 2TR-FE TGN26L C111T A1513 FS3213PI1008 AC108J JT435K
01.04~01.18 2700 2TR-FE TGN36L C111T A1513   AC108C JT435K
04.05~01.19 2700 2TR-FE TGN36L C111T A1513 FS3213 AC108J JT435K
01.04~01.18 2700 2TR-FE TGN36R C111T A1513 PI1008FS3213 AC108C JT435K
07.98~04.05 2700 3RZ-FE RZN169H C111T A1006 FR1007PI1001FS3204   JT435K
07.11~04.15 3000 1KD-FTV KUN26L C111T A1513 FS2118PFE193J AC108CAC108J JT435K
08.04~04.15 3000 1KD-FTV KUN26R C111T A1513 FE193JFS2118P AC108JAC108C JT435K
05.04~12.15 3000 1KD-FTV KUN36R C111T A1513 FE193J AC108J JT435KJT437K

TOYOTA   »   Hilux Surf

08.04~07.09 2700 2TR-FE TRN210W OE116J A194J FR1008PI1009FS9094   JT435K
08.04~08.09 2700 2TR-FE TRN215W OE116J A194J PI1009FS9094FR1008 AC102J JT435K
10.02~08.04 2700 3RZ-FE RZN210W C111T A194J PI1009FS9094 AC102J JT435K
11.02~08.04 2700 3RZ-FE RZN215W C111T A194J FR1008PI1009FS9094 AC102J JT435K
08.00~11.02 3000 1KD-FTV KDN185W C115J A190J FC158H   JT435K
11.02~08.05 3000 1KD-FTV KDN215W C115J A194J SF2103FC158H AC102J JT435K
11.95~11.02 3400 5VZ-FE VZN185W C111T A173J FR1007PI1001FS6042   JT435KJT433KJT434K
11.02~08.05 3400 5VZ-FE VZN210W C111T A194J FR1008PI1009FS9094 AC102J JT435K
11.02~08.05 3400 5VZ-FE VZN215W C111T A194J FR1008PI1009FS9094 AC102J JT435K

TOYOTA   »   Innova

01.05~03.16 2500 2KD-FTV KUN40L C111T A1513 FE193J AC108J JT435K
08.04~03.16 2500 2KD-FTV KUN40R C111T A1513 FE193J AC108J JT435K
07.11~10.15 2700 2TR-FE TGN41L C111T A1513 PI1008FS3213 AC108JAC108C JT435K

TOYOTA   »   Land Cruiser 100

01.98~01.04 4700 2UZ-FE UZJ100R C114T A1503A194J FS9120FR1009PI1005 AC1506SET JT437KJT435K

TOYOTA   »   Land Cruiser Prado

04.96~11.02 3000 1KD-FTV KDJ90L C115J A190J PM1014FC158H   JT435K
08.00~11.02 3000 1KD-FTV KDJ90W C115J A190J FC158H   JT435K
08.00~09.02 3000 1KD-FTV KDJ95L C115J A190J PM1014FC158H   JT435K
08.00~09.02 3000 1KD-FTV KDJ95R C115J A190J FC158H   JT435K
08.00~11.02 3000 1KD-FTV KDJ95W C115J A190J FC158JFC158H   JT435K
04.96~08.00 3000 1KZ-TE KZJ90W C115J A190J FR1014FC158JPM1014FC158H   JT435KJT433K
04.96~09.02 3000 1KZ-TE KZJ95L C111TC115J A190J FC158HPM1014FC158J   JT433KJT435KJT431K
04.96~10.02 3400 5VZ-FE VZJ90W C111T A173J FS6042FR1007PI1018PI1001   JT435K
04.96~10.03 3400 5VZ-FE VZJ95L C111T A173JA1006 PI1018FR1007PI1001FS6042   JT435KJT433K
04.96~10.02 3400 5VZ-FE VZJ95R C111T A173JA1006 FR1007PI1001FS6042   JT435K
04.96~11.02 3400 5VZ-FE VZJ95W C111T A173J FR1007PI1001FS6042   JT435KJT433K

TOYOTA   »   Land Cruiser Prado 120

09.02~08.09 2700 2TR-FE TRJ120 OE116J A194J FS9094 AC102J JT435K
08.04~08.09 2700 2TR-FE TRJ120L OE116J A194J FS9094 AC102J JT435K
08.04~08.09 2700 2TR-FE TRJ120R OE116J A194J FS9094 AC102J JT435K
09.02~08.09 2700 2TR-FE TRJ125 OE116J A194J PI1009FS9094FR1007 AC102J JT435K
08.04~08.09 2700 2TR-FE TRJ125L C111T A194J FR1007FS9094PI1009 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ120 C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.04 2700 3RZ-FE RZJ120L C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ120R C111T A194J FR1008PI1009FS9094 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ125 C111T A194J FS9094PI1009FR1007 AC102J JT435K
09.02~08.09 3000 1KD-FTV KDJ120L C115J A194J FC158H AC102J JT435KJT437K
09.02~08.09 3000 1KZ-TE KZJ120L C115J A194J FC158H AC102J JT435K
09.02~08.09 3000 1KZ-TE KZJ120R C115J A194J FC158H AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ120W C111T A194J PI1009FS9094FR1008 AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ121 C111T A194J FS9094FR1008PI1009 AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ125 C111T A194J FR1007FS9094   JT435K
09.02~08.09 4000 1GR-FE GRJ120L C114T A1011 FR1008FS8001PI1009FS9094 AC102J JT435KJT437K
09.02~08.09 4000 1GR-FE GRJ125L C114T A1011 FR1007 AC102J JT437KJT435K

TOYOTA   »   Land Cruiser Prado 150

08.09~ 2700 2TR-FE TRJ150L C111T A194J FR1012FS2125FS3213PI1021FR1009 AC108JAC108C JT435K
08.09~ 2700 2TR-FE TRJ150W OE116J A194J PI1021FS3213FR1009FR1012FS2125 AC108J JT435KJT541HK

TOYOTA   »   Sequoia

09.00~12.07 4700 2UZ-FE UCK45 C114T A194J FR1007PI1002   JT437KJT435K

TOYOTA   »   Tacoma (USA)

09.04~08.14 2700 2TR-FE TRN220L C111T A21032   AC1515 JT435K
09.04~08.15 2700 2TR-FE TRN225 C111T A21032   AC1515 JT435K
09.04~08.14 2700 2TR-FE TRN240 C111T A21032   AC1515 JT435K
09.04~ 2700 2TR-FE TRN245 C111T A21032   AC1515 JT541HKJT435K
09.04~09.19 2700 2TR-FE TRN265L C111T A21032   AC1515 JT435KJT541HK
01.94~01.04 2700 3RZ-FE RZN171 C111T A171J FS6001UFR1019PI1007   JT435KJT433KJT432K
08.98~09.04 2700 3RZ-FE RZN191 C111T A171J PI1007FS6001UFR1019   JT435KJT420KJT429K
02.98~09.04 2700 3RZ-FE RZN196 C111T A171J FR1019PI1007FS6001U   JT435KJT420KJT429K
01.95~09.04 3400 5VZ-FE VZN170 C111T A173J FR1019PI1007FS6042   JT432KJT435KJT433K
02.98~12.05 3400 5VZ-FE VZN195L C111T A173J FS6042FR1019PI1007   JT435K

TOYOTA   »   Tundra

02.99~08.04 3400 5VZ-FE VCK30 C111T A194J FS3205FR1007   JT435K
02.99~08.04 3400 5VZ-FE VCK40L C111T A194J FR1007FS3205   JT435K
02.99~12.06 4700 2UZ-FE UCK30L C114T A194J FS3205FR1007PI1002PI1009   JT435KJT437K
02.99~12.06 4700 2UZ-FE UCK40 C114T A194J PI1002FS3205FR1007   JT435K
08.02~12.06 4700 2UZ-FE UCK41L C114T A194J PI1009FS3205FR1007   JT437KJT435K
