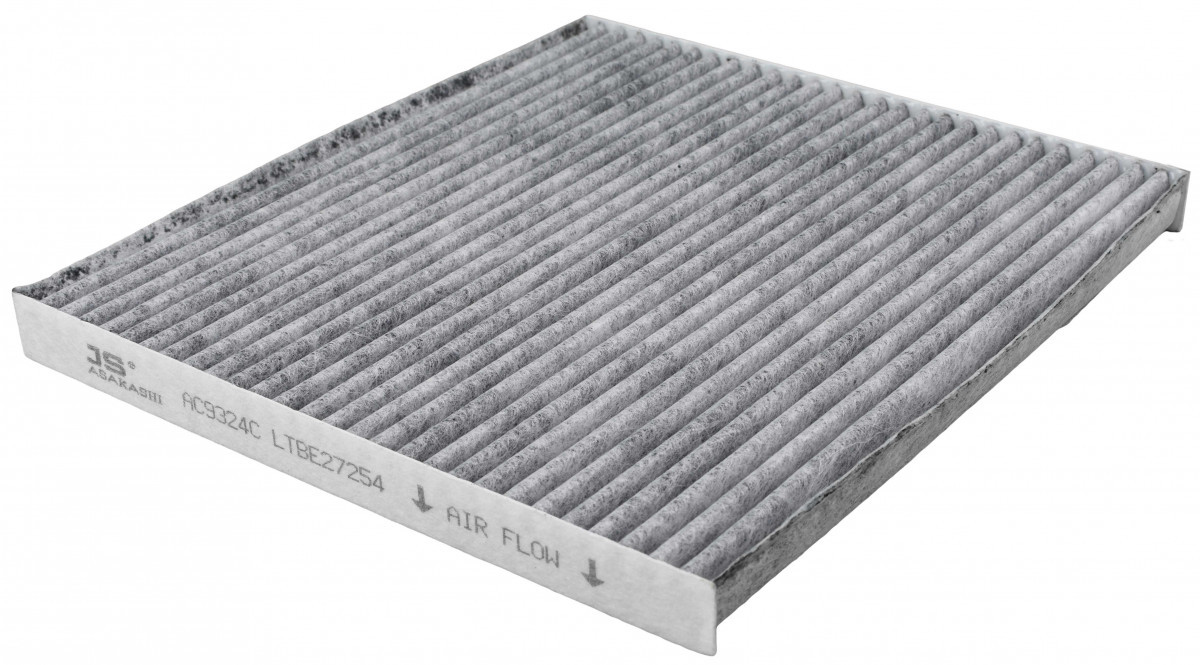

CABIN FILTER » AC9324C

Feedback information
AC9324C

Specification

Length
255
Width
225
Structure Material
Activated Carbon
Thickness
20

Variation

AC9324[JS] AC9324B[JS]

Cross reference

HYUNDAI
3SF79AQ000
HYUNDAI
97133-2W000
HYUNDAI
97133-3SAA0
HYUNDAI
F784EB9AA
KIA
97133-3SAA0
KIA
97133-A9000
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Azera

01.11~07.14 3000 G6DE FH41 OE9306 A9422 FS11001 AC9324 JT11001
09.11~06.16 3300 G6DH HG OE9306 A9422 FS9317 AC9324

HYUNDAI   »   Grand Santa FE

01.13~10.18 2200 D4HB WAGON - LONG 5DR 7P OE0076 A11003 FC9303 AC9324
10.16~10.18 3000 G6DG WAGON - LONG 5DR 7P OE9306 A0552 FS9320 AC9324
09.12~05.16 3300 G6DF PB813 LHD LONG 7P OE9306 A0552 FS11004 AC9324 JT11001
01.13~10.18 3300 G6DF PB813 LHD PR OE9306 A0552 FS11004 AC9324 JT11001
01.13~10.16 3300 G6DH WAGON - LONG 5DR 7P OE9306 A0552 FS9320 AC9324 JT11001

HYUNDAI   »   Grandeur HG

05.14~10.16 2200 D4HB PHG15 OE0076 A0641 FC9303 AC9324 JT11001
06.14~10.16 2400 G4KE HG C304J A9422 FS9317 AC9324
11.11~06.14 2400 G4KJ HG C304J A9422 FS11001 AC9324 JT493
11.11~06.14 3000 G6DG HG OE9306 A9422 FS9317 AC9324
06.14~10.16 3000 G6DG HG OE9306 A9422 FS9317 AC9324
11.11~06.14 3000 L6DB PHG11 OE9306 A9422 FE1035 AC9324 JT11001
11.11~06.14 3300 G6DH HG OE9306 A9422 FS9317 AC9324
06.14~10.16 3300 G6DH HG OE9306 A9422 FS9317 AC9324

HYUNDAI   »   i45

08.10~08.12 2000 G4KD EC41 C304J A9422 FS11001 AC9324 JT493
08.12~ 2000 G4NA EC41 SG RHD C304J A0508 FS11001 AC9324 JT493
08.10~08.12 2400 G4KE EC41 C304J A9422 FS11001 AC9324 JT493
01.10~04.14 2400 G4KJ EC41 ARL C304J A9422 FS11001 AC9324 JT493

HYUNDAI   »   Maxcruz

08.15~11.18 2200 D4HB DM OE0076 A11003 FC9303 AC9324 JT11001
02.13~08.15 2200 D4HB DM12 OE0076 A11003 FC9303 AC9324 JT11001

HYUNDAI   »   Santa FE

08.15~01.19 2000 D4HA DM15 OE0076 A11003 FC9303 AC9324 JT11001
08.15~01.19 2000 G4KH DM C304J A0552   AC9324 JT11001
08.15~01.19 2200 D4HB PDM15 RHD OE0076 A11003 FC9303 AC9324 JT11001
08.15~01.19 2400 G4KE PDM15 LHD C307J A0552 FS11004PI1023 AC9324 JT493
08.15~01.19 2400 G4KE PDM15 RHD C304J A0552 PI1023FS11004 AC9324 JT493
07.16~02.18 2400 G4KJ DMA16 US C304J A9428   AC9324 JT574K
11.15~11.18 3300 G6DH PB816 (USA) OE9306 A0552 FS9320 AC9324 JT11001

HYUNDAI   »   Santa FE 12

05.12~07.15 2000 D4HA PDM12 KDOM OE0076 A11003 FC9303 AC9324 JT11001
05.12~07.15 2000 G4KH DMA US C304J A0552   AC9324 JT11001
05.12~07.15 2200 D4HB PDM12 OE0076 A11003 FC9303 AC9324 JT11001
05.12~07.15 2400 G4KE DM LHD C307JC304J A0552 PI1023FS11004 AC9324 JT493
05.12~07.15 2400 G4KE DM RHD C304J A0552 PI1023FS11004 AC9324 JT493
05.12~07.15 2400 G4KJ PDM12 C307J A0552 FS11004 AC9324 JT493
05.12~07.15 3300 G6DF PDM12 OE9306 A0552 FS11004 AC9324 JT11001

HYUNDAI   »   Sonata

11.10~01.15 2400 G4KK PGFE11 GL C304J A9422 FS11001FR1012FR1009PI1021 AC9324 JT579

HYUNDAI   »   Sonata 10

09.09~07.12 2000 G4KD PGF10 KDOM C304J A9422 FR1009FS11001PI1021FR1012 AC9324 JT493
09.09~04.14 2000 G4KD YF C304JC307J A9422 FS11001 AC9324 JT493
09.09~06.14 2000 G4KH PGFA10 US C304J A9422 FS11004FS9320 AC9324 JT11001
09.09~04.14 2000 G4NA GF C304J A0508 FR1009FR1012PI1021FS11001 AC9324 JT493
07.12~01.15 2000 G4ND PGF10 LHD C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
07.12~04.14 2000 G4NE YF C304J A9422 PI1021FR1009FS11001FR1012 AC9324 JT579
09.09~04.14 2000 L4KA GF C304J A9422 FE0092 AC9324 JT472K
09.09~04.14 2000 L4NA GF C304J A0508 FE0092 AC9324 JT493
08.10~08.14 2400 G4KE PGF10 LHD EU C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
08.10~10.12 2400 G4KE PGF10 LHD GEN C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
09.09~07.12 2400 G4KJ PGFA10 US C304J A9422 FS9320FS11004 AC9324 JT493
09.09~03.14 2400 G4KJ YF C307J A9422 FS9320 AC9324 JT493JT579
11.10~07.12 2400 G4KK PGFE11 US C304J A9422 FR1009FR1012PI1021FS11001 AC9324 JT579

KIA   »   Cadenza

01.09~01.16 2400 G4KJ PJG08 C304J A9422   AC9324
01.09~03.11 2700 G6EA PJG08 C304J A9422   AC9324
01.09~01.16 3500 G6DC PJG08 OE9306 A9422 FS11001 AC9324 JT11001

KIA   »   Carnival / Sedona

04.14~01.21 2200 D4HB WAGON LONG - 11P OE0076 A9429 FC9303 AC9324 JT11001
04.14~01.21 2200 D4HB WAGON LONG - 7P OE0076 A9429 FC9303 AC9324 JT11001
04.14~03.18 2200 D4HB WAGON LONG - 8P RHD OE0076 A9429 FC9303 AC9324 JT11001
03.18~08.20 2200 D4HB WAGON LONG - 8P RHD OE0076 A9429 FC9303 AC9324 JT631K
04.14~03.18 2200 D4HB WAGON LONG - 9P OE0076 A9429 FC9303 AC9324 JT11001
04.14~01.21 3300 G6DF WAGON LONG - 11P RHD OE9306 A9428 FS9312 AC9324 JT11001
09.14~03.18 3300 G6DF WAGON LONG - 8P OE9306 A9428 FS9312 AC9324 JT11001
04.14~01.21 3300 G6DH WAGON LONG - 7P OE9306 A9428 FS9312 AC9324 JT11001
04.14~03.18 3300 G6DH WAGON LONG - 8P US OE9306 A9428 FS9318 AC9324 JT11001

KIA   »   Carnival / Sedona 18

02.18~07.20 2200 D4HB WAGON LONG - 9P OE0076 A9429 FC9303 AC9324 JT631K
02.18~07.20 3300 G6DF WAGON LONG - 8P OE9306 A9428 FS9312 AC9324 JT11001
02.18~07.20 3300 G6DM WAGON LONG - 8P OE0136 A9428 FS9318 AC9324 JT631K

KIA   »   Cerato

10.08~03.13 2000 G4KD FH22 SDN RHD C304J A9320 FS9308 AC9320SETAC9324 JT493

KIA   »   K5

05.10~06.13 2000 G4KD PTF11 C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
06.13~07.15 2000 G4KH PTF14 C304J A9422   AC9324 JT11001
05.10~06.13 2000 G4NA PTF11 C304J A0508 FS11001FR1009FR1012PI1021 AC9324 JT493
05.10~06.13 2000 L4KA PTF11 C304J A9422 FE0092 AC9324 JT472K
06.13~07.15 2000 L4NA PTF14 C304J A0508 FE1035 AC9324 JT493
01.10~ 2400 G4KE TF C304J A9422 FS11001 AC9324
05.10~06.13 2400 G4KJ PTF11 C304J A9422 FS11001 AC9324 JT493

KIA   »   K7

01.09~01.16 2400 G4KJ VG C304J A9422   AC9324
01.09~03.11 2700 G6EA VG C304J A9422   AC9324
01.13~12.15 3000 L6DB JG13 DOM OE9306 A9422   AC9324 JT11001
01.09~01.16 3500 G6DC PJG08 OE9306 A9422 FS11001 AC9324 JT11001

KIA   »   Optima

03.10~03.16 1700 D4FD TF OE0073 A9422 FC9303 AC9324
03.12~ 2000 G4KD GN C304J A0508 FS13003 AC9324
03.10~03.13 2000 G4KD PTF11 LHD C304J A9422 FS11001FR1009FR1012PI1021 AC9324 JT493
01.10~01.13 2000 G4KD PTF11 RHD C304J A9422 FR1012FR1009FS11001PI1021 AC9324 JT493
08.13~02.16 2000 G4NA GM41 C304J A0508 PI1021FS11001FR1009FR1012 AC9324 JT493
08.13~02.16 2000 G4NA GN41 C304J A0508 FS11001FR1009FR1012PI1021 AC9324 JT493
03.10~09.13 2000 G4NA PTF11 LHD C304J A0508 FR1012PI1021FS11001FR1009 AC9324 JT493
08.13~02.16 2000 G4ND GN C304J A0508 FR1009FR1012FS11001PI1021 AC9324 JT493
02.12~08.13 2000 G4ND PTF11 RHD C304J A0508 FR1012FS11001FR1009PI1021 AC9324 JT493
03.10~03.14 2000 G4NE PTFE11 C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT579
03.14~03.16 2000 G4NE PTFE14 C304J A9422 FR1009FR1012PI1021FS11001 AC9324
03.10~09.13 2400 G4KE PTF11 LHD C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
03.10~09.13 2400 G4KE PTF11 RHD C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 LHD C304J A9422 FR1012PI1021FS11001FR1009 AC9324 JT493
04.13~03.16 2400 G4KE PTF14 RHD C304J A9422 FR1009FS11001FR1012PI1021 AC9324 JT493

KIA   »   Optima (USA)

03.10~09.13 2400 G4KJ PTF11 C304J A9422   AC9324 JT493
12.11~09.13 2400 G4KJ TFA12 C304J A9422 FS9320 AC9324 JT493
04.13~02.16 2400 G4KJ TFA14 C304J A9422 FS9320 AC9324 JT493
04.13~02.16 2400 G4KK PTFE14 C304J A9422 PI1021FS11001FR1009FR1012 AC9324 JT579
03.10~09.13 2400 G4KK TF C304J A9422 PI1021FR1009FS11001FR1012 AC9324 JT579
