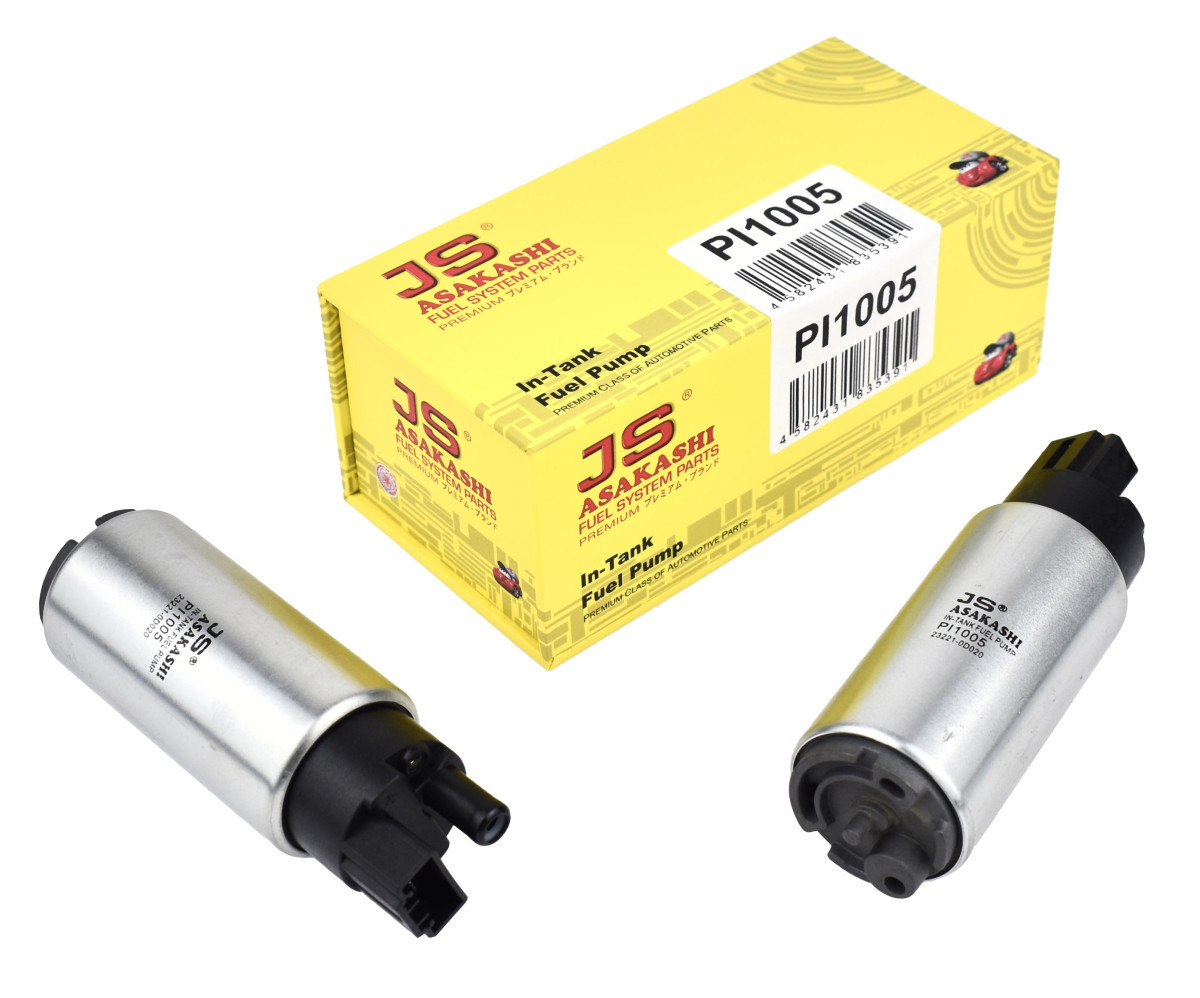

IN-TANK FUEL PUMP » PI1005

Feedback information
PI1005

Specification

Length 1/ Length 2
116
Diameter 1[mm]
38
Diameter 2[mm]
32.5
Pressure [Bar]
3
Flow [L/h]
110
Inner Diameter[mm]
9,2

Cross reference

HONDA
17040-S0A-931
HONDA
17040-S10-A00
HONDA
17040-S84-A01
HONDA
17040-S84-A02
HONDA
17040-SEA-E00
HONDA
17040-SEA-P00
HONDA
17040-SR1-A30
HONDA
17040-SR2-A50
HONDA
17040-SS8-A02
HONDA
17040-SV1-A30
HONDA
17040-SV4-A30
HONDA
17040-SW5-A30
HONDA
17040-SX0-A32
ISUZU
5-86202-235-0
ISUZU
8-94479-418-2
ISUZU
8-97041-876-1
ISUZU
8-97041-876-3
ISUZU
8-97118-512-0
MAZDA
B3C7-13-350
MAZDA
B3E7-13-350
MAZDA
B3E7-13-350A
MAZDA
B3E7-13-35ZB
MAZDA
B61P-13-350B
MAZDA
B6BF-13-35Z
MAZDA
B6BG-13-35Z
MAZDA
B6DA-13-350
MAZDA
BPE8-13-350
MAZDA
JE45-13-35ZB
MAZDA
JE47-13-35ZA
MITSUBISHI
MB658436
MITSUBISHI
MB698623
MITSUBISHI
MB831333
MITSUBISHI
MB831560
MITSUBISHI
MB831691
MITSUBISHI
MB893666
MITSUBISHI
MB912304
MITSUBISHI
MR134804
MITSUBISHI
MR134806
MITSUBISHI
MR134868
MITSUBISHI
MR135289
MITSUBISHI
MR208665
MITSUBISHI
MR241083
MITSUBISHI
MR241351
MITSUBISHI
MR325884
SUBARU
42021AA330
SUBARU
42021AA350
SUBARU
42021AC012
TOYOTA
23220-02040
TOYOTA
23220-03020
TOYOTA
23220-74020
TOYOTA
23220-74021
TOYOTA
23221-03010
TOYOTA
23221-0D020
TOYOTA
23221-11050
TOYOTA
23221-15030
TOYOTA
23221-16490
TOYOTA
23221-21030
TOYOTA
23221-21060
TOYOTA
23221-28020
TOYOTA
23221-28030
TOYOTA
23221-28040
TOYOTA
23221-28280
TOYOTA
23221-28290
TOYOTA
23221-28310
TOYOTA
23221-46060
TOYOTA
23221-66040
TOYOTA
23221-74110
TOYOTA
23221-74120
TOYOTA
23221-74130
TOYOTA
232210D100
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

ACURA   »   CL

03.96~01.00 3000 J30A1 YA2 CND C307J A860J PI1005FS7200

HONDA   »   Accord

09.97~10.02 1800 F18B CF3 C809JC307J A858J FR1010PI1005FS7301   JT450
08.97~11.02 2000 F20B CF4 C307J A858J PI1005FS7301FR1010 AC8505SET JT450
01.98~01.03 2000 F20B5 CH3 C307J A867J FS7003PI1005FS7301FR1010 AC8505SET JT450
10.02~10.05 2000 K20A6 CL7 RHD C809J A879J PI1005FS7300FR1010 AC881J JT495JT455
10.02~12.08 2000 K20A7 CM4 GR C809J A879J FR1010FS7300PI1005 AC881J JT455
10.02~10.05 2000 K20Z CL7 LHD C809J A879J FS7300PI1005FR1010 AC881J JT455JT495
10.05~12.08 2000 K20Z CL7 LHD C809J A879J FS7300PI1005FR1010 AC881J JT455JT495
10.05~12.08 2000 K20Z CL7 RHD C809J A879J FS7300PI1005FR1010 AC881J
09.97~06.03 2300 F23A CG5 RHD C307J A867J PI1005FR1010FS7301FS7003   JT450
12.99~12.02 2300 F23A1 CG6 C307J A867J PI1005FS7301FR1010 AC8505SET JT450
10.02~10.05 2400 K24A3 CL9 LHD C805J A879J PI1005FR1010FS7300 AC881J JT455
10.05~12.08 2400 K24A3 CL9 LHD C809J A879J FR1010PI1005FS7300 AC881J JT455JT495
10.02~12.08 2400 K24A3 CL9 RHD C809J A879J FR1010FS7300PI1005 AC881J JT495JT455
09.00~01.02 3000 J30A CG1 US C307J A877J FS7301PI1005FR1010 AC8505SET JT449
09.97~06.03 3000 J30A1 CG1 C307J A877J FR1010PI1005FS7301FS7003   JT449

HONDA   »   Accord Coupe

01.98~06.03 3000 J30A CG1 US C307J A877J FS7003FR1010PI1005   JT449JT452

HONDA   »   CR-V

10.95~04.99 2000 B20B RD1 LHD C805JC307J A852JA852PU PI1005FS7200 AC801J JT453

HONDA   »   Inspire

10.98~06.03 2500 J25A UA4 C307J A877J FS7301FR1010PI1005   JT449JT441JT382
10.98~06.03 3200 J32A UA5 C307J A877J FS7301FR1010PI1005 AC8505SET JT449

HONDA   »   Torneo

08.97~10.02 1800 F18B CF3 C307J A858J FS7301FR1010PI1005 AC803SET JT450

ISUZU   »   VehiCross

04.97~12.00 3200 6VD1 UGS25DW C307J A523J PI1005FS516J   JT232K

LEXUS   »   LS400

10.94~08.00 4000 1UZ-FE UCF20 C114T A168J FS3210UFR1023PI1005PI1004 AC103J JT428K

MITSUBISHI   »   Galant

09.96~10.04 2000 4G63 EA2W C415JC304JC316JC307J A3012 FS6002UPI1005FS3202 AC3508 JT206K
01.92~05.96 2400 4G64 E56A C415J A3001 PI1005
09.96~10.04 2500 6A13 EA5A C304J A3012 PI1005 AC3508 JT206K

MITSUBISHI   »   Lancer

08.95~08.00 1300 4G13 CK1A JPN C415J A3011 FS3209UPI1005   HC0013JT206K

MITSUBISHI   »   Legnum

06.96~08.98 2000 6A12 EA4W C415J A3012 FS3202PI1005   HC0013JT206K

MITSUBISHI   »   Pajero

01.91~04.97 3000 6G72 V43W JPN C307J A346J FS6001UFS6002UPI1005   JT278K

MITSUBISHI   »   Pajero / Montero

12.90~04.04 3000 6G72 V43W LHD C307J A346J FS6002UFS6001UPI1005   JT278K

PONTIAC (GM)   »   VIBE I

01.02~07.06 1800 LNK(2ZZGE) SN26 C110J A1003 FR1013FS2117PPI1007FS6300PI1005 AC1515
01.02~01.08 1800 LV6(1ZZFE) SL26 C110J A1003 PI1005FR1013FS2117PPI1007FS6300 AC1515 JT393K

SUBARU   »   Legacy

06.91~10.93 2000 EJ20 BF5 TR WGN PHLP C902J A243J PI1005FS317J   JT301K

TOYOTA   »   Allion

12.01~06.07 1800 1ZZ-FE ZZT245 C110J A1003 FS6302FR1009PI1005 AC101J JT531KJT425K
04.10~03.21 1800 2ZR-FAE ZRT265 OE117J A1013 FS6302PI1005FR1019 AC108J JT527JT494K
05.07~10.10 1800 2ZR-FE ZRT260 OE117J A1013 PI1005FR1019FS6302 AC108J JT494KJT527
05.07~04.10 1800 2ZR-FE ZRT265 OE117J A1013 FR1019FS6302PI1005 AC108J JT527JT494K
12.01~05.07 2000 1AZ-FSE AZT240 C113J A1003 FS6302PI1005FR1019 AC101J JT485KJT531KJT527
12.07~12.12 2000 3ZR-FAE ZRT261 OE117J A1013 FS6302PI1005FR1019 AC108J JT485KJT527

TOYOTA   »   Alphard

05.02~05.08 2400 2AZ-FE ANH10W C113J A1001 FR1007FS6300PI1005 AC102J JT426K
05.02~05.08 2400 2AZ-FE ANH15W C113J A1001 FR1007FS6300PI1005 AC102J JT426K

TOYOTA   »   Altezza

10.98~07.05 2000 1G-FE GXE10 C111T A195J FS6304FS6300PI1005FR1009 AC104J JT535K
06.01~07.05 2000 1G-FE GXE10W C111T A195J FS6300PI1005FR1009 AC101J JT469
01.02~07.05 2000 1G-FE GXE15W C111T A195J PI1005FR1009FS6300 AC104J JT535K
10.98~07.05 2000 3S-GE SXE10 C110J A192J FS6304FS6300PI1005FR1009 AC104J JT428K

TOYOTA   »   Avensis

01.97~12.03 1600 3ZZ-FE ZZT220L C110J A1505 PI1005FR1009FS8007 AC1502RSET
01.97~07.03 1600 4A-FE AT220L C110J A1505 FS3204FS6061FR1009PI1005 AC1502RSET
10.97~12.03 1800 1ZZ-FE ZZT221L C110J A1505 FS8007PI1005 AC1502SET JT391K
10.97~05.03 1800 7A-FE AT221L C110J A1505 FS3204PI1005FS6061 AC1502RSET JT391K
10.97~07.03 1800 7A-FE AT221R C110J A1505 FS6002UPI1005 AC1502RSET
07.00~01.03 2000 1AZ-FSE AZT220L- C113J A1505 PI1005FS8007FR1009   JT426K
09.03~11.08 2000 1AZ-FSE AZT255 C113J A1003 PI1005FR1019FS6302 AC1503 JT393K
10.03~01.08 2000 1AZ-FSE AZT255W C113J A1003 FR1019PI1005FS6302 AC1503 JT393K
10.97~07.03 2000 3S-FE ST220L C110J A1505 FR1009PI1005FS6061FS3204 AC1502SET JT387K
10.97~07.00 2000 3S-FE ST220R C110J A1505 PI1005 AC1502RSET JT387K

TOYOTA   »   Avensis Verso

05.01~12.09 2000 1AZ-FE ACM20L C113J A1003 PI1005FS6302FR1009 AC102J JT426K

TOYOTA   »   Caldina

11.92~11.02 1500 5E-FE ET196V C110J A162JA161J PI1005FS6002U AC1502RSET JT390K
01.96~08.97 1800 7A-FE AT191G C110J A161J FR1007PI1005FS6002U   JT391K
08.97~09.02 1800 7A-FE AT211G C110J A161J PI1005FS6002UFR1007 AC1502RSET JT391K
09.02~06.07 2000 1AZ-FSE AZT241W C113J A1003 FR1019PI1005FS6302 AC101J JT393K
09.02~06.07 2000 1AZ-FSE AZT246 C113J A1003 FR1019PI1005FS6302 AC101J JT393K
11.92~08.97 2000 3S-FE ST191G C110J A161J PI1005FR1020FS6002U AC1502RSET JT387K
11.92~08.97 2000 3S-FE ST195G C110J A161J FS6002UPI1005FR1020   JT386K
08.99~06.02 2000 3S-FE ST198V C110J A161J FS6002UPI1005   JT386K
02.97~09.02 2000 3S-FE ST210G C110J A161J FR1009PI1005FS6002U AC1502RSET JT387K
11.92~08.97 2000 3S-GE ST195G C110J A161J PI1005FR1009FS6002U AC1502RSET JT386K
05.00~09.02 2000 3S-GE ST210G C110J A174J FR1009PI1005FS6002U AC1502RSET JT387K
08.97~09.02 2000 3S-GE ST215G C110J A174J FS6002UFR1009PI1005 AC1502RSET JT387K
08.97~09.02 2000 3S-GTE ST215W C113J A174J FR1009PI1005FS6002U AC1502RSET JT423K

TOYOTA   »   Camry

07.90~06.94 1800 4S-FE SV30 C110J A161J PI1005FS6002UFR1009 AC1501 JT390K
06.94~07.98 1800 4S-FE SV40 C110J A161J PI1005FS6002UFR1009 AC106J JT389K
07.90~06.94 2000 3S-#E SV33 C110J A161J FR1009PI1005FS6002U   JT390K
07.90~06.94 2000 3S-FE SV32 C110J A161J FS6002UFR1009PI1005   JT390K
07.90~06.94 2000 3S-FE SV35 C110J A161J FR1009PI1005FS6002U   JT386K
06.91~08.98 2200 5S-FE SXV10L C110J A174J FS6002UPI1005   JT390K
01.01~01.06 2400 2AZ-FE ACV35 C113J A199J FS6300FR1007PI1005 AC102J JT426K
09.91~08.96 3000 3VZ-FE VCV10L C110J A174J FS6002UPI1005FS6061 AC1507CSET JT389K

TOYOTA   »   Camry Gracia

12.96~09.01 2200 5S-FE SXV20 C110J A174J FR1009FS6002UPI1005   JT390K
12.96~09.01 2200 5S-FE SXV20W C110J A174J FS6002UPI1005FR1009 AC1507CSET JT390K
12.96~09.01 2500 2MZ-FE MCV21 C111T A174J FS6002UFS3201PI1005FR1009 AC1507CSET JT389K

TOYOTA   »   Camry Prominent

07.90~06.92 2500 4VZ-FE VZV32 C111T A161J FS6002UFR1009PI1005 AC1501 JT386K
05.91~06.94 2500 4VZ-FE VZV33 C111T A161J FS6002UFR1009PI1005   JT386K

TOYOTA   »   Carina

08.92~08.96 1500 5A-FE AT192 C110J A161J FS6002UPI1005PI1001FR1020FR1007   JT391K
08.96~08.01 1500 5A-FE AT212 C110J A161J PI1005FR1007FS6002U AC1502RSET JT387K
08.92~08.96 1600 4A-FE AT190 C110J A161J FR1007FS6002UPI1005 AC1502RSET JT391K
08.96~12.01 1600 4A-GE AT210 C113J A161J FR1009FS6002UPI1005 AC1502RSET JT391K
08.92~08.94 1800 4S-FE ST190 C110J A161J FR1007FS6002UPI1001PI1005 AC1502RSETAC1502SET JT387K
08.94~06.97 1800 7A-FE AT191 C110J A161J PI1005FR1007FS6002U AC1502RSET JT391K
08.96~12.01 1800 7A-FE AT211 C110J A161J FR1007FS6002UPI1005   JT391K
08.96~12.01 2000 3S-FE ST215 C110J A161J PI1005FR1009FS6002U AC1502RSET JT386K

TOYOTA   »   Carina E

01.92~12.97 1600 4A-FE AT190L C110J A1505 FS6002UFR1009PI1005PI1001FR1007 AC1502SET
01.92~12.97 1800 7A-FE AT191L C110J A161J FS6002UPI1005PI1001FR1007 AC1502SET JT391K
02.92~10.97 1800 7A-FE AT191R C110J A1505 PI1005FR1007PI1001FS6002U AC1502SET JT391K
01.92~12.97 2000 3S-#E ST191L C110J A161JA1505 FR1007FR1009FS6002UPI1005PI1001 AC1502SET JT387K
01.92~06.96 2000 3S-GE ST191L C110J A161J PI1005FR1007FS6002UFR1009PI1001 AC1502SET

TOYOTA   »   Carina ED

09.93~04.98 1800 4S-FE ST200 C110J A174J FR1009FS3061PI1005   JT390K
09.93~10.94 1800 4S-FE ST201 C110J A174J PI1005FS3061
09.93~04.98 2000 3S-FE ST202 C110J A174J FS3061PI1005FR1009   JT390K
09.93~04.98 2000 3S-FE ST203 C110J A174J FR1009FS3061PI1005   JT390K
09.93~04.98 2000 3S-GE ST202 C110J A174J FS3061PI1005FR1009   JT390K

TOYOTA   »   Celica

01.99~01.06 1800 1ZZ-FE ZZT230L C110J A162J FS6301PI1005FR1013 AC102J JT425K
06.99~04.06 1800 2ZZ-GE ZZT231 C110J A162J FR1013FS6301PI1005 AC102J JT426K
12.99~04.06 1800 2ZZ-GE ZZT231L C113J A162J PI1005FR1013FS6301 AC102J JT426K
06.99~04.06 1800 2ZZ-GE ZZT231R C110J A162J PI1005FR1013FS6301 AC102J JT426K
09.93~08.99 1800 7A-FE AT200L C110J A174J FS6002UFS6061FR1009PI1005   JT391K
09.93~12.99 2000 3S-FE ST203 C110J A174J FR1009PI1005FS3061   JT390K
09.93~12.99 2000 3S-GE ST202 C110J A174J FS3061FR1009PI1005   JT390KJT387K
08.94~05.99 2000 3S-GE ST202C C110J A174J PI1005FS6002UFR1009   JT390KJT387K
09.93~08.99 2000 3S-GE ST202L C110J A174J FR1009PI1005FS3061
09.93~08.99 2200 5S-FE ST204L   A174J PI1005FS3061FR1009   JT390K
01.94~12.99 2200 5S-FE ST204R C110J A174J FS3061FR1009PI1005   JT390K

TOYOTA   »   Corolla

06.91~05.95 1300 4E-FE EE101 C110J A176J FR1009PI1005FS6202U   JT390K
06.91~04.97 1300 4E-FE EE101L C110J A176J FS6202UFR1009PI1005   JT390K
06.91~12.97 1300 4E-FE EE101R C110J A176JA1509 PI1005FS6202U
05.91~06.02 1500 5E-FE EE103V C110J A176J PI1007FR1009PI1005FS6202U   JT390K
11.91~11.01 1600 4A-FE AE101 C110J A177J FS6202UFR1009PI1005   JT387K
05.92~05.99 1600 4A-FE AE101L C110J A177J PI1005FR1009FS6202U   JT387K
09.91~08.00 1600 4A-FE AE104 C110J A177J PI1005FS6202UFR1021 AC1501 JT387K
05.95~08.00 1600 4A-FE AE104G C110J A177J FR1021FS6202UPI1005   JT387K
01.95~12.04 1600 4A-FE AE111 C110J A177J PI1005FS6202U AC1501 JT391K
05.95~08.00 1600 4A-FE AE114 C110J A177J FS6202UFR1021PI1005   JT387K
06.91~05.95 1600 4A-GE AE101 C113J A177J FR1009PI1005FS6202U   JT387KJT391K
05.97~08.00 1600 4A-GE AE101G C113J A177J PI1005FS6202UFR1009   JT391K
04.97~04.98 1600 4A-GE AE111 C113J A177J PI1005FS6202U
05.02~07.08 1800 1ZZ-FE ZZE122L C110J A1003 FS6300FR1013PI1005 AC101J JT393K
08.00~09.08 1800 1ZZ-FE ZZE122R C110J A1003 PI1007PI1005FR1013FS6300FR1009FS6302 AC101J JT425K
01.02~01.08 1800 1ZZ-FE ZZE130L C110J A1003 PI1007FR1013PI1005FS6300FS2117P AC1503 JT393K
11.01~02.07 1800 2ZZ-GE ZZE123L C113J A1003 FS8018PI1005 AC101J
06.92~01.00 1800 7A-FE AE102L C110J A177J FS6202UFR1009PI1005   JT391K
02.94~10.97 1800 7A-FE AE102R C110J A177J FR1009PI1005FS6202U   JT391K
01.97~12.02 1800 7A-FE AE112L     PI1005
01.97~12.04 1800 7A-FE AE112R C110J A177J FS6202UPI1005FR1009   JT387K
05.97~07.01 1800 7A-FE AE115L C110J A177J PI1005FS6202UFR1021

TOYOTA   »   Corolla Altis

03.01~08.08 1600 3ZZ-FE ZZE121R C110J A1003 FS6300PI1005FR1013 AC101J JT393K
03.01~08.08 1800 1ZZ-FE ZZE122L C110J A1003 PI1005FS6300FR1013 AC101J JT393KJT425K

TOYOTA   »   Corolla Fielder

08.00~10.06 1500 1NZ-FE NZE124G C110J A1003 FS6300PI1005FR1013 AC101J JT425K
08.00~09.06 1800 1ZZ-FE ZZE122G C110J A1003 FS6300PI1005FR1013 AC101J JT425K
08.00~09.06 1800 1ZZ-FE ZZE124 C110J A1003 FS6300FR1013PI1005 AC101J JT425K
08.00~10.06 1800 1ZZ-FE ZZE124G C110J A1003 FS6300PI1005FR1013 AC101J JT425K
08.00~10.06 1800 2ZZ-GE ZZE123G C113J A1003 FR1013FS6300PI1005 AC101J JT426K

TOYOTA   »   Corolla II

09.94~07.99 1300 4E-FE EL51 C110J A179J PI1005FS6002UFR1020   JT390K
09.94~10.99 1500 5E-FE EL53 C110J A172J FR1009FS6002UPI1005 AC21002SET JT387K

TOYOTA   »   Corolla Levin

06.91~08.98 1500 5A-FE AE100 C110J A177J PI1005FR1021PI1007FS6202U AC101JC JT387K
06.91~08.98 1600 4A-FE AE101 C113J A177J PI1007FR1021FS6202UPI1005 AC1501 JT391KJT387K
05.95~08.00 1600 4A-FE AE111 C110J A177J FR1021FS6202UPI1007PI1005   JT391K
06.91~08.98 1600 4A-GE AE101 C113J A177J FR1021FS6202UPI1005   JT387KJT391K
05.95~04.98 1600 4A-GE AE111 C113J A177J FR1021FS6202UPI1005   JT391K

TOYOTA   »   Corolla Runx/Allex

01.01~09.06 1500 1NZ-FE NZE124 C110J A1003 PI1005FR1013FS6300 AC101J JT425K
09.02~09.06 1800 1ZZ-FE ZZE122 C110J A1003 FS6300PI1005FR1013 AC101J JT425K
01.01~09.06 1800 1ZZ-FE ZZE124 C110J A1003 FS6300PI1005FR1013 AC101J JT425K
01.01~09.06 1800 2ZZ-GE ZZE123 C113J A1003 PI1005FR1013FS6300 AC101J JT426K

TOYOTA   »   Corolla Spacio

05.01~06.07 1800 1ZZ-FE ZZE122N C110J A1003 FR1013FS6300PI1005 AC101J JT425K
05.01~06.07 1800 1ZZ-FE ZZE124N C110J A1003 FR1013FS6300PI1005   JT425K
01.97~05.01 1800 7A-FE AE115N C110J A177J FS6202UPI1005FR1021   JT387K

TOYOTA   »   Corolla Verso

10.01~01.04 1800 1ZZ-FE ZZE122L C110J A1003 PI1005FS6300FR1013   JT425K

TOYOTA   »   Corona

02.92~07.98 1600 4A-FE AT190 C110J A161J PI1001PI1005FS6002UFR1009FR1007 AC1502RSET JT387KJT391K
03.92~11.97 1600 4A-FE AT190R C110J A161J FR1007PI1001FR1020PI1005FS6002UFR1009 AC1502RSET JT391KJT387K
01.96~12.01 1600 4A-FE AT210R C110J A161J FR1007PI1005FS6002U AC1502RSET JT391K
01.92~01.96 1800 4S-FE ST190 C110J A161J FR1020FR1007FS6002UPI1001PI1005FR1009   JT387K
01.92~12.98 2000 3S-FE ST191 C110J A161J FR1007PI1005FS6002U AC1502RSET JT387K

TOYOTA   »   Corona Exiv

09.93~04.98 1800 4S-FE ST200 C110J A174J FR1009PI1005FS3061   JT390K
09.93~10.94 1800 4S-FE ST201 C110J A174J PI1005FS3061FR1009
09.93~04.98 2000 3S-FE ST202 C110J A174J FR1009FS3061PI1005   JT390K
09.93~12.97 2000 3S-FE ST203 C110J A174J FS3061PI1005FR1009   JT390K
09.93~04.98 2000 3S-GE ST202 C110J A174J PI1005FR1009FS3061

TOYOTA   »   Corona Premio

01.96~12.01 1600 4A-FE AT210 C110J A161J FS6002UFR1007PI1005 AC1502RSET JT391K
01.96~12.01 1800 7A-FE AT211 C110J A161J FR1007FS6002UPI1005 AC1502RSET JT391K
01.96~12.01 2000 3S-FE ST210 C110J A161J FS6002UFR1009PI1005 AC1502RSET JT391K
01.96~12.01 2000 3S-FE ST215 C110J A161J FS6002UFR1009PI1005 AC1502RSET JT386KJT387K

TOYOTA   »   Crown

08.95~08.01 2500 1JZ-GE JZS153 C111T A173J PI1005FS6042   JT535K
10.91~12.95 3000 2JZ-GE JZS133 C111T A178J FR1022PI1005PI1002FS6042FR1021 AC1514C JT420K
10.91~12.95 3000 2JZ-GE JZS133L C111T A178J FS6042FR1021PI1005   JT429K
01.88~11.01 3000 2JZ-GE JZS133R C111T A178J FR1021FS6042PI1005   JT429KJT420K

TOYOTA   »   Curren

01.95~07.98 1800 4S-FE ST208 C110J A174J PI1005FS3061
01.94~07.98 2000 3S-FE ST206 C110J A174J FR1009PI1005FS3061   JT390K
01.94~07.98 2000 3S-FE ST207 C110J A174J PI1005FS3061FR1009   JT390K
01.94~07.98 2000 3S-GE ST206 C110J A174J FS3061FR1009PI1005 AC101JC JT390K
02.94~07.98 2000 3S-GE ST207     PI1005

TOYOTA   »   Cynos

08.95~07.99 1300 4E-FE EL52 C110J A179J FS6002UFR1020PI1005   JT390K
08.96~03.99 1300 4E-FE EL52C C110J A179J FS6002UPI1005FR1020   JT390K
08.95~07.99 1500 5E-FHE EL54 C110J A179J FR1020PI1005FS6002U AC21002SET JT387K

TOYOTA   »   Echo (USA)

06.03~08.05 1500 1NZ-FE NCP13L C110J A197J PI1005FR1013FS6300   JT425K
08.99~02.06 1500 1NZFE NCP12L C110J A197J FS6300FR1013PI1005 AC101J JT425K

TOYOTA   »   Estima

02.00~01.06 2400 2AZ-FE ACR30W C113J A1001 PI1005FS6300FR1007 AC102J JT426K

TOYOTA   »   Estima Emina

01.99~01.06 2400 2AZ-FE ACR40W C113J A1001 FR1007PI1005FS6300 AC102J JT426K
01.01~01.06 2400 2AZ-FXE AHR10W C113J A1001 FR1007PI1005FS6300

TOYOTA   »   Gaia

04.01~09.04 2000 1AZ-FSE ACM10G C113J A161J PI1005FS8013FS3204FR1019 AC1502RSET JT393K
04.01~09.04 2000 1AZ-FSE ACM15G C113J A161J FR1019PI1005FS3204 AC1502RSET JT393K
05.98~04.01 2000 3S-FE SXM10G C110J A161J PI1005FS3204 AC1502RSET JT391K
05.98~08.02 2000 3S-FE SXM15G C110J A161J FS3204FR1009PI1005 AC1502RSET JT387K

TOYOTA   »   Harrier

12.97~11.00 2200 5S-FE SXU15W C110J A174J FS6304PI1007PI1005FR1007 AC104J JT426KJT423KJT424
12.97~02.03 2400 2AZ-FE ACU10W C113J A174J FS6300PI1005FR1007 AC104J JT426K
11.00~02.03 2400 2AZ-FE ACU15W C113J A174J FS6300PI1005FR1007 AC104J JT426K

TOYOTA   »   Hilux

08.94~08.97 2000 3Y-E YN86 C113J A145J PI1005FR1009FS6001U   JT281K

TOYOTA   »   Ipsum

05.95~12.01 2000 3S-FE SXM10G C110J A161J FS3204PI1005FR1009 AC1502RSET JT387K
01.96~05.01 2000 3S-FE SXM15G C110J A161J PI1005FS3204FR1009 AC1502RSET JT386K
01.01~01.09 2400 2AZ-FE ACM21W C113J A1003 FR1009PI1005FS6302 AC102J JT426K
01.01~01.09 2400 2AZ-FE ACM26W C113J A1003 FR1009PI1005FS6302 AC102J JT426K

TOYOTA   »   Isis

09.04~05.11 1800 1ZZ-FE ZNM10G C110J A1003 FR1009FS6302PI1005 AC101J JT425K
09.04~05.11 1800 1ZZ-FE ZNM10W C110J A1003 FR1019FS6302PI1005 AC101J JT485K
09.09~01.18 1800 2ZR-FAE ZGM10G OE117J A1003 PI1005FS6302FR1019 AC101J JT494KJT527
09.09~01.18 1800 2ZR-FAE ZGM15_ OE117J A1003 FS6302FR1019PI1005 AC101J
09.09~01.18 1800 3ZR-FAE ZGM11G OE117J A1003 FR1019FS6302PI1005 AC101J JT527JT485K
09.09~01.18 1800 3ZR-FAE ZGM11W OE117J A1003 PI1005FR1019FS6302 AC101J JT485KJT527
09.04~05.11 2000 1AZ-FSE ANM10G C113J A1003 FR1019FS6302PI1005 AC101J JT527
09.04~09.09 2000 1AZ-FSE ANM10W C113J A1003 FS6302FR1019PI1005 AC101J JT527JT485K
09.04~05.11 2000 1AZ-FSE ANM15 C113J A1003 FR1019FS6302PI1005 AC101J JT485K

TOYOTA   »   Kluger

01.00~05.07 2400 2AZ-FE ACU20W C113J A199J PI1005FR1007FS6300 AC104J JT426K

TOYOTA   »   Land Cruiser

01.90~07.09 4500 1FZ-F FZJ75LP C114TC101V A147J FS9202FS6064FR1022PI1005
01.92~12.06 4500 1FZ-F# FZJ80L C114TC101V A147J FS6064PI1005FR1020FS9085   JT433KJT408KJT434K
01.92~01.98 4500 1FZ-F# FZJ80R C114TC101V A147J FR1020FS9085PI1005FS6064   JT434KJT433KJT408K
08.99~07.09 4500 1FZ-FE FZJ71L C101VC114T A147J FR1022PI1005FS6205
08.98~07.09 4500 1FZ-FE FZJ79L C101V A147J FR1022PI1005FS6205
01.90~01.98 4500 1FZ-FE FZJ80 C114TC101V A147J PI1005FS6064FS9085   JT408K

TOYOTA   »   Land Cruiser 100

01.98~09.07 4500 1FZ-FE FZJ100 C101V A190J PI1005FR1009FS9120
01.98~09.07 4500 1FZ-FE FZJ105L C101V A190J FR1009FS9120PI1005
01.98~09.07 4500 1FZ-FE FZJ105R C101V A190J FS9120PI1005FR1009   JT408K
01.98~09.07 4700 2UZ-FE UZJ100L C114T A194J PI1005FS9120FR1009 AC1506SET JT437K
01.98~01.04 4700 2UZ-FE UZJ100R C114T A1503A194J FR1009FS9120PI1005 AC1506SET JT435KJT437K
01.98~08.07 4700 2UZ-FE UZJ100W C114T A194J FR1009PI1005FS9120 AC1506SET JT437KJT410K

TOYOTA   »   Land Cruiser Prado

04.97~09.02 2700 3RZ-FE RZJ95R C111T A136J FS121JFS6001UPI1018PI1005FR1009   JT433K

TOYOTA   »   Mark II Wagon Qualis

04.97~12.01 2200 5S-FE SXV20W C110J A174J FR1009FS6002UPI1005 AC1507CSET JT390K
04.97~12.01 2500 2MZ-FE MCV21W C111T A174J FS3201FR1009FS6002UPI1005 AC1507CSET JT389K
04.97~12.01 3000 1MZ-FE MCV20W C111T A174J FR1009FS6002UPI1005 AC1507CSET JT389K

TOYOTA   »   Matrix

01.02~01.08 1800 1ZZ-FE ZZE132 C110J A1003 PI1005FS6300FS2117PPI1007FR1013 AC1503 JT393K
01.02~01.08 1800 1ZZ-FE ZZE132L C110J A1003 FS2117PPI1007FS6300PI1005FR1013 AC1503 JT393K
01.02~07.06 1800 2ZZ-GE ZZE133 C113J A1003 PI1005FR1013PI1007FS6300FS2117P AC1503 JT426K

TOYOTA   »   MR2

11.89~08.99 2000 3S-GE SW20 C110J A174JA161J PI1005FS6001U

TOYOTA   »   Nadia

04.01~07.03 2000 1AZ-FSE ACN10 C113J A161J FS8013FS3204PI1005 AC1502RSET JT393K
04.01~07.03 2000 1AZ-FSE ACN10H(SU) C113J A161J FS8013FS3204PI1005FR1019 AC1502RSET JT393K
07.98~04.01 2000 3S-F#E SXN10 C110J A161J PI1005FR1009FS3204 AC1502RSET JT426K
08.98~06.03 2000 3S-FE SXN10H(SU) C110J A161J FS3204FR1009PI1005 AC1502RSET JT391K
07.98~07.03 2000 3S-FE SXN15 C110J A161J PI1005FR1009FS3204 AC1502RSET JT387K
07.98~07.03 2000 3S-FE SXN15H SU C110J A161J PI1005FS3204FR1009   JT387K

TOYOTA   »   Noah/Voxy

01.01~01.07 2000 1AZ-FSE AZR60G C113J A1003 FR1019FS6302PI1005 AC102J JT527JT393KJT485K
01.01~01.07 2000 1AZ-FSE AZR65 C113J A1003 FS6302PI1005FR1019 AC102J JT485KJT527JT393K
06.07~04.10 2000 3ZR-FAE ZRR70 OE117J A1013 FR1019PI1005FS6302 AC108J JT485KJT527
06.07~04.14 2000 3ZR-FAE ZRR75 OE117J A1013 PI1005FS6302FR1019 AC108JAC108C JT531KJT527

TOYOTA   »   Opa

05.00~04.05 1800 1ZZ-FE ZCT15 C110J A1003 PI1005FR1019FR1009FS6302 AC102J JT425K
08.00~02.05 2000 1AZ-FSE ACT10 C113J A1003 PI1005FR1019FS6302 AC102J JT527JT21003K

TOYOTA   »   Paseo

04.91~08.95 1500 5E-FE EL44 C110J A172J FR1020FS3209UPI1005FR1019FS6002UPI1001FR1007   JT387K
09.96~03.99 1500 5E-FE EL54Convertible C110J A172J FS3209UFR1020PI1005 AC21002SET JT387K
08.95~07.99 1500 5E-FE EL54L C110J A172J PI1005FS3209UFR1020 AC21002SET JT387K

TOYOTA   »   Picnic

01.96~05.01 2000 3S-FE SXM10R C110J A161J FS3204FR1009PI1005 AC1502SET

TOYOTA   »   Previa

01.00~01.06 2400 2AZ-FE ACR30L C113J A1001 PI1005FS6300FR1007   JT426K

TOYOTA   »   Raum

05.97~04.03 1500 5E-FE EXZ10 C110J A179J FS6002UPI1005FR1020 AC21002SET JT387K

TOYOTA   »   RAV 4

06.00~11.05 1800 1ZZ-FE ZCA25L C110J A195J PI1005FS6302FR1009 AC101J
01.00~12.04 1800 1ZZ-FE ZCA26L C110J A195J FS6302PI1005FR1009 AC101J
05.00~11.05 2000 1AZ-FE ACA20R C113J A1001 FS6302PI1005 AC101J JT426K
05.00~11.05 2000 1AZ-FE ACA20W C113J A1001 FR1019FS6302PI1005 AC101J JT426K
08.00~11.05 2000 1AZ-FE ACA21L C113J A1001 FS6302PI1005FR1009 AC101J JT426K
08.00~07.03 2000 1AZ-FE ACA26L C113J A1001 FR1009PI1005FS6302 AC101J JT426K
05.00~11.05 2000 1AZ-FSE ACA21W C113J A1001 FR1019FS6302PI1005 AC101J JT426K
08.96~05.00 2000 3S-#E SXA10W C110J A161J PI1005FR1009FS3209U   JT386K
04.95~05.00 2000 3S-#E SXA11 C110J A161J FS3209UFR1009PI1005   JT386K
01.94~05.00 2000 3S-FE SXA10G C110J A161J FS3209UPI1005FR1009   JT386K
04.95~08.00 2000 3S-FE SXA11L C110J A161J PI1005FR1009FS3209U   JT386K
04.95~05.00 2000 3S-FE SXA11R C110J A161J FR1009FS3209UPI1005   JT386K
09.97~05.00 2000 3S-FE SXA15G C110J A161J FS3209UPI1005FR1009   JT391K
02.96~08.00 2000 3S-FE SXA15L C110J A161J FS3209UFR1009PI1005   JT391K
09.97~05.00 2000 3S-FE SXA16G C110J A161J FR1009PI1005FS3209U   JT391K
02.96~08.00 2000 3S-FE SXA16L C110J A161J PI1005FS6002UFR1009FS3065   JT391KJT387K
01.93~01.00 2000 3SFE SXA10L C110J A161J FS3065FR1009FS3209UPI1005   JT386K
01.93~01.00 2000 3SFE SXA10R     PI1005FR1009
01.00~11.05 2400 2AZ-FE ACA22R C113J A1001 PI1005FR1009FS6302   JT426K
07.03~11.05 2400 2AZ-FE ACA28L C113J A1001 FS6302FR1009PI1005 AC101J JT426K

TOYOTA   »   Scepter

11.92~08.96 2200 5S-FE SXV10 C110J A174J PI1005FS6002U   JT390K
12.92~07.96 2200 5S-FE SXV15W C110J A174J PI1005FS6002U   JT390K
07.92~07.96 3000 3VZ-FE VCV15W C111T A174J PI1005FS6002U   JT386K

TOYOTA   »   Scion TC

01.04~01.10 2400 2AZ-FE ANT10 C113J A1003 PI1005FR1007FS6300 AC101J JT426K

TOYOTA   »   Scion XA

04.03~12.06 1500 1NZ-FE NCP61L C110J A197J FR1013PI1005FS6300   JT425K

TOYOTA   »   Scion XB

04.03~12.06 1500 1NZ-FE NCP31 C110J A197J FR1013PI1005FS6300 AC403J JT425K

TOYOTA   »   Soarer

01.86~04.91 3000   MZ20     PI1005
01.86~04.91 3000   MZ21     PI1005
01.86~05.91 3000 7M-GTEU MZ20 C111T A155J PI1005FS6003U
01.86~05.91 3000 7M-GTEU MZ21 C111T A155J FS6003UPI1005

TOYOTA   »   Soluna

12.96~07.03 1500 5A-FE AL50 C110J A172J FR1020PI1005FS6202U   JT390K

TOYOTA   »   Sprinter

06.91~05.95 1500 5A-FE AE100 C110J A177J PI1005FS6202UFR1009
06.91~08.98 1600 4A-FE AE101 C113J A177J PI1005FS6202U   JT387K
06.91~05.95 1600 4A-FE AE104 C110J A177J PI1005FS6202UFR1021   JT387K
05.95~08.00 1600 4A-FE AE114 C110J A177J PI1005FS6202UFR1021   JT387K
05.95~08.00 1600 4A-GE AE111G C113J A177J FS6202UFR1009PI1005   JT391K

TOYOTA   »   Sprinter Carib

05.96~07.02 1600 4A-FE AE111G C110J A177J PI1007FR1009PI1005FS6202U   JT391K
04.95~07.02 1600 4A-FE AE114G C110J A177J FS6202UFR1021PI1005   JT387K
05.95~07.02 1600 4A-GE AE111G C113J A177J FR1021PI1005FS6202U
08.95~07.02 1800 7A-FE AE115G C110J A177J FR1021PI1005FS6202U   JT387K

TOYOTA   »   Sprinter Trueno

06.91~08.98 1500 5A-FE AE100 C110J A177J FR1021PI1005FS6202U   JT387K
04.91~08.98 1600 4A-FE AE101 C110J A177J FR1021PI1005FS6202U   JT391KJT387K
05.95~08.00 1600 4A-FE AE111 C110J A177J PI1005FS6202UFR1021   JT391K
05.95~08.00 1600 4A-GE AE111 C110J A177J FR1021PI1005FS6202U   JT391K

TOYOTA   »   Starlet

12.89~03.98 1000 1E EP80R C110J A157JA1504 FS146JFR1019FS6002UPI1005
01.96~07.99 1300 4E-FE EP91L C110J A172J FR1020PI1005FS6002UFR1009 AC21002SET JT390K

TOYOTA   »   Tercel

09.94~07.99 1500 5E-FE EL53L C110J A172J FS6002UPI1005FR1020 AC21002SET JT387KJT390K

TOYOTA   »   Vista

07.90~06.94 2000   SV33     PI1005
06.94~06.98 2000 3S-FE SV41 C110J A161J PI1005FS6002UFR1009 AC106J JT389K
06.94~06.98 2000 3S-FE SV43 C110J A161J FS6002UFR1009PI1005 AC106J JT389K
06.98~08.03 2000 3S-FSE SV50 C110J A161J FS6302FR1009FS6304PI1005 AC102J JT426K

TOYOTA   »   Vista Ardeo

08.01~07.03 2000 1AZ-FSE AZV50G C113J A161J FS6302PI1005FR1019 AC102J JT393K
04.02~07.03 2000 1AZ-FSE AZV55G C113J A161J FS6302FR1019PI1005 AC102J JT393K
06.98~04.02 2000 3S-FE SV55G C110J A161J FR1009FS6304PI1005 AC102J JT426K
01.98~07.03 2000 3S-FSE SV50G C110J A161J FS6304PI1005FR1009 AC102J JT426K

TOYOTA   »   Voxy

11.01~04.08 2000 1AZ-FSE AZR65G C113J A1003 FS6302PI1005FR1019 AC102J JT527JT393KJT485K

TOYOTA   »   Will VS

04.01~04.04 1800 1ZZ-FE ZZE129 C110J A1003 PI1005FS6300FR1013 AC101J JT425K
04.01~04.04 1800 2ZZ-GE ZZE128 C113J A1003 PI1005FS6300FR1013 AC101J JT426K

TOYOTA   »   Windom

08.96~07.01 2500 2MZ-FE MCV21 C111T A174J FS3201FR1009PI1005 AC1507CSET JT389K
08.93~08.96 2500 4VZ-FE VCV11 C111T A174J FS6002UPI1005 AC1507CSET JT386K
08.96~07.01 3000 1MZ-FE MCV20 C111T A174J FR1009PI1005FS3201 AC1507CSET JT423K

TOYOTA   »   Wish

01.03~03.09 1800 1ZZ-FE ZNE10G C110J A1003 FR1019PI1005FS6302 AC101J JT425K
01.03~03.09 1800 1ZZ-FE ZNE14G C110J A1003 PI1005FR1009FS6302 AC101J JT425K
03.09~11.17 1800 2ZR-FAE ZGE20G OE117J A1013 FR1019PI1005FS6302 AC108J JT494KJT527JT539NK
03.09~11.17 1800 2ZR-FAE ZGE20W OE117J A1013 FS6302FR1019PI1005 AC108J JT539NKJT494KJT527
03.09~04.12 1800 2ZR-FAE ZGE25W OE117J A1013 FR1019PI1005FS6302 AC108J JT527JT426K
11.05~09.09 2000 1AZ-FE ANE11L C113J A1003 FR1019FS6302PI1005 AC101J JT527JT426K
12.03~09.09 2000 1AZ-FE ANE11R C113J A1003 FR1019PI1005FS6302 AC101J JT527JT426K
04.03~03.09 2000 1AZ-FSE ANE11W C113J A1003 PI1005FS6302FR1019 AC101J JT485KJT527
03.09~04.12 2000 3ZR-FAE ZGE21G OE117J A1013 FS6302FR1019PI1005 AC108J JT426KJT485KJT527
03.09~04.12 2000 3ZR-FAE ZGE21R OE117J A1013 FS6302FR1019PI1005 AC108J JT485KJT527JT426K
03.09~ 2000 3ZR-FAE ZGE22W OE117J A1013 FS6302FR1019PI1005 AC108J JT485KJT527

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
