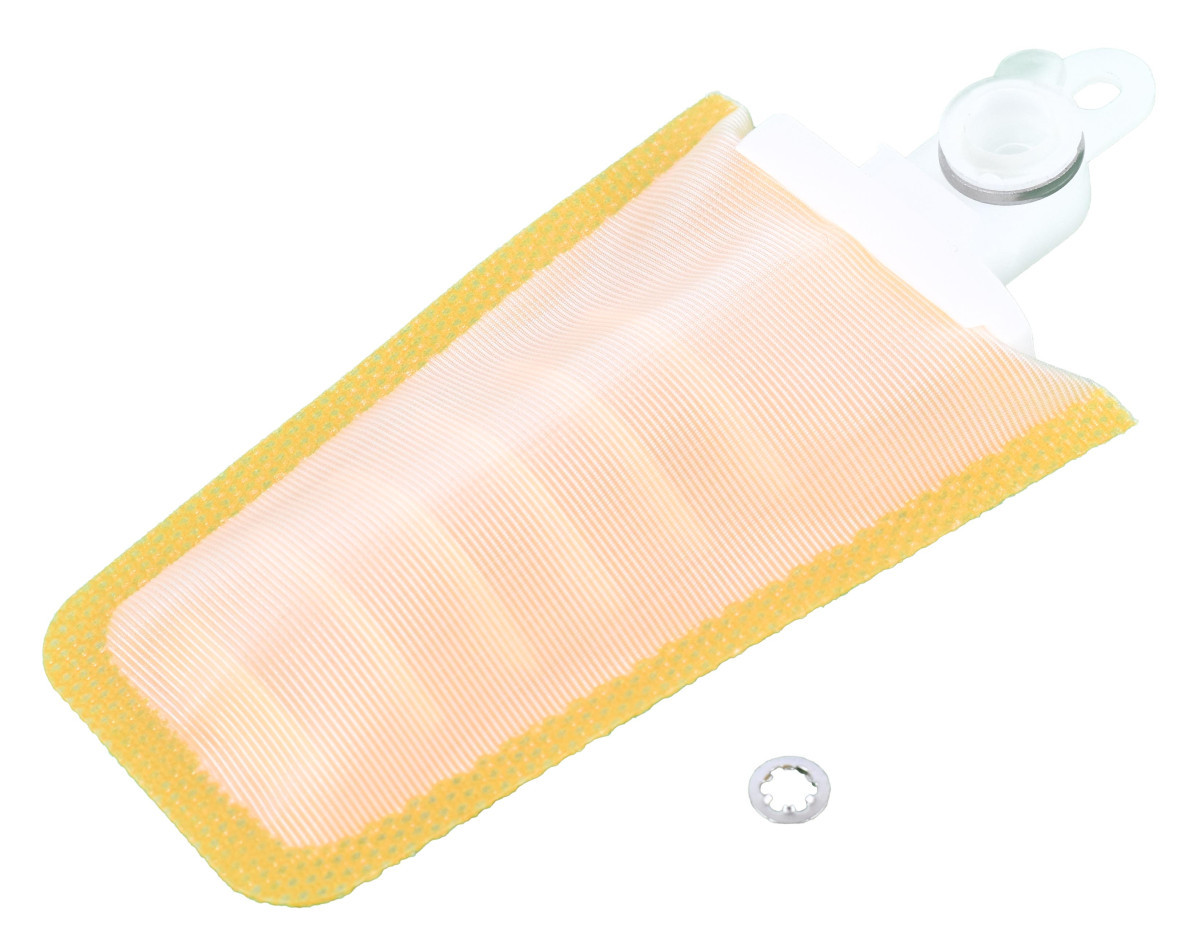

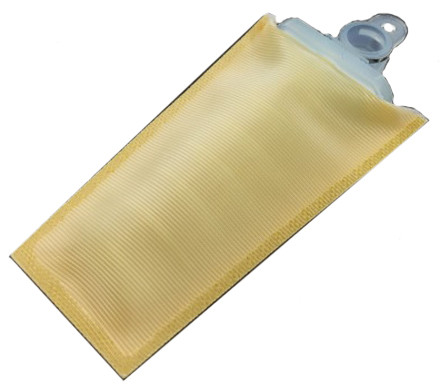

FUEL STRAINER » FR1007

Feedback information
FR1007

Specification

Length(mm)
95
Width(mm)
63
Height (mm)
19

Cross reference

GM
88974893
GM
94856915
GM
94858753
TOYOTA
23217-03030
TOYOTA
23217-0F010
TOYOTA
23217-46090
TOYOTA
23217-46100
TOYOTA
23217-76040
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

LEXUS   »   GS400

08.97~07.00 4000 1UZ-FE UZS160 C114T A198J FR1007FS6304PI1002 AC104J JT428K

LEXUS   »   HS250h

07.09~02.18 2400 2AZ-FXE ANF10 C113J A1521 FS6303AFS2107PI1001FR1007 AC108CAC108J

LEXUS   »   IS300

05.00~07.05 3000 2JZGE JCE10L C111T A192J FR1007PI1002FS6300 AC104J JT428K
07.01~07.05 3000 2JZGE JCE10R C111T A192J PI1002FR1007FS6300 AC104J JT428K

PONTIAC (GM)   »   VIBE I

01.02~07.06 1800 LV6(1ZZFE) SM26 C110J A1003 FS6300PI1007FR1007 AC1515 JT425K

TOYOTA   »   4 Runner

11.95~12.02 2700 3RZ-FE RZN185 C111T A171J FS6001UPI1001FR1007   JT434KJT435K
08.88~11.95 3000 3VZ-E VZN110 C111T A155J FR1019FS6042PI1001FR1007   JT431K
11.95~08.02 3400 5VZ-FE VZN180L C111T A173J FS6042PI1001FR1007   JT429KJT420K
11.95~12.02 3400 5VZ-FE VZN185 C111T A173J PI1001FR1007   JT433K

TOYOTA   »   Alphard

05.02~05.08 2400 2AZ-FE ANH10W C113J A1001 FR1007PI1005FS6300 AC102J JT426K
05.02~05.08 2400 2AZ-FE ANH15W C113J A1001 FR1007PI1005FS6300 AC102J JT426K
05.02~04.08 3000 1MZ-FE MNH15W C111T A199J FR1007FS6300PI1001 AC102J JT426K

TOYOTA   »   Altezza

06.01~07.05 3000 2JZ-GE JCE10W C111T A192J FR1007PI1002FS6300 AC101J JT428K
06.01~07.05 3000 2JZ-GE JCE15W C111T A192J PI1002FS6300FR1007 AC101J

TOYOTA   »   Aristo

01.97~01.05 3000 2JZ-GE JZS160 C111T A192J FR1007PI1002FS6300FS6304 AC104J JT428KJT419K
08.97~01.05 3000 2JZ-GTE JZS161 C111T A192J FS6304FR1007FS6300 AC104J JT419K

TOYOTA   »   Auris

08.12~05.18 1800 2ZR-FAE ZRE182R OE117J A1013 FS2109FR1007PI1001 AC108C JT527JT539KJT601K
08.12~11.18 1800 2ZR-FE ZRE186H OE117J A1013 PI1001FS2109FR1007 AC108CAC108J JT527

TOYOTA   »   Avalon

08.93~02.00 3000 1MZ-FE MCX10 C106J A174J FS3201PI1007FS6002UFR1007 AC1507CSET JT389K
04.00~06.05 3000 1MZ-FE MCX10R C106J A174J FR1007FS3201PI1007FS6002U AC1507CSET JT389K
08.99~01.05 3000 1MZ-FE MCX20L C111T A174J PI1001FR1019FS3201FR1009FR1007FS6002UFS6300 AC102J JT389K
01.05~10.12 3500 2GR-FE GSX30L OE118J A1015 PI1001FR1019FR1007FS6300 AC108J JT422K

TOYOTA   »   bB

01.00~12.05 1500 1NZ-FE NCP35 C110J A197J FR1009FR1007FS6300FS6301 AC101J JT425K

TOYOTA   »   Caldina

11.92~01.96 1800 4S-FE ST190G C110J A161J FR1020FR1007PI1001FS6002U   JT387K
01.96~08.97 1800 7A-FE AT191G C110J A161J PI1005FR1007FS6002U   JT391K
08.97~09.02 1800 7A-FE AT211G C110J A161J FS6002UPI1005FR1007 AC1502RSET JT391K

TOYOTA   »   Camry

06.91~01.02 2200 5S-FE SXV20L C110J A174J PI1007FS6002UFR1007   JT390K
01.01~01.06 2400 2AZ-FE ACV35 C113J A199J FR1007PI1005FS6300 AC102J JT426K
01.06~08.11 2400 2AZ-FE ACV45 C113J A1019 FR1007PI1001FS6300 AC108J JT426K
09.11~09.17 3500 2GR-FE GSV50L OE118J A1519 PI1001FS2105FR1007 AC108J JT394K

TOYOTA   »   Camry Gracia

06.97~09.01 2500 2MZ-FE MCV25W C111T A174J FS6304FR1007FS6300PI1001 AC1507CSET JT389K

TOYOTA   »   Camry/Aurion

01.12~10.17 3500 2GRFE GSV50 OE118J A1519 FS2105FR1007PI1001 AC108J JT394K

TOYOTA   »   Carina

08.92~08.96 1500 5A-FE AT192 C110J A161J PI1005FS6002UFR1007PI1001FR1020   JT391K
08.96~08.01 1500 5A-FE AT212 C110J A161J PI1005FS6002UFR1007 AC1502RSET JT387K
08.92~08.96 1600 4A-FE AT190 C110J A161J FS6002UFR1007PI1005 AC1502RSET JT391K
08.92~08.94 1800 4S-FE ST190 C110J A161J PI1005PI1001FS6002UFR1007 AC1502SETAC1502RSET JT387K
08.94~06.97 1800 7A-FE AT191 C110J A161J PI1005FS6002UFR1007 AC1502RSET JT391K
08.96~12.01 1800 7A-FE AT211 C110J A161J FR1007PI1005FS6002U   JT391K
08.92~08.94 2000 3S-FE ST195 C110J A161J FS6002UPI1001FR1007FR1020FR1009   JT386K

TOYOTA   »   Carina E

01.92~12.97 1600 4A-FE AT190L C110J A1505 PI1005FR1007PI1001FS6002UFR1009 AC1502SET
01.92~12.97 1800 7A-FE AT191L C110J A161J PI1001FS6002UFR1007PI1005 AC1502SET JT391K
02.92~10.97 1800 7A-FE AT191R C110J A1505 PI1001FR1007PI1005FS6002U AC1502SET JT391K
01.92~12.97 2000 3S-#E ST191L C110J A1505A161J PI1001FS6002UFR1007PI1005FR1009 AC1502SET JT387K
01.92~06.96 2000 3S-GE ST191L C110J A161J FR1009PI1005FS6002UPI1001FR1007 AC1502SET

TOYOTA   »   Carina ED

05.94~04.98 2000 3S-GE ST205 C110J A174J PI1001FR1007FS3061FR21001   JT386K

TOYOTA   »   Century

04.97~01.05 5000 1GZ-FE GZG50 C107J A171J PI1002FR1007FS3210U AC103J JT419K

TOYOTA   »   Chaser

04.97~06.01 1800 4S-FE SX100 C110J A173J FR21001PI1001FS6042FR1007   JT281K
10.92~09.96 1800 4S-FE SX90 C110J A173J FR21001PI1001FS6042FR1007 AC21001SET JT281K
08.96~07.01 2000 1G-FE GX100 C111T A189JA195J FS6042FR21001PI1001FR1007 AC21001SET JT279K
08.98~07.01 2000 1G-FE GX105 C111T A195J FS6042FR21001PI1001FR1007 AC21001SET JT535K
10.92~09.96 2000 1G-FE GX90 C111T A173J FR21001PI1001FR1007FS6042 AC21001SET JT279K
08.90~02.93 2500 1JZ-G#E JZX81 C111T A175J FS3209UFR21001PI1001FR1007   JT429K
08.96~06.01 2500 1JZ-GE JZX100 C111T A189J FR1007PI1001FR21001FS6042 AC21001SET JT428K
09.96~07.01 2500 1JZ-GE JZX105 C111T A189J FR1007FS6042FR21001PI1001 AC21001SET JT535K
10.93~09.96 2500 1JZ-GE JZX93 C111T A173J PI1001FR21001FS6042FR1007 AC21001SET JT432K

TOYOTA   »   Coaster

08.07~12.16 2700 2TR-FE TRB50L C111T A136J FR1007

TOYOTA   »   Corolla

05.00~01.02 1800 1ZZ-FE ZZE110L C110J A177J FS6304FR1007   JT391K
03.15~ 1800 2ZR-FE ZRE182R OE117J A1013 FR1007FS2109PI1001 AC108J JT539KJT527

TOYOTA   »   Corolla II

09.90~09.94 1300 4E-FE EL41 C110J A179J PI1001FS6002UFR1007FR1020FR1019   JT390K
09.90~08.94 1500 5E-FE EL43 C110J A179J FR1007FR1020FR1019PI1001FS6002U   JT387K
09.90~09.94 1500 5E-FE EL45 C110J A179J FR1007FR1019FS6002UPI1001FR1020   JT387K
09.94~07.99 1500 5E-FE EL55 C110J A179J FR1020PI1001FS6002UFR1007   JT387K

TOYOTA   »   Corona

02.92~07.98 1600 4A-FE AT190 C110J A161J PI1005PI1001FS6002UFR1007FR1009 AC1502RSET JT387KJT391K
03.92~11.97 1600 4A-FE AT190R C110J A161J FR1009FR1020FS6002UPI1005FR1007PI1001 AC1502RSET JT387KJT391K
01.96~12.01 1600 4A-FE AT210R C110J A161J FS6002UPI1005FR1007 AC1502RSET JT391K
01.92~01.96 1800 4S-FE ST190 C110J A161J PI1005PI1001FR1020FR1009FS6002UFR1007   JT387K
01.92~12.98 2000 3S-FE ST191 C110J A161J FS6002UFR1007PI1005 AC1502RSET JT387K
02.92~11.98 2000 3S-FE ST191L C110J A161J PI1001FR1007FS6002U   JT387K
01.92~01.96 2000 3S-FE ST195 C110J A161J FS6002UFR1009FR1020FR1007 AC1502RSET JT386K

TOYOTA   »   Corona Premio

01.96~12.01 1600 4A-FE AT210 C110J A161J FS6002UFR1007PI1005 AC1502RSET JT391K
01.96~12.01 1800 7A-FE AT211 C110J A161J FR1007PI1005FS6002U AC1502RSET JT391K

TOYOTA   »   Cresta

08.90~10.92 1800 4S-F# SX80 C110J A155J PI1004FR21001PI1001FR1023FR1007FS6002U   JT281K
09.96~06.01 2000 1G-FE GX100 C111T A189JA195J FS8013FR21001PI1001FS6042FR1007 AC21001SET JT279K
08.98~06.01 2000 1G-FE GX105 C111T A195J FS6042FR1007FR21001PI1001 AC21001SET JT535K
08.88~10.92 2000 1G-FE GX81 C111T A155J FR1007FS6001UFR21001PI1001   JT278K
10.92~01.96 2000 1G-FE GX90 C111T A173J FR21001PI1001FR1007FS6042 AC21001SET JT279K
09.96~07.01 2500 1JZ-GE JZX100 C111T A189J FR21001PI1001FR1007FS6042 AC21001SET JT419K
09.96~07.01 2500 1JZ-GE JZX105 C111T A189J FR21001PI1001FR1007FS6042 AC21001SET JT535K
08.90~10.92 2500 1JZ-GE JZX81 C111T A175J FS3209UFR1007FR21001PI1001   JT429K
10.92~09.96 2500 1JZ-GE JZX90 C111T A173J FR1007FS6042FR21001PI1001 AC21001SET JT429K
10.93~09.96 2500 1JZ-GE JZX93 C111T A173J PI1001FR21001FS6042FR1007 AC21001SET JT432K

TOYOTA   »   Crown

01.00~12.03 3000 2JZ-GE JZS175R C111T A192J PI1002FS6300FR1007 AC104J JT419K
09.99~12.03 3000 2JZ-GE JZS179 C111T A192J FR1007FS6300PI1002 AC106J JT419K
09.99~07.04 4000 1UZ-FE UZS173 C114T A198J FR1007FS6300PI1002 AC106J

TOYOTA   »   Crown Majesta

09.99~12.03 2500 1JZ-G## JZS171 C111T A192J FS6300PI1001FR1007 AC106J JT469JT428K
01.99~01.04 2500 1JZ-GE JZS173 C111T A192J FR1007PI1001FS6300 AC104J JT535K
12.99~06.07 2500 1JZ-GE JZS173W C111T A192J FS6300FR1007PI1001 AC111J JT535K
09.99~12.03 3000 2JZ-FSE JZS175 C111T A192J PI1003FR1007FS6300PI1002 AC106J JT428K
09.99~07.04 3000 2JZ-FSE JZS177 C111T A192J FR1007FS6300PI1002 AC106J JT428K
09.99~06.04 4000 1UZ-FE UZS171 C114T A198J FR1007FS6300PI1002 AC104J JT428K

TOYOTA   »   Cynos

01.91~08.95 1500 5E-FE EL44 C110J A179J PI1001FR1019FS6002UFR1007FR1020   JT387K

TOYOTA   »   Dyna

07.01~08.07 2000 1RZ-E RZY220 C111T A160J FS6001UFR1007PI1001FR21001
07.01~08.03 2000 1RZ-E RZY230 C111T A160J FR21001PI1001FR1007FS6001U   JT279K
07.01~ 2000 1TR-FE TRY220 OE116JC111T A147J FS3217FR1007PI1001FR21001   JT469
07.11~05.16 2700 2TR-FE TRC600 OE116J A136J FS3217FR1007PI1001
05.07~06.11 2700 2TR-FE TRU300 OE116J A136J FR1007FS3217PI1001
05.07~06.11 2700 2TR-FE TRU500 OE116J A136J FR1007PI1001FR21001FS3217
05.00~05.07 2700 3RZ-FE RZU340 C111T A190JA136J FR21001PI1001FR1007FS6001U

TOYOTA   »   Dyna 200 / Toyoace G25

05.95~12.03 2700 3RZ-FE RZU100 C111T A147J FS6001UFR21001PI1001FR1007
08.97~05.00 2700 3RZ-FE RZU140 C111T A147J FS6001UFR1007FR21001PI1001

TOYOTA   »   Estima

02.00~01.06 2400 2AZ-FE ACR30W C113J A1001 FS6300FR1007PI1005 AC102J JT426K
08.93~12.99 2400 2TZ-FE TCR10W C111T A171J PI1001PI1004FS6001UFR1007   JT279K
01.92~12.99 2400 2TZ-FE TCR20W C111T A171J FR1007FS6001UFR1020PI1001PI1002   JT279KJT429K
12.99~01.06 3000 1MZ-FE MCR40W C111T A199J PI1001FR1007FS6300 AC102J JT426K

TOYOTA   »   Estima Emina

01.99~01.06 2400 2AZ-FE ACR40W C113J A1001 FS6300PI1005FR1007 AC102J JT426K
01.01~01.06 2400 2AZ-FXE AHR10W C113J A1001 FS6300PI1005FR1007
01.92~12.99 2400 2TZ-FE TCR10G C111T A171J FR1007FS6001UPI1001   JT279K
01.92~12.99 2400 2TZ-FE TCR11G C111T A171J PI1001FR1019FR1020FR1007FS6001U   JT279K
01.92~12.99 2400 2TZ-FE TCR20G C111T A171J FS6001UFR1007FR1020PI1001   JT279K
01.92~12.99 2400 2TZ-FE TCR21G C111T A171J FR1019FR1007FS6001UFR1020PI1001   JT279K
05.90~08.94 2400 2TZ-FE TCR21W C111T A171J PI1001PI1004FR1007FS6001U   JT279K
05.90~12.99 2400 2TZ-FZE TCR11W C111T A171J FS6001UFR1007PI1002   JT429K
08.94~12.99 2400 2TZ-FZE TCR21W C111T A171J PI1002FR1007FS6001U   JT429K

TOYOTA   »   Funcargo

08.99~09.05 1500 1NZ-FE NCP25 C110J A197J FR1009FR1007FS6300 AC101J JT425K

TOYOTA   »   Granvia / Grand Hiace

08.95~04.98 2700 3RZ-FE RCH11W C111T A185J PI1001FR1007FS6001U   JT279K
05.97~05.02 3400 5VZ-FE VCH10W C111T A185J PI1001FR1007FS3205   JT420K
05.97~05.02 3400 5VZ-FE VCH16W C111T A185J FR1007FS3205PI1001   JT420K
07.99~05.02 3400 5VZ-FE VCH22K C111T A185J FR1007FS3205PI1001   JT420K
07.99~05.02 3400 5VZ-FE VCH28K C111T A185J FS3205PI1001FR1007   JT420K

TOYOTA   »   Harrier

12.97~11.07 2200 5S-FE SXU10W C110J A174J FS6304FR1007PI1007 AC104J JT423K
12.97~11.00 2200 5S-FE SXU15W C110J A174J PI1005FS6304FR1007PI1007 AC104J JT426KJT424JT423K
12.97~02.03 2400 2AZ-FE ACU10W C113J A174J PI1005FR1007FS6300 AC104J JT426K
11.00~02.03 2400 2AZ-FE ACU15W C113J A174J PI1005FR1007FS6300 AC104J JT426K
12.97~02.03 3000 1MZ-FE MCU10W C111T A174J FS6304FS6300PI1001FR1007 AC104J JT424JT423K
01.97~02.03 3000 1MZ-FE MCU15W C111T A174J FS6304FS6300PI1001FR1007 AC104J JT424JT423K

TOYOTA   »   Hiace

08.95~08.01 2400 2RZ-E RCH12L C101V A185J FR1007FS6001UPI1001   JT278K
04.98~08.04 2700 3RZ-FE RCH13L C111T A185J FR1007FS6001UPI1001

TOYOTA   »   Hiace Regius

08.89~08.03 2000 1RZ-# RZH112K C111TC103J A170J FR21001FR1007FS6001UFS121JPI1001   JT278K
08.89~07.03 2000 1RZ-E RZH112V C111T A170J FR1007FS121JFR21001PI1001FS6001U   JT278K
08.03~08.04 2000 1TR-FE TRH102V C111T A170J FR1007FR21001PI1001FS6001U   JT427K

TOYOTA   »   Hiace Regius Touring

06.97~05.02 2000 3RZ-FE RCH42V C111T A185J PI1001FS6001UFR1007   JT278K
04.97~05.02 2700 3RZ-FE RCH41W C111T A185J FR1007PI1001FS6001U   JT279K
01.97~05.02 2700 3RZ-FE RCH47W C111T A185J FS6001UPI1001FR1007   JT279K

TOYOTA   »   Highlander

01.00~01.07 3000 1MZ-FE MCU20L C111T A199J FR1007PI1001FS6300 AC104J JT426K
08.07~08.10 3300 3MZ-FE MHU48L C111T A1014 FR1007FR1019PI1001FS6300 AC108J JT426K
05.09~01.13 3500 2GR-FE MHU48L OE118J A1519 FS6300FS21011FS21011AFR1007FR1019PI1001 AC108J JT426K

TOYOTA   »   Hilux

08.97~03.06 2000 1RZ-E RZN147 C111T A1006 FS3204PI1001FR1007   JT282KJT281K
08.99~08.03 2000 1RZ-E RZN152H C111T A1006 FR1007FS3204PI1001   JT281K
08.97~08.99 2000 1RZ-E RZN167 C111T A1006 FS3204PI1001FR1007
08.94~08.97 2000 3Y-E YN81 C113J A145J FR1019FR1007PI1001FS6001U
07.98~04.05 2700 3RZ-#E RZN169L C111T A1006A136J PI1001FS2005FR1007FS3204
08.97~11.05 2700 3RZ-F RZN144R C111T A1006 FS3204FR1007
08.97~02.05 2700 3RZ-F RZN149R C111T A136J FS3204FR1007PI1001   JT429KJT420K
08.97~11.05 2700 3RZ-FE RZN144L C111T A1006 FS3204FR1007FS2005
07.98~04.05 2700 3RZ-FE RZN169H C111T A1006 FS3204FR1007PI1001   JT435K
07.98~04.05 2700 3RZ-FE RZN169R C111T A1006 FR1007PI1001FS3204

TOYOTA   »   Hilux Surf

07.98~11.02 2700 3RZ-FE RZN180W C111T A171J FS6001UFR1007PI1001   JT420K
11.95~11.02 2700 3RZ-FE RZN185W C111T A171J PI1001FS6001UFR1007   JT433K
11.95~11.02 3400 5VZ-FE VZN185W C111T A173J PI1001FS6042FR1007   JT433KJT434KJT435K

TOYOTA   »   Ist

07.07~08.10 1800 2ZR-FE ZSP110 OE117J A1013 FS21003FS2100AFR1007PI1001 AC108J JT425K

TOYOTA   »   Kluger

01.00~05.07 2400 2AZ-FE ACU20W C113J A199J FR1007PI1005FS6300 AC104J JT426K
11.00~05.07 3000 1MZ-FE MCU20W C111T A199J PI1001FR1008FR1007FS8009FS6300PI1009 AC104J JT426K
01.00~08.08 3000 1MZ-FE MCU25W C111T A199J FR1008PI1009FR1007PI1001FS8009FS6300 AC104J JT426KJT422K
03.05~05.07 3300 3MZ-FE MHU28W C111T A1014 FR1007FS6300FR1019PI1001 AC104J

TOYOTA   »   Land Cruiser Prado

04.96~10.02 2700 3RZ-FE RZJ90 C111T A171J FR1007PI1001FS121JFS6001U   JT433K
04.96~10.02 3400 5VZ-FE VZJ90W C111T A173J PI1018FR1007PI1001FS6042   JT435K
04.96~10.03 3400 5VZ-FE VZJ95L C111T A1006A173J PI1001FS6042PI1018FR1007   JT433KJT435K
04.96~10.02 3400 5VZ-FE VZJ95R C111T A173JA1006 FR1007FS6042PI1001   JT435K
04.96~11.02 3400 5VZ-FE VZJ95W C111T A173J FR1007PI1001FS6042   JT433KJT435K

TOYOTA   »   Land Cruiser Prado 120

09.02~08.09 2700 2TR-FE TRJ125 OE116J A194J PI1009FR1007FS9094 AC102J JT435K
08.04~08.09 2700 2TR-FE TRJ125L C111T A194J PI1009FR1007FS9094 AC102J JT435K
09.02~08.09 2700 3RZ-FE RZJ125 C111T A194J FS9094PI1009FR1007 AC102J JT435K
09.02~08.05 3400 5VZ-FE VZJ125 C111T A194J FS9094FR1007   JT435K
09.02~08.09 4000 1GR-FE GRJ125L C114T A1011 FR1007 AC102J JT435KJT437K

TOYOTA   »   Lite/Townace

01.92~10.96 2000 3Y-EU YR30G C113JC102J A145J FR1020FS6001UFR1019FR1007PI1001   JT278K

TOYOTA   »   Lite/Townace Truck

06.99~08.07 1800 7K-E KM70 C113J A182J FR1007FS6002UPI1009   JT282KJT281K
06.99~08.07 1800 7K-E KM70/KM75 C113J A182J FR1007FS6002UPI1009   JT282K
06.99~08.07 1800 7K-E KM80 C113J A182J FR1007FS6002UPI1009

TOYOTA   »   Liteace

01.92~10.96 2000 3Y-EU YR21G C113J A145J PI1001FR1020FS6001UFR1007   JT278K

TOYOTA   »   Liteace Noah

01.96~01.07 1800 7K-E KR52V C113J A171J FR1007PI1001FS3209U   JT282K
10.96~12.01 2000 3S-FE SR40G C110J A171J PI1001FR1007FS3209U   JT427K
10.96~08.07 2000 3S-FE SR50G C110J A171J PI1001FR1007FS3209U   JT278K

TOYOTA   »   Mark II

10.92~09.96 1800 4S-FE SX90 C110J A173J PI1001FS6042FR1007FR21001 AC21001SET JT281K
09.96~10.00 2000 1G-FE GX100 C111T A195JA189J FR21001FS8013FR1007PI1001FS6042 AC21001SET JT279K
10.00~06.07 2000 1G-FE GX110 C111T A195J FS6300FR1007PI1001 AC104J JT469
10.00~06.07 2000 1G-FE GX115 C111T A195J FR1007FS6300PI1001 AC104J JT535K
08.88~10.93 2000 1G-FE GX81 C111T A155J FR21001FR1007FS6001UPI1001   JT278K
10.92~09.96 2000 1G-FE GX90 C111T A173J FS6042PI1001FR1007FR21001 AC21001SET JT279K
10.00~11.04 2500 1JZ-FSE JZX110 C111T A192J PI1003FS6300FR1007   JT436KJT428K
09.96~07.01 2500 1JZ-GE JZX100 C111T A173JA189J FR21001PI1001FR1007FS6042PI1003 AC21001SET JT419K
09.96~10.00 2500 1JZ-GE JZX105 C111T A189J FR21001PI1001FR1007FS6042 AC21001SET JT535K
10.92~09.96 2500 1JZ-GE JZX90 C111T A173J FS6042FR21001PI1001FR1007 AC21001SET JT432K
01.92~09.96 2500 1JZ-GE JZX93 C111T A173J FR21001FR1007PI1001FS6042 AC21001SET JT432K

TOYOTA   »   Mark II Wagon Blit

10.00~06.07 2000 1G-FE GX110W C111T A195J FR1007FS6300PI1001 AC104J JT469
10.00~11.04 2000 1G-FE GX115 C111T A195J FS6300PI1001FR1007 AC104J JT535K
01.02~06.07 2000 1G-FE GX115W C111T A195J FS6300FR1007PI1001 AC104J JT535K
01.00~06.07 2500 1JZ-##E JZX110 C111T A192J FS6300PI1003FR1007 AC104JAC106J JT436K

TOYOTA   »   Mark II Wagon Qualis

04.97~12.01 2200 5S-FE SXV25W C110J A174J FS6300FR1007PI1007FS6304 AC1507CSET JT389K
04.97~12.01 2500 2MZ-FE MCV25W C111T A174J FS6300FR1007PI1001FS6304 AC1507CSET JT389K

TOYOTA   »   Matrix

01.02~07.06 1800 1ZZ-FE ZZE134 C110J A1003 FR1007FS6300PI1007 AC1503 JT425K

TOYOTA   »   Origin

08.00~04.01 3000 2JZ-GE JCG17 C111T A192J PI1002FR1007FS6300 AC104J JT419K

TOYOTA   »   Paseo

04.91~08.95 1500 5E-FE EL44 C110J A172J FS6002UFS3209UPI1005FR1007FR1020PI1001FR1019   JT387K

TOYOTA   »   Porte

12.05~07.12 1500 1NZ-FE NNP15 C110J A197J FR1007FR1009FS6300 AC101J JT425K

TOYOTA   »   Previa

01.00~01.06 2400 2AZ-FE ACR30L C113J A1001 PI1005FR1007FS6300   JT426K
01.90~12.99 2400 2TZ-FE TCR10L C111T A171J FS6001UPI1001FR1007PI1004   JT279K
01.90~12.99 2400 2TZ-FE TCR20L C111T A171J FR1007PI1001PI1004FS6001U   JT279K

TOYOTA   »   Pronard

02.00~07.07 3000 1MZ-FE MCX20 C111T A174J PI1001FS6002UFR1019FS6300FR1007FS3201 AC102J JT389K

TOYOTA   »   Raum

04.03~04.11 1500 1NZ-FE NCZ25 C110J A197J FR1009FS6300FR1007 AC101J JT425K
07.97~04.03 1500 5E-FE EXZ15 C110J A179J FR1007FS6002UFR1020PI1001 AC21002SET JT387K

TOYOTA   »   Sai

01.09~08.13 2400 2AZ-FXE AZK10 C113J A1521 FS6303AFR1007FS2107PI1001 AC108J

TOYOTA   »   Scion TC

01.04~01.10 2400 2AZ-FE ANT10 C113J A1003 PI1005FR1007FS6300 AC101J JT426K

TOYOTA   »   Scion XD

06.07~07.14 1800 2ZR-FE ZSP110L OE117J A1013 FR1007PI1001   JT425K

TOYOTA   »   Sequoia

01.00~05.07 4700 2UZ-FE UCK35 C114T A194J FR1007PI1002
09.00~12.07 4700 2UZ-FE UCK45 C114T A194J FR1007PI1002   JT437KJT435K

TOYOTA   »   Sienna

08.97~01.03 3000 1MZ-FE MCL10L C111T A174J FS3209UPI1007FR1007FS6002U   JT386K

TOYOTA   »   Solara coupe (USA)

06.98~07.01 2200 5S-FE SXV20L C110J A174J PI1007FR1007FS6002U   JT390K
07.01~12.02 2400 2AZ-FE ACV20L C113JC110J A174J PI1007FR1007FS3201   JT426K
06.98~07.02 3000 1MZ-FE MCV20L C111T A174J FS3201PI1007FS6002UFR1007   JT389K
07.03~12.08 3300 3MZ-FE MCV31L C111T A199J FS6300FR1007FR1019PI1001 AC102J JT422K

TOYOTA   »   Starlet

12.89~01.96 1300 4E-FE EP82 C110J A179J FR1019PI1001FR1007PI1004FS6002U   JT385KJT387KJT390K
02.89~12.98 1300 4E-FTE EP82 C110J A179J FS6002UFR1019PI1001FR1007   JT390K

TOYOTA   »   Supra

05.93~08.02 3000 2JZ-GE JZA80 C111T A173J PI1003FR1007FS3209UFS3060   JT429K
05.93~08.02 3000 2JZ-GE JZA80L C111T A173J PI1009FS3060FR1007   JT429K

TOYOTA   »   T100

09.93~07.98 2700 3RZ-F RCK10 C111T A523J FS9100PI1001FR1007   JT429K
01.92~01.98 3000 3VZ-E VCK10 C111T A523J PI1001FR1007FS6042FR1019   JT429K
01.92~08.94 3000 3VZ-E VCK20L C111T A523J PI1001FR1007FS6042FR1019   JT431K
08.94~07.98 3400 5VZ-FE VCK11L C111T A523J FS6042FR1007PI1001   JT429K
08.94~07.98 3400 5VZ-FE VCK21L C111T A523J FS6042FR1007PI1001   JT432K

TOYOTA   »   Tercel

09.90~09.94 1500 3E-E EL42L C110J A172J FR1007PI1001FR1020FS6002UFR1019   JT390K

TOYOTA   »   Tundra

02.99~08.04 3400 5VZ-FE VCK30 C111T A194J FR1007FS3205   JT435K
02.99~08.04 3400 5VZ-FE VCK40L C111T A194J FR1007FS3205   JT435K
02.99~12.06 4700 2UZ-FE UCK30L C114T A194J PI1009FR1007PI1002FS3205   JT435KJT437K
02.99~12.06 4700 2UZ-FE UCK40 C114T A194J PI1002FS3205FR1007   JT435K
08.02~12.06 4700 2UZ-FE UCK41L C114T A194J FR1007FS3205PI1009   JT437KJT435K

TOYOTA   »   Verossa

07.01~05.04 2000 1G-FE GX110 C111T A195J FS6300PI1001FR1007 AC104J JT469
07.01~05.04 2000 1G-FE GX115 C111T A195J FS6300PI1001FR1007 AC104J JT535K
07.01~04.04 2500 1JZ-##E JZX110 C111T A192J FR1007PI1002FS6300 AC104J JT436KJT428K

TOYOTA   »   Vitz

01.99~01.05 1300 2NZ-FE NCP15 C110J A197J FR1007FS6300FR1009 AC101J JT411K
08.99~01.05 1300 2NZ-FE NCP1_ C110J A197J FR1007FS6300 AC101J JT411K

TOYOTA   »   Voltz

05.02~02.04 1800 1ZZ-FE ZZE138 C110J A1003 FR1007PI1007FS6300 AC1503 JT425K

TOYOTA   »   Will Cypha

09.02~07.05 1500 1NZ-FE NCP75 C110J A197J FR1007FS6300FR1009   JT425K

TOYOTA   »   Windom

07.01~02.06 3000 1MZ-FE MCV30 C111T A199J PI1001FS6300FR1007FR1019 AC102J

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
