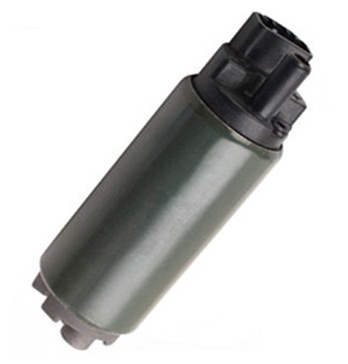

IN-TANK FUEL PUMP » PI1002
Feedback information
Specification
Length 1/ Length 2
123
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x3mm
Cross reference
TOYOTA
23221-32020
TOYOTA
23221-46120
TOYOTA
23221-46140
TOYOTA
23221-50060
TOYOTA
23221-62010
TOYOTA
23221-70360
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
LEXUS » GS400
LEXUS » IS300
| 05.00~07.05 | 3000 | 2JZGE | JCE10L | C111T | A192J | FS6300FR1007PI1002 | AC104J | JT428K |
| 07.01~07.05 | 3000 | 2JZGE | JCE10R | C111T | A192J | FR1007PI1002FS6300 | AC104J | JT428K |
TOYOTA » Altezza
| 06.01~07.05 | 3000 | 2JZ-GE | JCE10W | C111T | A192J | FR1007PI1002FS6300 | AC101J | JT428K |
| 06.01~07.05 | 3000 | 2JZ-GE | JCE15W | C111T | A192J | PI1002FS6300FR1007 | AC101J |
TOYOTA » Aristo
| 10.91~08.97 | 3000 | 2JZ-G#E | JZS147 | C111T | A180J | PI1003FS6042FR1022PI1002 | JT419K | |
| 01.97~01.05 | 3000 | 2JZ-GE | JZS160 | C111T | A192J | PI1002FS6300FS6304FR1007 | AC104J | JT428KJT419K |
TOYOTA » Caldina
TOYOTA » Camry
TOYOTA » Century
TOYOTA » Cresta
TOYOTA » Crown
| 10.91~12.95 | 3000 | 2JZ-GE | JZS133 | C111T | A178J | PI1005FR1022FS6042PI1002FR1021 | AC1514C | JT420K |
| 01.00~12.03 | 3000 | 2JZ-GE | JZS175R | C111T | A192J | FR1007PI1002FS6300 | AC104J | JT419K |
| 09.99~12.03 | 3000 | 2JZ-GE | JZS179 | C111T | A192J | FR1007FS6300PI1002 | AC106J | JT419K |
| 09.99~07.04 | 4000 | 1UZ-FE | UZS173 | C114T | A198J | FR1007PI1002FS6300 | AC106J |
TOYOTA » Crown Majesta
| 09.99~12.03 | 3000 | 2JZ-FSE | JZS175 | C111T | A192J | FR1007FS6300PI1003PI1002 | AC106J | JT428K |
| 09.99~07.04 | 3000 | 2JZ-FSE | JZS177 | C111T | A192J | PI1002FS6300FR1007 | AC106J | JT428K |
| 10.91~08.95 | 3000 | 2JZ-GE | JZS147 | C111T | A180J | FR1022PI1002FS6042 | AC21001SET | JT420KJT419K |
| 08.95~09.99 | 4000 | 1UZ-FE | UZS151 | C114T | A180J | FR1022FS6042PI1002 | AC21001SET | JT428K |
| 01.95~01.01 | 4000 | 1UZ-FE | UZS155 | C114T | A180J | FR1022PI1002FS6042 | AC21001SET | |
| 09.99~06.04 | 4000 | 1UZ-FE | UZS171 | C114T | A198J | FR1007FS6300PI1002 | AC104J | JT428K |
TOYOTA » Estima
TOYOTA » Estima Emina
| 05.90~12.99 | 2400 | 2TZ-FZE | TCR11W | C111T | A171J | FS6001UFR1007PI1002 | JT429K | |
| 08.94~12.99 | 2400 | 2TZ-FZE | TCR21W | C111T | A171J | FS6001UFR1007PI1002 | JT429K |
TOYOTA » Origin
TOYOTA » Sequoia
| 01.00~05.07 | 4700 | 2UZ-FE | UCK35 | C114T | A194J | PI1002FR1007 | ||
| 09.00~12.07 | 4700 | 2UZ-FE | UCK45 | C114T | A194J | FR1007PI1002 | JT437KJT435K |
TOYOTA » Soarer
TOYOTA » Tundra
| 02.99~12.06 | 4700 | 2UZ-FE | UCK30L | C114T | A194J | PI1002PI1009FS3205FR1007 | JT437KJT435K | |
| 02.99~12.06 | 4700 | 2UZ-FE | UCK40 | C114T | A194J | FR1007PI1002FS3205 | JT435K |
