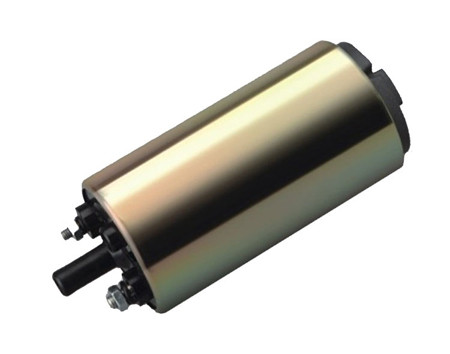

IN-TANK FUEL PUMP » PI1004
Feedback information
Specification
Length 1/ Length 2
129
Diameter 1[mm]
51
Diameter 2[mm]
43
Cross reference
HONDA
17040-SS0-930
HONDA
17708-SF1-933
HONDA
17708-SF1-A31
HONDA
17708-SG0-A30
ISUZU
8-97019-188-1
MAZDA
B630-13-350B
MAZDA
BP47-13-35ZC
MAZDA
BP51-13-350
MAZDA
E5F7-13-350B
MAZDA
F2GB-13-ZE0
MAZDA
G602-13-350B
MAZDA
G607-13-350
MAZDA
G607-13-ZE0
MAZDA
G608-13-350B
MAZDA
G616-13-350
MAZDA
JE16-13-350
MAZDA
JE47-13-35Z
MAZDA
JF01-13-350B
MITSUBISHI
MB554100
MITSUBISHI
MB598285
MITSUBISHI
MB678398
MITSUBISHI
MB831742
SUZUKI
15100-61A00
SUZUKI
15100-61A01
SUZUKI
15100-61B01
SUZUKI
15100-61BT0
TOYOTA
23220-16070
TOYOTA
23220-16084
TOYOTA
23220-16190
TOYOTA
23220-16270
TOYOTA
23220-42070
TOYOTA
23220-43070
TOYOTA
23220-70170
TOYOTA
23220-79015
TOYOTA
2322016083
TOYOTA
2322016370
TOYOTA
23221-42130
TOYOTA
23221-50020
TOYOTA
23221-50040
TOYOTA
23221-50080
TOYOTA
23221-74010
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HONDA » Prelude
LEXUS » LS400
TOYOTA » 4 Runner
| 08.88~08.97 | 2400 | 22R-E | RN110L | C111T | A171J | PI1004FS6037FR1023 | JT431K | |
| 08.88~08.97 | 2400 | 22R-E | RN110R | C111T | A171J | PI1004FS6037FR1023 | JT431K | |
| 08.84~12.89 | 2400 | 22R-EC | RN60LV- | C222VC222J | A145J | FS6037PI1004FR1023 | JT431K | |
| 01.88~12.89 | 2400 | 22R-EC | RN61 | C222VC222J | A145J | FR1023PI1004FS6037 | ||
| 08.89~11.95 | 3000 | 3VZ-E | VZN120 | C111T | A155J | FR1019PI1004FS6042 | JT429K | |
| 08.88~11.95 | 3000 | 3VZ-E | VZN130 | C111T | A155J | FR1019PI1004FS6042 | JT431K |
TOYOTA » Camry
| 06.86~12.91 | 1800 | 1SILU | SV10 | C110J | A150J | PI1004FS6031FR1023 | JT386K | |
| 08.86~08.98 | 2000 | 3S-FE | SV21L | C110J | A150J | FR1023PI1004FS6031 | JT390K | |
| 08.86~12.91 | 2000 | 3S-FE | SV25L | C110J | A150J | PI1004FR1023FS6031 | JT386K | |
| 01.87~12.91 | 2500 | 2VZ-FE | VZV21R | C111T | A161J | PI1004FS6031FR1023 | JT386K |
TOYOTA » Camry Prominent
TOYOTA » Carina
| 05.88~08.92 | 1500 | 5A-F# | AT170 | C110J | A163JA161J | FS6059FS130JFS6002UFR1023PI1004 | JT387KJT385K | |
| 05.90~08.92 | 1800 | 4S-FE | ST170 | C110J | A150J | FS6002UFR1023PI1004 | JT390K |
TOYOTA » Carina ED
TOYOTA » Carina II
TOYOTA » Celica
| 01.81~12.85 | 2000 | 1G-EU | GA61 | C222JC222V | A141J | FC180JPI1013FS6001UPI1004FR1023FS6002U | JT278K | |
| 08.85~09.87 | 2000 | 2SELC | ST161L | C106J | A161J | PI1004PI1013FR1023FS6202U | JT384KJT390K | |
| 08.85~05.98 | 2000 | 3S-FE | ST162 | C110J | A150J | FS6202UFR1023PI1004 | JT390K | |
| 10.87~08.89 | 2000 | 3S-FE | ST162C | C110J | A150J | PI1004FR1023FS6202U | JT390K | |
| 08.85~08.89 | 2000 | 3S-GELU | ST162L | C110J | A161J | FS6202UFR1023PI1004 | JT390KJT384K | |
| 10.89~09.93 | 2000 | 3S-GTE | ST185 | C113J | A161J | PI1004FS6002U | ||
| 09.89~10.93 | 2000 | 3S-GTE | ST185H | C113J | A161J | PI1004FS6002UFR1023 | ||
| 09.89~10.93 | 2000 | 3S-GTE | ST185R | C113J | A161J | FR1023FS6002UPI1004 | ||
| 01.81~12.85 | 2000 | 5M-GE | MA61L | C222VC222J | A141J | FR1023PI1004FS6001U | JT279KJT278K | |
| 01.81~07.85 | 2400 | 22REC | RA64L | C222VC222J | A108JA141J | FS6001UPI1004PI1013FS146JFR1023 | JT277K | |
| 01.83~07.85 | 2400 | 22REC | RA65L | C222VC222J | A141J | PI1004FR1023FS6001UPI1013 | JT277K |
TOYOTA » Celsior
| 11.89~10.94 | 4000 | 1UZ-FE | UCF10 | C114T | A168J | FR1023FS6042PI1004 | JT419K | |
| 11.89~10.94 | 4000 | 1UZ-FE | UCF11 | C114T | A168J | FR1023PI1004FS6042 | JT419K | |
| 10.94~08.00 | 4000 | 1UZ-FE | UCF20 | C114T | A168J | FS3210UFS8008FR1023PI1004 | AC103J | JT428K |
| 10.94~08.00 | 4000 | 1UZ-FE | UCF21 | C114T | A168J | PI1004FS3210UFS8008FR1023 | AC103J | JT419KJT428K |
TOYOTA » Chaser
TOYOTA » Corolla
TOYOTA » Cressida
| 11.84~12.92 | 2800 | 5M-GE | MX72 | C222JC222V | A155J | PI1004FS6039FR1023PI1013 | JT429KJT279K | |
| 12.88~05.92 | 3000 | 7M-GE | MX75R | C111T | A155J | PI1004FS6039FR1023 | JT429K | |
| 08.88~02.93 | 3000 | 7M-GE | MX83L | C111T | A155J | FR1023PI1004FS6039 | JT429K |
TOYOTA » Cresta
| 08.90~10.92 | 1800 | 4S-F# | SX80 | C110J | A155J | FS6002UFR21001PI1001FR1023PI1004FR1007 | JT281K | |
| 08.88~08.90 | 2000 | 1G-GTE | GX81 | C111T | A155J | FS6001UFR1023PI1004 | JT429K | |
| 10.85~08.88 | 2000 | 1G-GTEU | GX71 | C111TC222VC222J | A155J | PI1013PI1004FC182JFR1023 | JT429K |
TOYOTA » Crown
| 09.88~12.95 | 2000 | 1G-FE | GS130 | C111T | A155J | FS6001UFR1023PI1004 | JT278K | |
| 01.88~12.95 | 2000 | 1G-FE | GS131 | C111T | A155J | FS6001UPI1004FR1023 | JT278K | |
| 10.91~12.95 | 2000 | 1G-FE | GS131H | C111T | A155J | FR1023PI1004FS6001U | AC1514C | JT278K |
| 08.89~12.95 | 2000 | 1G-FE | GS131R | C111T | A155J | FS6001UFR1023PI1004 | JT278K | |
| 08.93~07.95 | 2000 | 1G-FE | GS141 | C111T | A155J | PI1004FS6001UFR1023 | AC21001SET | JT278K |
| 08.95~12.01 | 2000 | 1G-FE | GS151H | C111T | A173J | PI1004FS6042FR1023 | AC21001SET | JT427K |
| 09.87~08.89 | 2000 | 1G-GE | GS131 | C111T | A155J | FS6001UPI1004 | ||
| 09.87~10.91 | 2000 | 1G-GZE | GS131 | C111T | A155J | PI1004FS6001U | ||
| 09.87~12.95 | 2000 | 1G-GZE | GS131H | PI1004 | ||||
| 09.87~10.91 | 2000 | 1GE | GS131 | C111T | A155J | FS6001UPI1004 | ||
| 08.95~08.01 | 2500 | 1JZ-GE | JZS151 | C111T | A173J | PI1004FS6042FR1023 | AC21001SET | JT420K |
| 12.95~12.01 | 3000 | 2JZ-GE | JZS155L | C111T | A173J | PI1004FR1023FS6042 | AC21001SET | JT419KJT429K |
| 09.87~10.91 | 3000 | 7M-GE | MS135 | C111T | A155J | FR1023PI1004FS6001U | JT429K | |
| 09.87~10.91 | 3000 | 7M-GE | MS137 | C111T | A155J | FS6001UPI1004 | ||
| 08.89~10.91 | 4000 | 1UZ-FE | UZS131 | C114T | A168J | FS6042FR1023PI1004 | JT420K |
TOYOTA » Crown Comfort
| 10.02~08.08 | 2000 | 1G-FE | GBS12 | C111T | A192J | FS6042FR1023PI1004 | AC108C | JT436K |
| 08.01~08.07 | 2000 | 1G-FE | GXS12 | C111T | A195J | FS6042FR1023PI1004FS8013 | AC108C | JT427K |
TOYOTA » Crown Majesta
| 10.91~08.95 | 2500 | 1JZ-GE | JZS141 | C111T | A178J | FS6042FR1023PI1004 | AC21001SET | JT429K |
| 01.95~12.01 | 3000 | 2JZ-GE | JZS155 | C111T | A173J | FS6042FR1023PI1004 | AC21001SET | JT419K |
TOYOTA » Estima
TOYOTA » Estima Emina
TOYOTA » Hiace
| 08.03~01.05 | 2000 | 1TR-FE | TRH122K | C111T | A170J | FR1023PI1004FS6001U | JT427K | |
| 08.03~01.05 | 2000 | 1TR-FE | TRH124B | C111T | A170J | FS3217FR1023PI1004 | JT427K | |
| 08.89~01.05 | 2400 | 2RZ-E | RZH113L | C103JC111T | A170J | FR1023PI1004FS6001U |
TOYOTA » Hiace Regius
| 08.89~07.03 | 2000 | 1RZ-# | RZH124B | C103JC111T | A170J | FS121JFS6001UPI1004 | JT278K | |
| 08.89~08.95 | 2000 | 1RZ-E | RZH100G | C103J | A170J | PI1004FS6001UFR1023 | JT279K | |
| 08.89~08.03 | 2000 | 1RZ-E | RZH102V | C111TC103J | A170J | PI1004FR1023FS6001UFS121J | JT278K | |
| 08.89~07.99 | 2000 | 1RZ-E | RZH110G | C103J | A170J | FS6001UFR1023PI1004 | ||
| 12.00~08.04 | 2000 | 1RZ-E | RZH182K | C111T | A170J | FS6001UFR1023PI1004 | ||
| 08.03~08.04 | 2000 | 1TR-FE | TRH112K | C111T | A170J | FS6001UFS3217PI1004 | JT427K | |
| 08.03~08.04 | 2000 | 1TR-FE | TRH112V | C111T | A170J | FR1023PI1004FS6001U | JT427K | |
| 12.00~08.04 | 2000 | 2RZ-E | RZH183K | C111T | A170J | FR1023PI1004FS6001U | JT278K | |
| 08.89~02.08 | 2400 | 2RZ-E | RZH101G | C111TC103J | A170J | PI1004FS6001UFR1023 | JT278KJT279K | |
| 08.98~08.03 | 2400 | 2RZ-E | RZH125B | C111T | A170J | FS6001UFR1023PI1004 | ||
| 08.95~07.99 | 2400 | 2RZ-E | RZH133V | C111T | A170J | FR1023PI1004FS6001U | JT279K |
TOYOTA » Hiace Van
| 08.89~02.06 | 2000 | 1RZ-E | RZH102 | C111TC103J | A170J | FS6001UFR1023FS121JPI1004 | JT278K | |
| 08.89~08.05 | 2400 | 2RZ-E | RZH115L | C111T | A170J | FS6001UFS121JFR1023PI1004 |
TOYOTA » Hilux Surf
| 04.89~08.91 | 2000 | 3Y-E | YN130G | C102J | A145J | FS6001UFR1023PI1004 | JT431K | |
| 01.88~01.97 | 3000 | 3VZ-E | VZN130G | C111T | A155J | FS6042FR1023PI1004 | JT431K |
TOYOTA » Land Cruiser
| 08.87~01.90 | 4000 | 3F | FJ62LG | C101V | A147J | FR1023PI1004FS6001U | JT417K | |
| 08.88~01.90 | 4000 | 3F-E | FJ62G | C101V | A147J | PI1004FS121JFS6001UFR1023 | JT417K | |
| 01.90~09.92 | 4000 | 3F-E | FJ80G | C101V | A147J | PI1004FS6001U | JT417K | |
| 01.90~09.92 | 4000 | 3F-E | FJ80L | C101V | A147J | FS6001UPI1004 | JT417K | |
| 01.90~09.92 | 4000 | 3F-E | FJ80R | C101V | A147J | PI1004FS6001U | JT417K |
TOYOTA » Masterace
TOYOTA » MR2
| 11.89~08.99 | 2000 | 3S-GE | SW20R | C113J | A161J | PI1004FS6056FR1023 | JT387KJT385K | |
| 11.89~08.99 | 2000 | 3S-GTE | SW20 | C113J | A161J | FS6001UPI1004FR1023 | JT385K | |
| 01.90~06.95 | 2000 | 5S-FE | SW21L | C110J | A161J | FR1023PI1004FS6056 | JT385KJT387K |
TOYOTA » Previa
| 01.90~12.99 | 2400 | 2TZ-FE | TCR10L | C111T | A171J | FS6001UFR1007PI1001PI1004 | JT279K | |
| 01.90~12.99 | 2400 | 2TZ-FE | TCR20L | C111T | A171J | FS6001UFR1007PI1001PI1004 | JT279K |
TOYOTA » Sera
TOYOTA » Sprinter Trueno
| 08.59~06.91 | 1600 | 4A-GE | AE92 | C113J | A161JA162J | FR1024FS6044PI1013PI1004 | JT385KJT387K | |
| 05.83~05.87 | 1600 | 4A-GEU | AE86 | C106J | A132J | FR1023PI1004FS6002U | JT279K | |
| 05.87~05.91 | 1600 | 4A-GZE | AE92 | C113J | A161J | FR1024FS6044PI1004 |
